Запчасти Case IH 512 (X-14) - MULCHER ATTACHMENT, 2 AND 3 FURROW

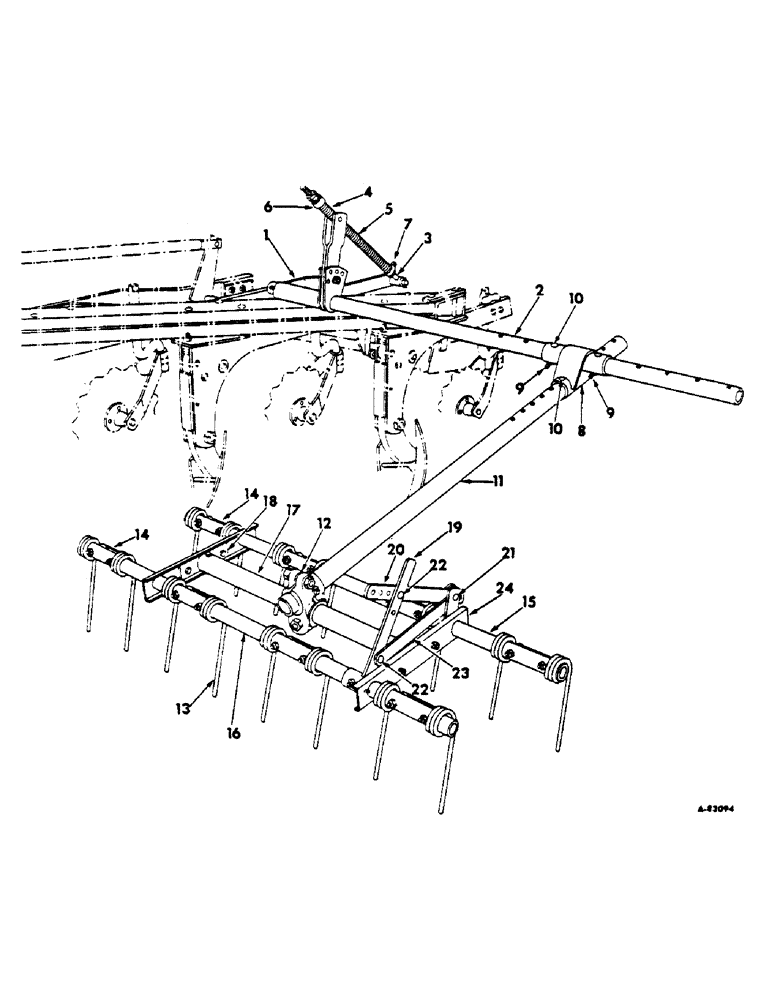

Схема запчастей Case IH 512 - (X-14) - MULCHER ATTACHMENT, 2 AND 3 FURROW

Артикул

Название

Примечание

Количество

1

480515R91

BRACKET, attaching

1шт.

18610R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

SCREW, 5/8-11 x 6 hex-hd cap

3шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 x 1-5/16 x .074 C-Z

2шт.

495-21081

WASHER,3/4"

13/16 x 2 x .122 C-Z

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

2

480517R91

ARM ASSY, horizontal, 2 furrow

1шт.

2

480516R91

ARM ASSY, horizontal, 3 furrow

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 C-Z hex-hd cap

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

1шт.

3

480518R91

ROD ASSY, pressure spring adjusting

1шт.

495-21081

WASHER,3/4"

13/16 x 2 x .122 C-Z

2шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 C-Z hex, jam

2шт.

4

480519R1

SPRING, adjusting rod cushion

1шт.

5

480520R1

SPRING, adjusting rod pressure

1шт.

6

480521R1

BUMPER, cushion spring

1шт.

7

1431BX

COLLAR CLAMP

COLLAR ASSY, pressure spring adjusting

1шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW, 1/2-13 x 3/4 sq-hd cup-pt set

1шт.

8

480522R91

BRACKET ASSY, lateral & horizontal adjusting

1шт.

9

480523R1

HAIR PIN COTTER

quick attachable, C-Z

4шт.

10

480524R1

PIN

1/2 x 2-3/4 C-Z ed-hd-dld

4шт.

11

480525R1

ARM, lateral pull

1шт.

12

480526R1

CLAMP, lateral pull arm

1шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW, 1/2-13 x 3/4 sq-hd cup-pt set

2шт.

110450

SET SCREW,Sq Hd, 1/2"-13 x 1"

Cup Pt Sq Hd, 1/2"-13 x 1"

2шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

13

480527R1

TOOTH, 6 for 2 furrow, 8 for 3 furrow

1шт.

14

480528R1

STRAP, tooth, 6 for 2 furrow, 8 for 3 furrow

1шт.

180157

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

SCREW, 7/16-14 x 2-1/2 C-Z hex-hd, 12 for 2 furrow, 16 for 3 furrow

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 McLean-fogg lock, 12 for 2 furrow, 16 for 3 furrow

1шт.

15

480529R91

BAR ASSY, tooth front, 2 furrow

1шт.

15

480530R91

BAR ASSY, tooth front, 3 furrow

1шт.

16

480531R1

BAR, tooth rear, 2 furrow

1шт.

16

480532R1

BAR, tooth rear, 3 furrow

1шт.

17

480533R91

BAR ASSY, tooth bar attaching, 2 furrow

1шт.

17

480534R91

BAR ASSY, tooth bar attaching, 3 furrow

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

2шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-16 x 2-1/2 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

18

480535R91

INSERT ASSY, attaching bar

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

19

480536R92

HANDLE ASSY

1шт.

413-736

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

SCREW, 7/16-14 x 2-1/4 C-Z hex-hd cap

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 McLean-fogg lock

1шт.

20

480537R1

LINKAGE, handle reverse

1шт.

21

Q3542

HEADED PIN,11.1mm OD x 38.1mm L

PIN, 7/16 x 1-1/2 std-hd

1шт.

496-21047

WASHER

15/32 x 59/64 x .015 C-Z

1шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

1шт.

22

PO15174

PIN, 7/16 x 1 std-hd 7/16" x 1"

2шт.

496-21047

WASHER

15/32 x 59/64 x .015 C-Z

2шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

2шт.

23

480538R1

REACH, handle

1шт.

24

480539R1

RAIL, side

2шт.

137258

COTTER PIN

3/16" x 1 3/4"

4шт.
