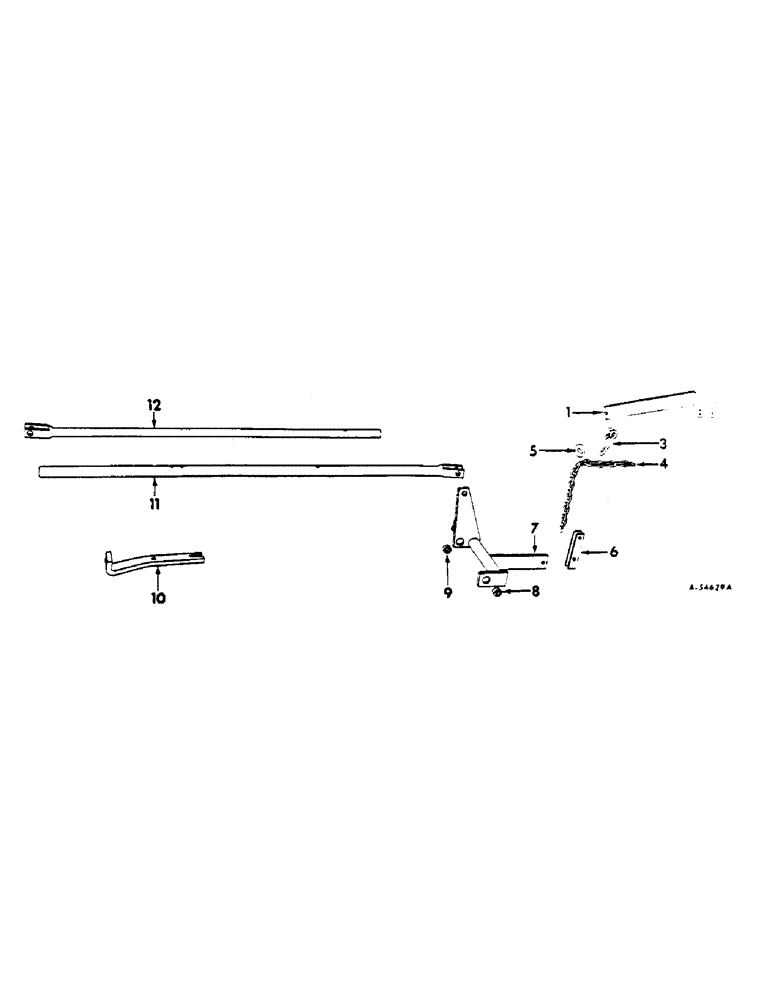

Запчасти Case IH 512 (X-13) - TRANSPORT WHEEL ROCKSHAFT AND LIFT ROD

1

526756R91

ARM, hitch rockshaft lift

1шт.

5/8 NUT

2шт.

5/8 x 2 CAP SCREW

2шт.

5/8 LOCK WASHER

2шт.

2

(Not used in this application)

1шт.

3

526571R1

CLEVIS, chain

1шт.

618964R1

5/8 x 2-1/8 DLD-STD-HD PIN

1шт.

520175R1

CLIP

QUICK-ATTACHABLE COT PIN

1шт.

21/32 x 1-1/4 x 16 GA WASHER

1шт.

4

526446R91

CHAIN, rockshaft lift, 18 in. links, 5/16 welded chain

1шт.

5

PO26868A

WASHER, chain indicator

1шт.

6

526435R1

CLIP, chain

1шт.

526443R1

1/2 x 1-1/2 HDLS PIN

1шт.

3/16 x 1 SELF-OPENING COT PIN

2шт.

7

526399R91

ROCKSHAFT, lifting, 16 in. plow

1шт.

7

526398R91

ROCKSHAFT, lifting, 14 in. plow

1шт.

3/4 NUT

2шт.

3/4 x 2-1/2 CAP SCREW

2шт.

3/4 LOCK WASHER

2шт.

8

526441R1

BUSHING, 1-1/4 x 11/16 rockshaft

1шт.

9

526442R1

BUSHING, 1-1/4 x 9/16 rockshaft

1шт.

10

526445R1

STOP, transport axle

1шт.

526453R1

5/8 x 6 CRG BOLT

2шт.

5/8 LOCK WASHER

2шт.

218443

NUT

3/4 JAM NUT

1шт.

3/4 x 2 CAP SCREW

1шт.

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

BEAM UNIT WASHER

1шт.

11

526396R91

PIPE, lift

1шт.

PG141

PIN

1/2 x 2 DLD-STD-HD PIN

1шт.

Q1505

WASHER

3/4 x 2 DLD-STD-HD PIN

1шт.

3/16 x 1 SELF-OPENING COT PIN

1шт.

1/4 x 1-1/4 SELF-OPENING COT PIN

1шт.

12

526504R91

ROD, lift

1шт.

Q1335

AXLE PIN

3/4 x 2 DLD-STD-HD PIN

1шт.

1/4 x 1-1/4 SELF-OPENING COT PIN

1шт.
