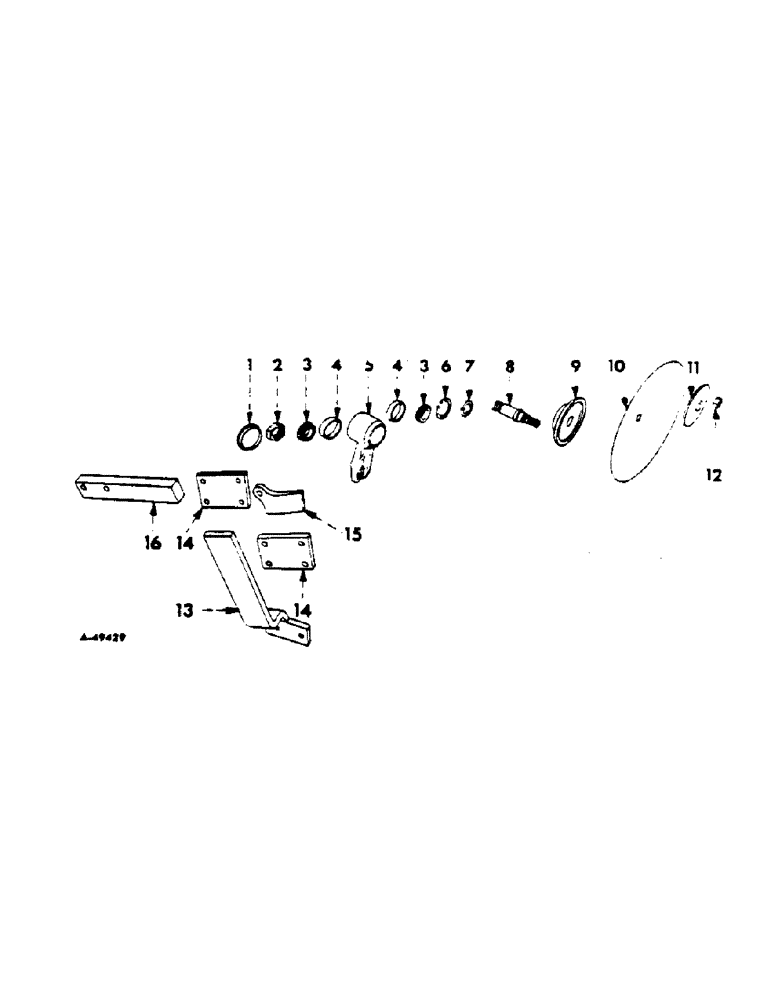

Запчасти Case IH 512 (X-10) - DISK COLTER JOINTERS, RIGID STANDARD

1

518842R1

CAP

bearing housing

1шт.

2

519250R1

SLOTTED NUT

1-1/4 unf

1шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, cone

2шт.

4

651817R1

BEARING CUP

BEARING, cup

2шт.

5

521779R1

HOUSING, bearing

1шт.

6

518820R91

OIL SEAL

bearing oil

1шт.

7

518654R1

SPACER

oil seal

1шт.

8

521780R1

SPINDLE

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

2шт.

9

519084R1

HUB

BEARING, spindle

1шт.

10

519093R1

DISC

DISK, 16 in. dia

1шт.

11

519086R2

SUPPORT

disk

1шт.

12

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8 unf

1шт.

13

523974R12

STANDARD ASSY

1шт.

17550R1

BOLT,Hex, 1/2"-13 x 2 1/4", G2

1/2 x 2-1/4 MACH BOLT

2шт.

1/2 LOCK WASHER

1шт.

1/2 NUT

2шт.

14

524584R1

PLATE, clamp

2шт.

1/2 NUT

4шт.

1/2 x 4-1/2 CAP SCREW

4шт.

15

524583R1

BLOCK, adjusting

1шт.

16

(Not used in this application)

1шт.
