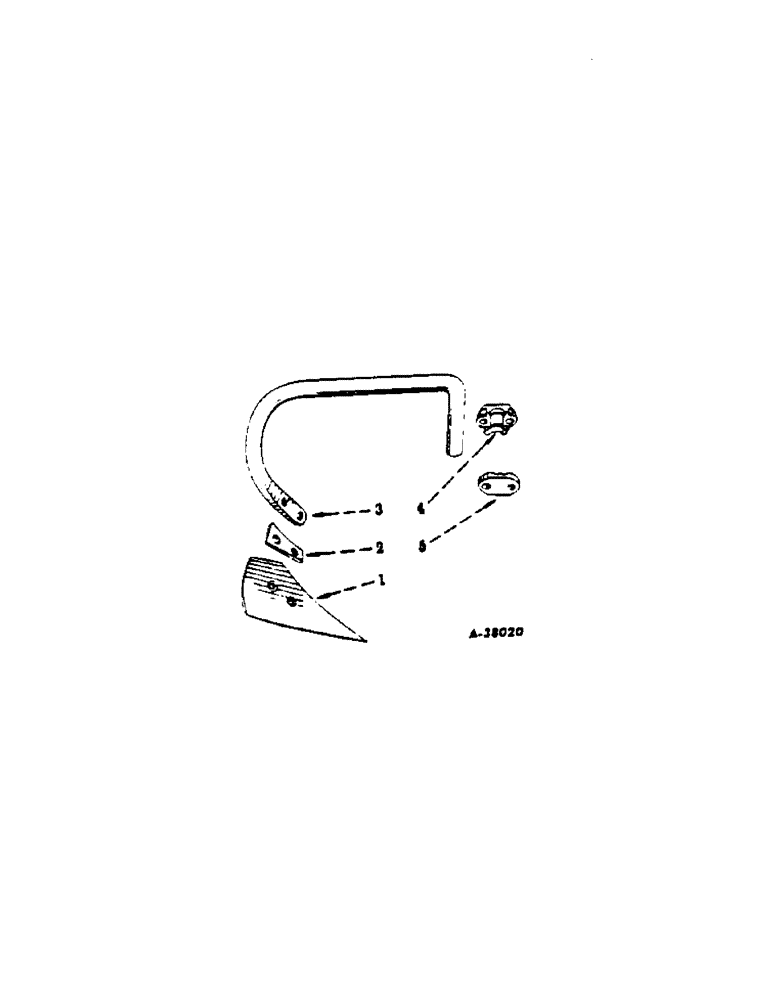

Запчасти Case IH 512 (X-07[A]) - JOINTER, ONE PIECE BLADE, ONE PER FURROW

1

510576R11

BLADE W/BOLTS, steel

1шт.

15585R1

BOLT

3/8 x 1-1/2 NO. 3 PLOW BOLT

4шт.

3/8 NUT

4шт.

Q1505

WASHER

13/32 x 1 x 16 GA WASHER

1шт.

2

210572R1

BLOCK, adjusting

1шт.

3

520787R1

SHANK

1шт.

4

519343R1

BLOCK, jointer

1шт.

5

519342R1

CAP, jointer block

1шт.

1/2 x 2-3/4 CRG BOLT

2шт.

1/2 NUT

2шт.
