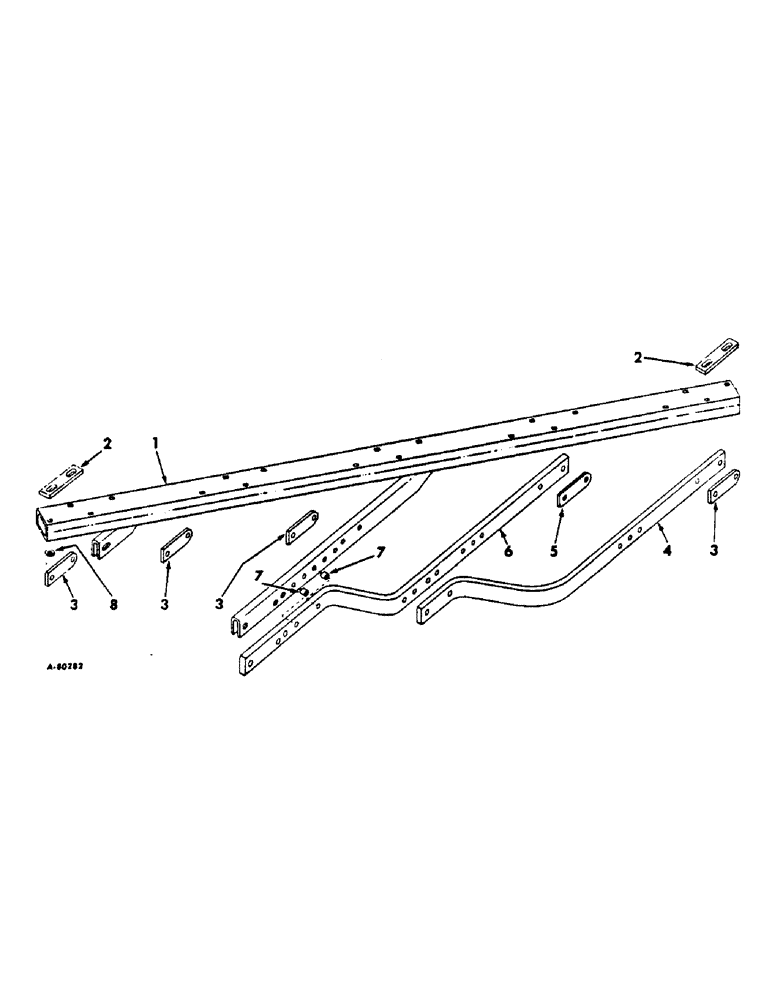

Запчасти Case IH 511 (W-02) - MAIN FRAME

1

478448R91

FRAME ASSY, main, 14 in. plow

1шт.

1

478453R91

FRAME ASSY, main, 16 in. plow

1шт.

519724R2

5/8 x 5-1/2 CRG BOLT

16шт.

5/8 NUT

16шт.

5/8 LOCK WASHER

16шт.

2

524469R1

STRAP, main frame reinforcing

2шт.

5/8 x 6 CRG BOLT

4шт.

5/8 NUT

4шт.

5/8 LOCK WASHER

4шт.

3

524465R1

SUPPORT

SPACER, trip beam unit

4шт.

5/8 NUT

8шт.

5/8 x 3-1/4 CAP SCREW

8шт.

5/8 LOCK WASHER

8шт.

4

526439R1

RAIL, frame fifth, 14 in. plow

1шт.

5/8 NUT

2шт.

5/8 x 3 CAP SCREW

2шт.

5/8 LOCK WASHER

2шт.

4

526438R1

RAIL, frame fifth, 16 in. plow

1шт.

5/8 NUT

2шт.

5/8 x 3 CAP SCREW

2шт.

5/8 LOCK WASHER

2шт.

5

524597R1

BAR

SPACER, trip beam unit, fourth rail

1шт.

5/8 NUT

2шт.

5/8 x 3-1/4 CAP SCREW

2шт.

5/8 LOCK WASHER

2шт.

6

478456R1

RAIL, frame fourth, 14 in. plow

1шт.

5/8 NUT

2шт.

5/8 x 4-1/4 CAP SCREW

2шт.

5/8 LOCK WASHER

2шт.

6

478457R1

RAIL, frame fourth, 16 in. plow

1шт.

5/8 NUT

2шт.

5/8 x 4-1/4 CAP SCREW

2шт.

5/8 LOCK WASHER

2шт.

7

522470R1

SPACER, channel

2шт.

8

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

beam unit

15шт.
