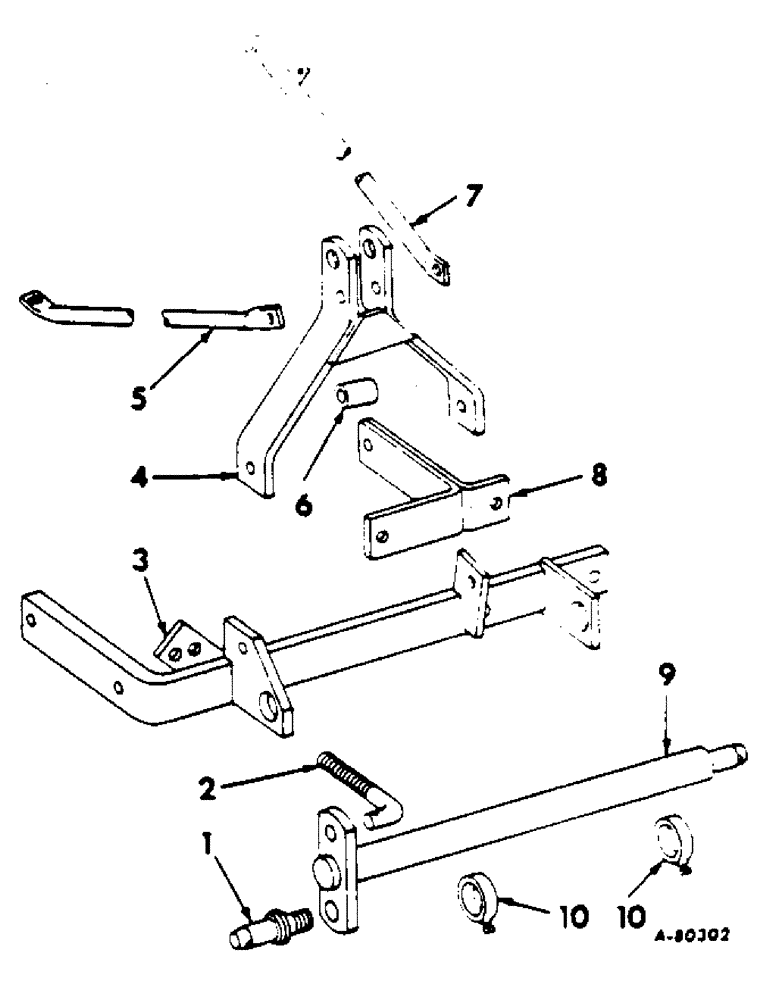

Запчасти Case IH 511 (W-10) - THREE-POINT HITCH - CATEGORY II

1

472790R1

STUD

lower

1шт.

427359

NUT,1 1/8"-12, G5

1-1/8NF C-Z NUT

1шт.

492-11112

LOCK WASHER,1 1/8"

1-1/8 C-Z LOCK WASHER

1шт.

2

473679R1

ROD,7/8" - 9 x 8.6"

BOLT, landing

1шт.

425-1414

JAM NUT,Jam, 7/8"-9, G5

2шт.

13095R1

PIN,1/4" x 1 1/4"

Split (Cotter), 1/4" x 1 1/4"

1шт.

3

473671R91

FRAME ASSY, front

1шт.

425-1012

NUT,3/4"-10, G5

3/4 NUT

2шт.

271615

VALVE

3/4 x 3 CAP SCREW

1шт.

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

3/4 x 3-1/4 CAP SCREW

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 GA WASHER

2шт.

4

478460R91

SUPPORT ASSY, hitch upper link

1шт.

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

3/4UNF x 2-3/4 CAP SCREW

2шт.

218197

NUT,3/4"-16, G5

3/4UNF NUT

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

5

473687R1

BRACE, support RH, 14 in.

1шт.

526453R1

5/8 x 6 CRG BOLT

1шт.

102639

NUT,5/8"-11, G5

1шт.

218197

NUT,3/4"-16, G5

3/4 NUT

1шт.

18289R1

3/4UNF x 5-1/4 CAP SCREW

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

5

473689R1

BRACE, support RH, 16 in.

1шт.

526453R1

5/8 x 5-3/4 CRG BOLT

1шт.

102639

NUT,5/8"-11, G5

1шт.

218197

NUT,3/4"-16, G5

3/4 NUT

1шт.

18289R1

3/4UNF x 5-1/4 CAP SCREW

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

6

462425R1

SPACER

support

1шт.

7

478462R91

BRACE ASSY, support LH, 14 in.

1шт.

526453R1

5/8 x 5-3/4 CRG BOLT

2шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

7

478465R91

BRACE ASSY, support LH, 16 in.

1шт.

526453R1

5/8 x 5-3/4 CRG BOLT

2шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

473680R91

BRACKET ASSY, front frame

1шт.

220081

NUT

3/4 NUT

4шт.

271624

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

3/4 x 2-3/4 CAP SCREW

2шт.

271620

BOLT

3/4 x 4-1/4 CAP SCREW

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

9

473683R92

CROSSBAR ASSY

1шт.

10

PO1887X

COLLAR

locating

2шт.

110450

SET SCREW,Sq Hd, 1/2"-13 x 1"

Cup Pt Sq Hd, 1/2"-13 x 1"

2шт.

392002R91

PARTS ACCESSORY, bushing & pin adapter, for use w/category II implements when mounted on category III three point hitch, consists of

1шт.

392911R1

BALL, upper link rear

1шт.

374132R1

PIN

upper link implement

1шт.

392004R1

SPACER,29.08mm ID x 36.2mm OD x 64.8mm L

lower link hitch point

2шт.
