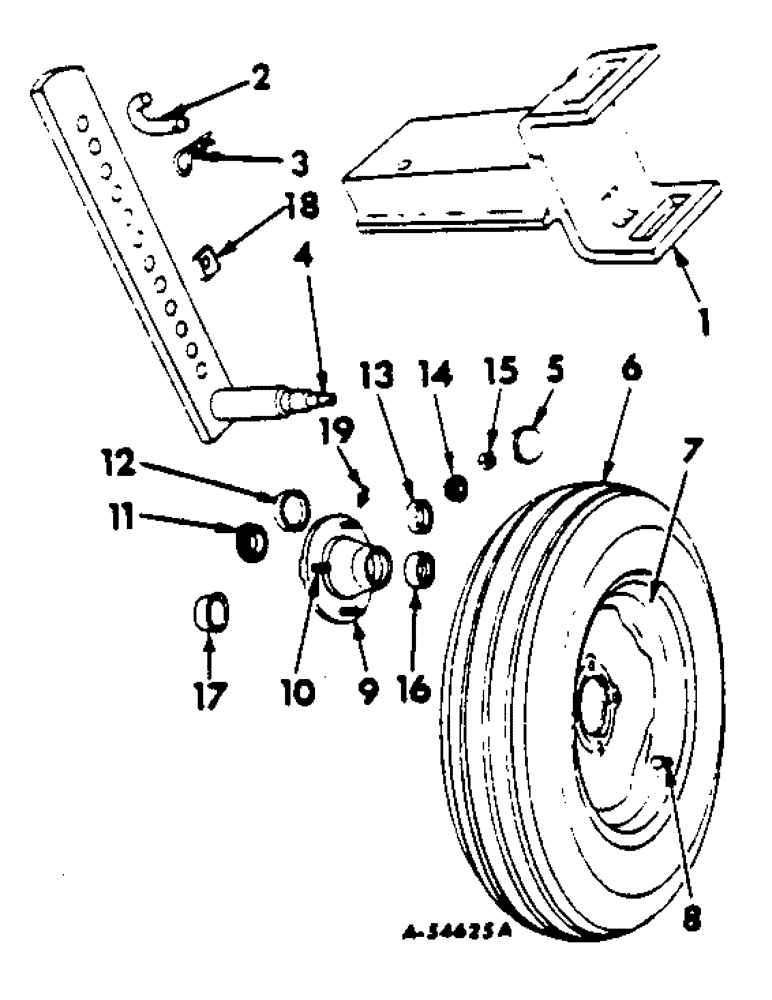

Запчасти Case IH 511 (W-08) - GAUGE WHEEL AND BRACKET

1

526503R91

BRACKET

1шт.

.

5/8 NUT

1шт.

.

5/8 x 7-1/2 CAP SCREW

1шт.

.

5/8 LOCK WASHER

1шт.

2

520620R1

AXLE PIN

PIN, retaining

1шт.

3

520175R1

CLIP

PIN, quick-attachable cot

1шт.

4

467474R92

SUPPORT ASSY.

STANDARD W/SPINDLE

1шт.

.

1/8 x 1-1/4 COT PIN

1шт.

.

472634R1

WASHER

25/32 x 1-3/4 x 11 GA WASHER

1шт.

5

651194R1

CAP

hub

1шт.

6

TIRE, ribbed implement pneumatic, 6.70 x 15

1шт.

6

TIRE, pneumatic, 7.00 x 14 in.

1шт.

6

TIRE, pneumatic, 7.50 x 14 in.

1шт.

6

TIRE, pneumatic, 8.00 x 14 in.

1шт.

7

455169R92

WHEEL

15 x 4-1/2 KB, for 6.70 x 15 tire

1шт.

7

463036R1

WHEEL (STEERING)

WHEEL, 14 x 5 KB, for 14 tire

1шт.

8

TUBE, pneumatic, 6.70 x 15

1шт.

8

TUBE, pneumatic, 7.00 x 14

1шт.

8

TUBE, pneumatic, 7.50 x 14

1шт.

8

TUBE, pneumatic, 8.00 x 14

1шт.

9

472220R11

HUB

ASSY, wheel

1шт.

.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2UNF x 5/16 CONICAL-HD BOLT

4шт.

10

(Not used this application)

1шт.

11

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, inner cone

1шт.

12

651817R1

BEARING CUP

BEARING, inner cup

1шт.

13

651814R1

BEARING CUP

BEARING, outer cup

1шт.

14

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, outer cone

1шт.

14

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

15

69442D

NUT

3/4 unf slt

1шт.

16

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil

1шт.

17

472222R1

SLEEVE

oil seal wear

1шт.

18

473155R1

SPACER, gauge wheel bracket

1шт.

19

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 str lub

1шт.
