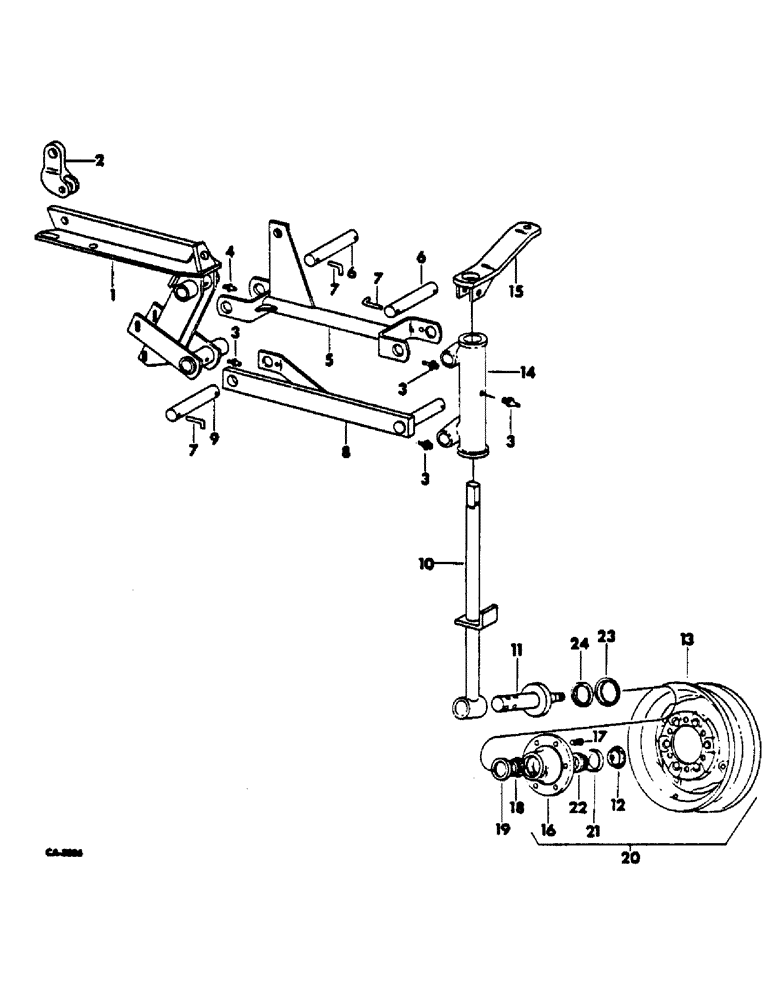

Запчасти Case IH 510 (AS-05) - STEERABLE WHEEL UNIT

1

56609C1

MOUNTING ASSY, rear

1шт.

471370R1

BOLT,Hex, 3/4" - 10 x 2 1/4"

SCREW, 3/4-10 x 2-1/4 hex-hd cap

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 znd hex. jam

1шт.

18610R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

SCREW, 5/8-11 x 6 hex-hd cap

2шт.

17171R1

SCREW,Hex, 5/8" - 11 x 6 1/2", Gr 5

5/8-11 x 6-1/2 hex-hd cap

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 CDP distorted thd lock

5шт.

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

beam unit

3шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

SCREW, 5/8-11 x 4-1/4 znd hex-hd cap

1шт.

21722R1

BOLT,Hex, 5/8" - 11 x 5 1/4", Gr 5

SCREW, 5/8-11 x 5-1/4 znd hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

369936R1

WASHER

21/32 x 1-1/4 x 11 ga

4шт.

2

56611C1

ANCHOR, cyl

1шт.

21671R1

PIN,3/4" x 2 1/8"

3/4 x 2-1/8 znd std-hd

1шт.

21645R1

PIN, 1/4 x 1-3/8 C-Z cot.

1шт.

3

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF2 str-lub

4шт.

4

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 NS 3/4 taper per foot per deg

1шт.

5

471315R91

ARM ASSY, upper

1шт.

6

471322R1

PIN

upper arm

2шт.

608700R1

WASHER

1-9/32 x 2 x 16 ga znd

3шт.

21655R1

COTTER PIN,3/8" x 1 7/8"

Pin, Split (Cotter), 3/8" x 1 7/8"

2шт.

7

471323R1

LINCH PIN

PIN, pivot pin lock

3шт.

8

471324R11

ARM ASSY, lower

1шт.

608700R1

WASHER

1-9/32 x 2 x 16 ga C-Z

1шт.

21655R1

COTTER PIN,3/8" x 1 7/8"

Pin, Split (Cotter), 3/8" x 1 7/8"

1шт.

9

471327R1

PIN

lower arm front

1шт.

608085R1

WASHER

1-13/32 x 2 x 16 ga znd

3шт.

21655R1

COTTER PIN,3/8" x 1 7/8"

Pin, Split (Cotter), 3/8" x 1 7/8"

1шт.

10

471328R11

AXLE ASSY, rear

1шт.

11

471331R21

SPINDLE

ASSY, rear wheel

1шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

1шт.

69442D

NUT

3/4-16 slt hex.

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 znd hex-hd cap

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 CDP distorted thd lock

1шт.

625688R1

WASHER

2-1/32 x 3 x 16 ga

1шт.

12

663908R1

CAP

hub

1шт.

13

463034R1

RIM

WHEEL, 14 x 5KB, 1-1/8 in. offset 6 bolt

1шт.

14

471332R1

HOUSING, rear axle

1шт.

15

486685R2

ARM ASSY, rear steering, for unit A

1шт.

15

471333R21

ARM ASSY, rear steering, for units B thru H

1шт.

271798

BOLT

SCREW, 3/4-16 x 3-1/4 znd hex-hd cap

1шт.

21626R1

LOCK NUT,3/4"-16

NUT, 3/4-16 znp nylon insert

1шт.

23190R1

NUT, 3/4 CDP hex. lock

1шт.

16

465493R2

HUB

wheel

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 UNF lub

1шт.

17

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel hub

6шт.

18

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, inner roller cone

1шт.

19

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner roller

1шт.

20

(Not used this application)

1шт.

21

371883R1

BEARING CUP

Wheel outer roller

1шт.

22

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Assy, Wheel outer roller

1шт.

23

667564R1

RING

wear sleeve

1шт.

24

667599R91

OIL SEAL

oil

1шт.
