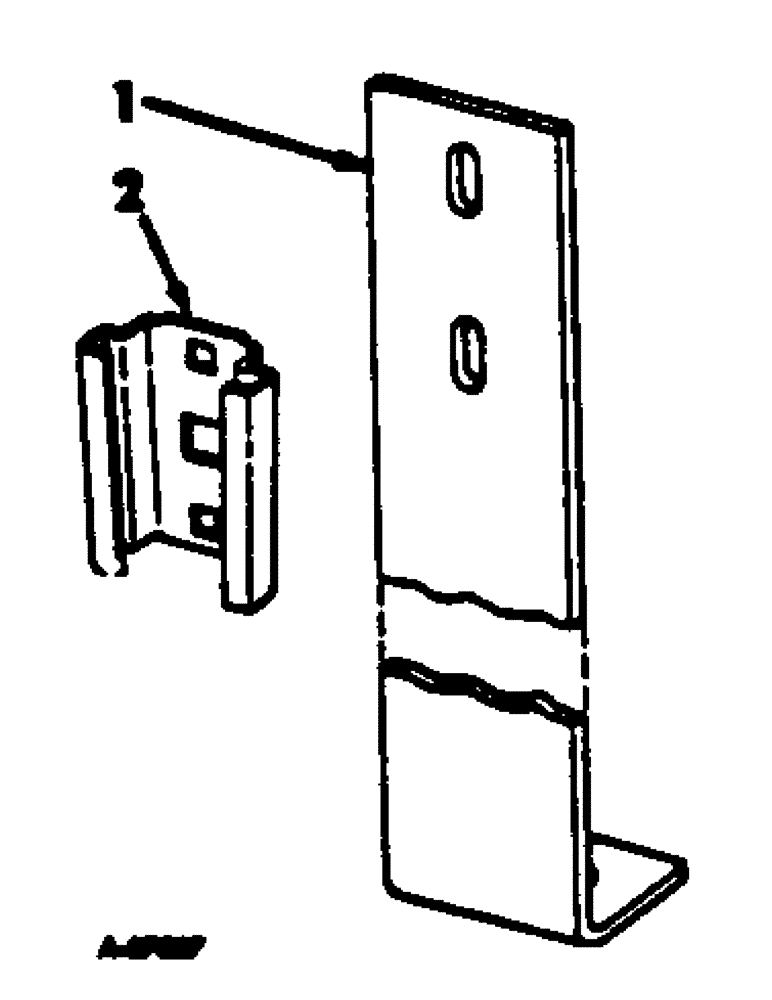

Запчасти Case IH 510 (AS-15) - SAFETY LAMP SOCKET UNIT, PRODUCT GRAPHIC

1

521996R3

SUPPORT

BRACKET, safety lamp

1шт.

2

398976R1

BRACKET

SOCKET, safety lamp bracket

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16-18 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

547497R91

PACKAGE

model designation, consists of

1шт.

56523C1

PRODUCT GRAPHIC, model designation (NSS)

1шт.

547494R91

DECAL

PACKAGE, IH trademark, consists of

1шт.

2752017R1

PRODUCT GRAPHIC

IH (NSS)

1шт.

25192R1

PRODUCT GRAPHIC, International

1шт.

547495R91

DECAL

PACKAGE, International

1шт.

2753544R1

PRODUCT GRAPHIC, turning instructions

1шт.

2750856R2

PRODUCT GRAPHIC

bottom instructions

1шт.
