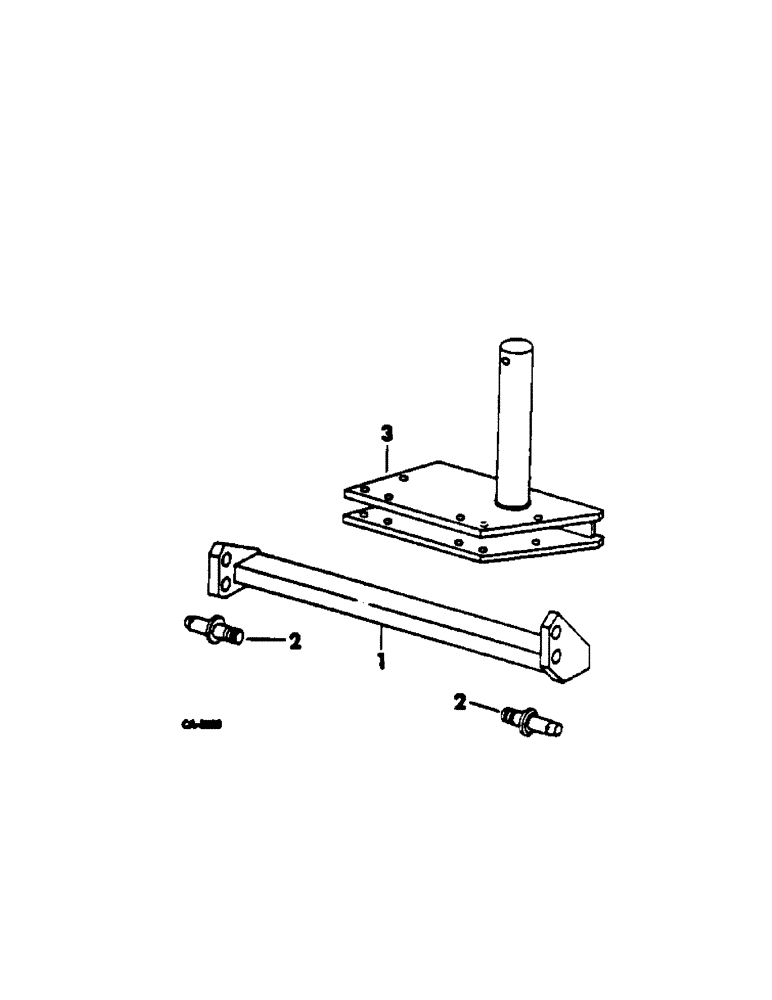

Запчасти Case IH 510 (AS-13[A]) - THREE-POINT HITCH

1

541158R1

BAR

CROSSBAR ASSY

1шт.

2

472790R1

STUD

hitch lower

1шт.

427359

NUT,1 1/8"-12, G5

1-1/8-12 znd hex.

2шт.

492-11112

LOCK WASHER,1 1/8"

WASHER, 1-1/8 znd med lock

2шт.

271778

SCREW,Hex, 3/4"-10 x 3 3/4", G5

3/4-10 x 3-3/4 znd hex-hd cap

6шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

280954

NUT,3/4"-10, G5

1шт.

3

541106R1

PIVOT

ASSY, drawbar

1шт.

21386R1

BOLT,3/4" x 4 1/4", Gr 8

SCREW, 3/4-10 x 4-1/4 znd type 8 hex hd cap

1шт.

22244R1

LOCK NUT

3/4-10 nylon zn insert

1шт.
