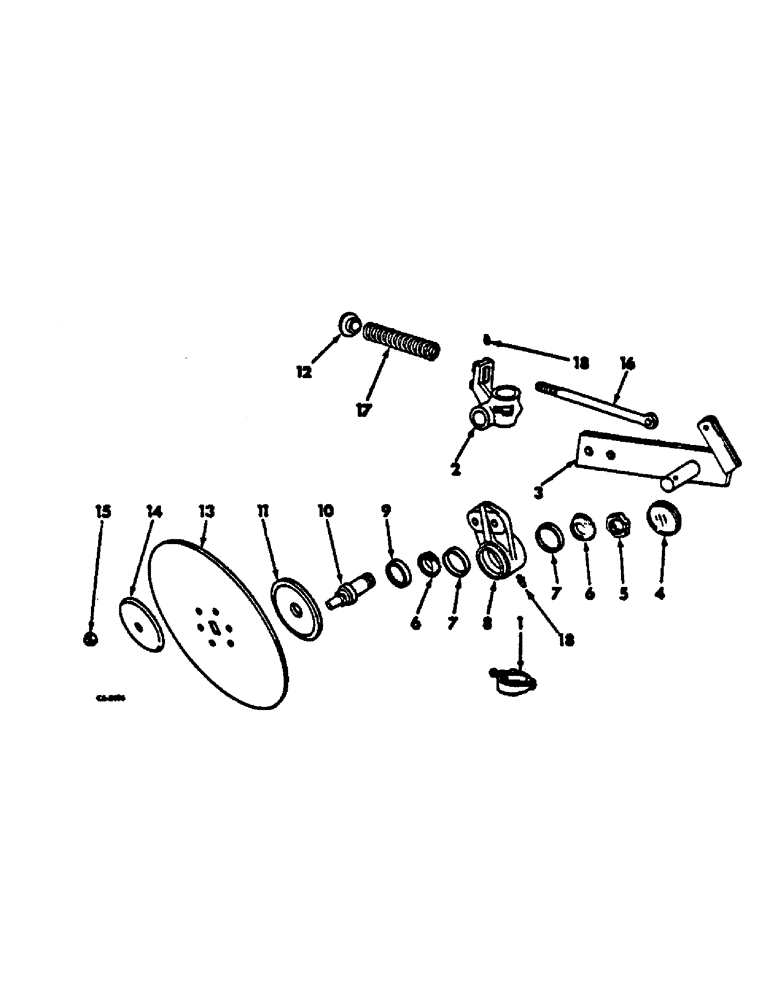

Запчасти Case IH 510 (AS-09) - ROLLING COLTER, CUSHION TYPE, ONE PER FURROW

1

523345R21

COLLAR CLAMP

COLLAR ASSY, stop

1шт.

20080R1

SET SCREW

1/2-13 x 1-1/4 C-Z sq-hd cup, pt set

1шт.

2

492815R3

BUSHING

colter

1шт.

3

492812R1

ARM

ASSY, colter

1шт.

4

518842R1

CAP

hub

1шт.

5

519250R1

SLOTTED NUT

1-1/4-12 slt hex.

1шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, housing cone

2шт.

7

651817R1

BEARING CUP

BEARING HOUSING CUP

2шт.

8

523019R3

HOUSING

RH brg

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

9

523027R91

OIL SEAL

oil

1шт.

10

543998R1

SPINDLE

colter

1шт.

137214

COTTER PIN

1/8" x 1-3/4"

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

427646

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 znd slt. hex.

1шт.

11

523020R2

SUPPORT ASSY.

SUPPORT, inside blade

1шт.

12

487697R1

CENTERING RING

SPACER, spring plug

1шт.

13

523025R2

HALF BLADE

BLADE, 17 in. plain colter

1шт.

13

469191R3

BLADE

17 in. rippled colter

1шт.

13

474251R1

DISC

BLADE, 20 in. plain

1шт.

13

474252R2

COULTER

RIPPLED 20"

1шт.

14

523021R1

WASHER

SUPPORT, outside blade

1шт.

15

427637

SLOTTED NUT,3/4"-10, G5

NUT, 3/4-10 C-Z slt-hex.

1шт.

16

480344R1

EYEBOLT,Spring, 5/8" - 11 x 299.70mm

BOLT, spring eye

1шт.

21806R1

HEADED PIN,1/2" x 1 3/4"

PIN, 1/2 x 1.750 hd type 1

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

21226R1

WASHER

1-9/32 x 2 x 11 ga C-Z

1шт.

17

487698R1

SPRING

cushion, 13-1/2 coils

1шт.

18

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF str lub

2шт.
