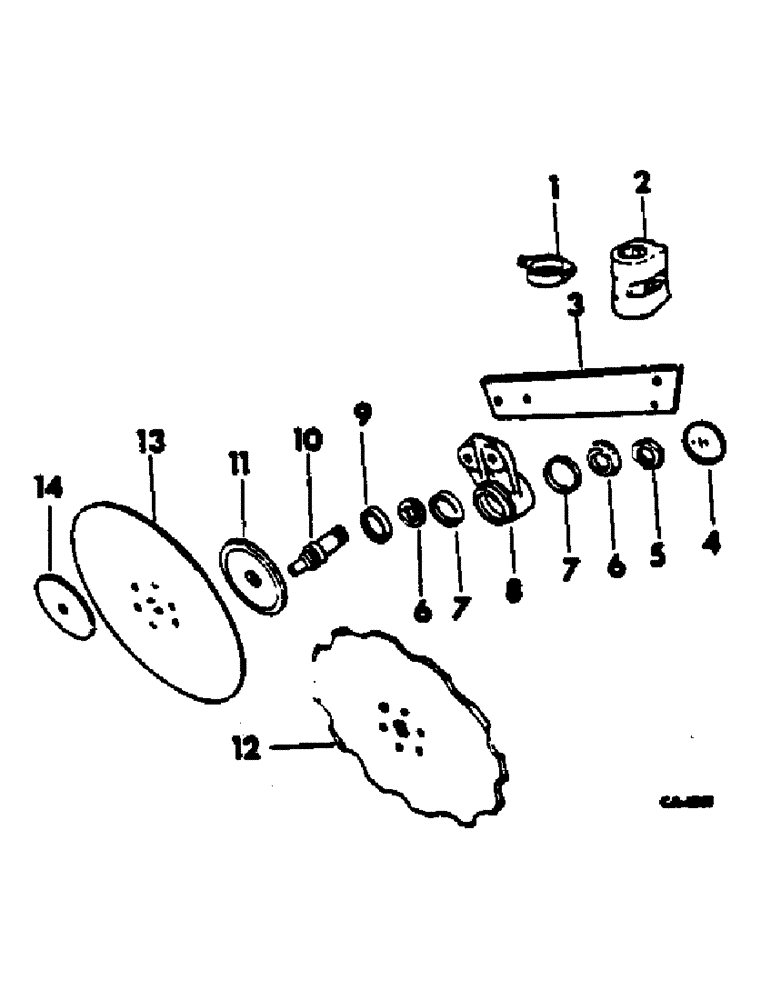

Запчасти Case IH 510 (AS-08) - ROLLING COLTER, HEAVY DUTY, ONE PER FURROW

1

523345R21

COLLAR CLAMP

COLLAR ASSEMBLY, stop

1шт.

20080R1

SET SCREW

1/2-13 x 1-1/4 C-Z sq-hd cup-pt set

1шт.

2

462273R2

SUPPORT ASSY.

BEARING, colter arm R.H.

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 znd hex-hd cap

1шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

181672

BOLT,Hex, 7/16" - 20 x 1 3/4", Gr 5

SCREW, 7/16-20 x 1-3/4 C-Z hex-hd cap

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

NLS

NO LONGER SERVICED

7/16-20 C-Z hex.

1шт.

3

462274R1

BAR

ARM, colter, for 17 in. blade

1шт.

4

518842R1

CAP

hub

1шт.

5

519250R1

SLOTTED NUT

1-1/4 -12 slt hex.

1шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, housing cone

2шт.

7

651817R1

BEARING CUP

BEARING, housing cup

2шт.

8

523019R3

HOUSING

R.H. bearing

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 C-Z hex-hd cap

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

9

523027R91

OIL SEAL

housing oil

1шт.

10

543998R1

SPINDLE

colter

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

137214

COTTER PIN

1/8" x 1-3/4"

1шт.

427646

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 znd

1шт.

11

523020R2

SUPPORT ASSY.

SUPPORT, inside blade

1шт.

12

469191R3

BLADE

17 in. rippled colter

1шт.

12

474252R1

COULTER

BLADE, 20 in. rippled colter

1шт.

13

523025R2

HALF BLADE

BLADE, 17 in. plain colter

1шт.

14

523021R1

WASHER

SUPPORT, outside blade

1шт.
