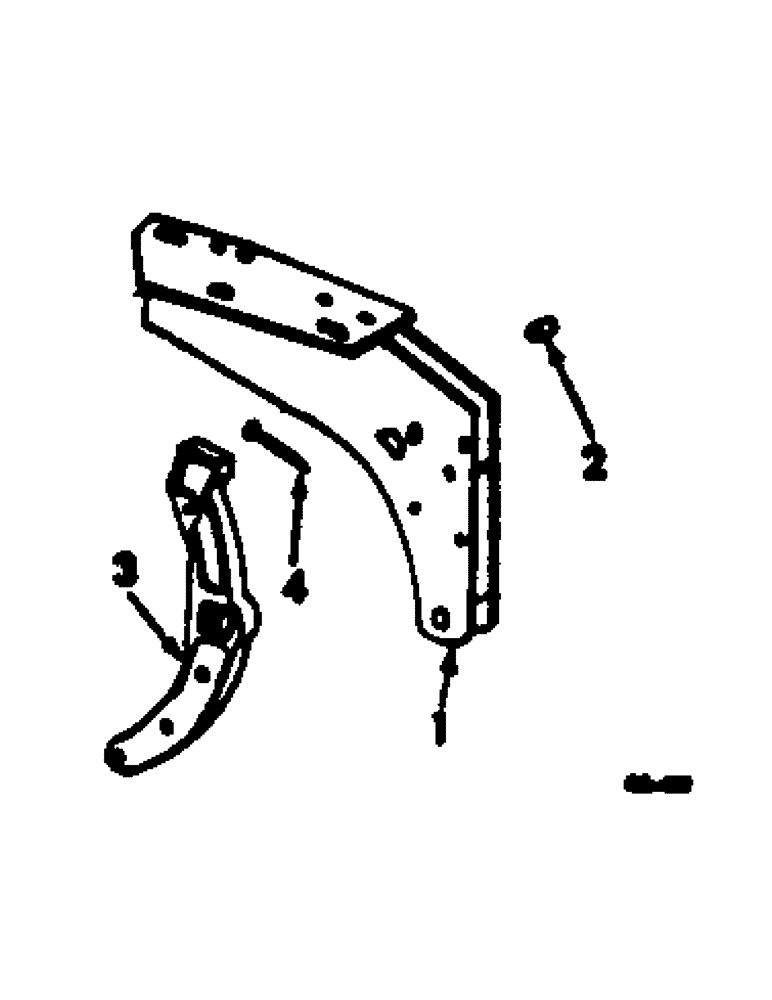

Запчасти Case IH 510 (AS-07) - TRIP BEAM, SHEAR PIN, FOR UNITS C AND F, ONE PER FURROW

1

56182C1

SIDE ASSY.

PLATE ASSY, side

1шт.

2

522432R2

SPACER

STOP AND SPACER, beam

1шт.

19544R1

BOLT,Hex, 5/8"-11 x 3 1/4", G2

5/8 x 3-1/4 C-Z hex-hd mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

3

468843R1

BEAM, plow

1шт.

465799R1

BOLT (SPREADER),Hex, 1" x 3 1/2", Drilled

BOLT, 1 x 3-1/2 hex-hd drld pivot mach

1шт.

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1.062 x 2 x .108

1шт.

427652

SLOTTED NUT,1"-14, G5

NUT, 1-14 C-Z slt-hex

1шт.

137258

COTTER PIN

3/16" x 1 3/4"

1шт.

4

468868R2

PIN,14.28mm OD x 83.31mm L

trip beam shear

2шт.

21628R1

PIN

1/8 x 3/4 C-Z cot.

2шт.
