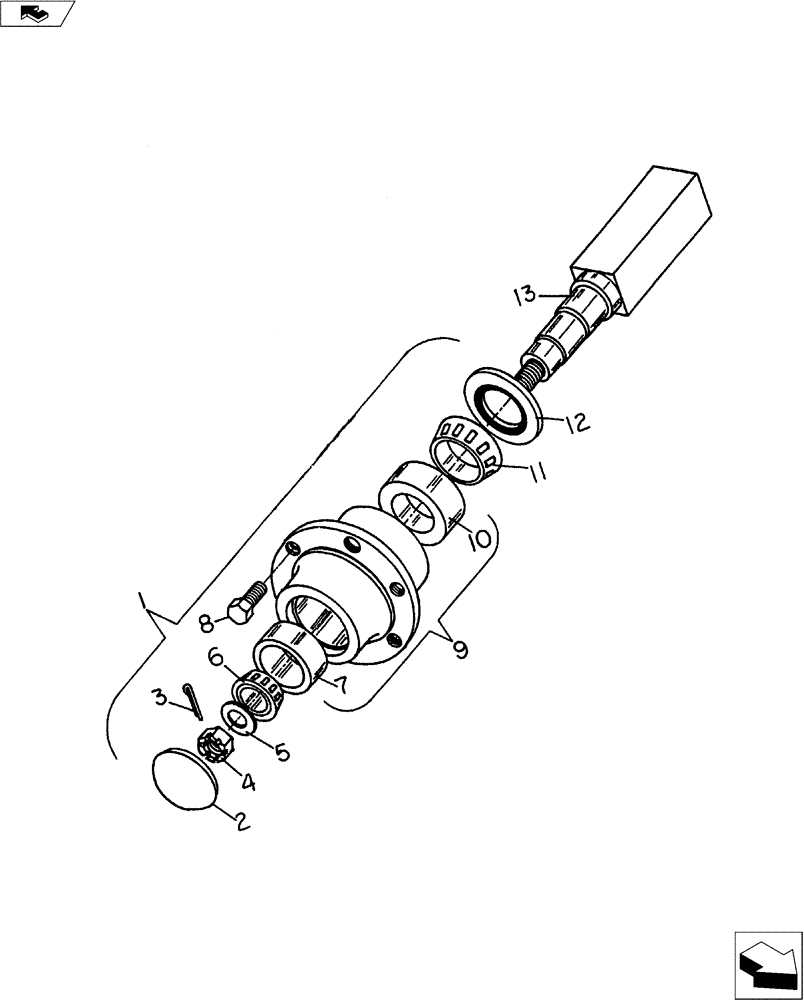

Запчасти Case IH 46C SERIES (44.100.02) - Q803 HUB AND SPINDLE ASSEMBLY (44) - WHEELS

1

28180300

HUB ASSY.

1шт.

2

28480300

CAP

Hub

1шт.

3

NSS

NOT SOLD SEPARAT

5/32" x 1-1/2" Cotter Key

1шт.

4

NSS

NOT SOLD SEPARAT

7/8" NF Slotted Nut

1шт.

5

NSS

NOT SOLD SEPARAT

7/8" SAE Washer

1шт.

6

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

1.38 Timken 25877

1шт.

7

165964R1

BEARING CUP

2.875 OD Timken 25821

1шт.

8

16409053

SPECIAL BOLT

9/16" NF x 1-1/8" Lug

6шт.

9

28280300

HUB ASSY.

W/Bearing Cups

1шт.

10

130503H

BEARING CUP

3.27 OD Timken 25520

1шт.

11

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

1.80 Bore Timken 25590

1шт.

12

491715R91

OIL SEAL

2.00 ID x 3.63 OD x 0.25 Thk. Chicago Rawhide 521430

1шт.

13

28380321

Spindle Only

1шт.

14

28080321

Spindle Assy. (Not Shown)

1шт.
