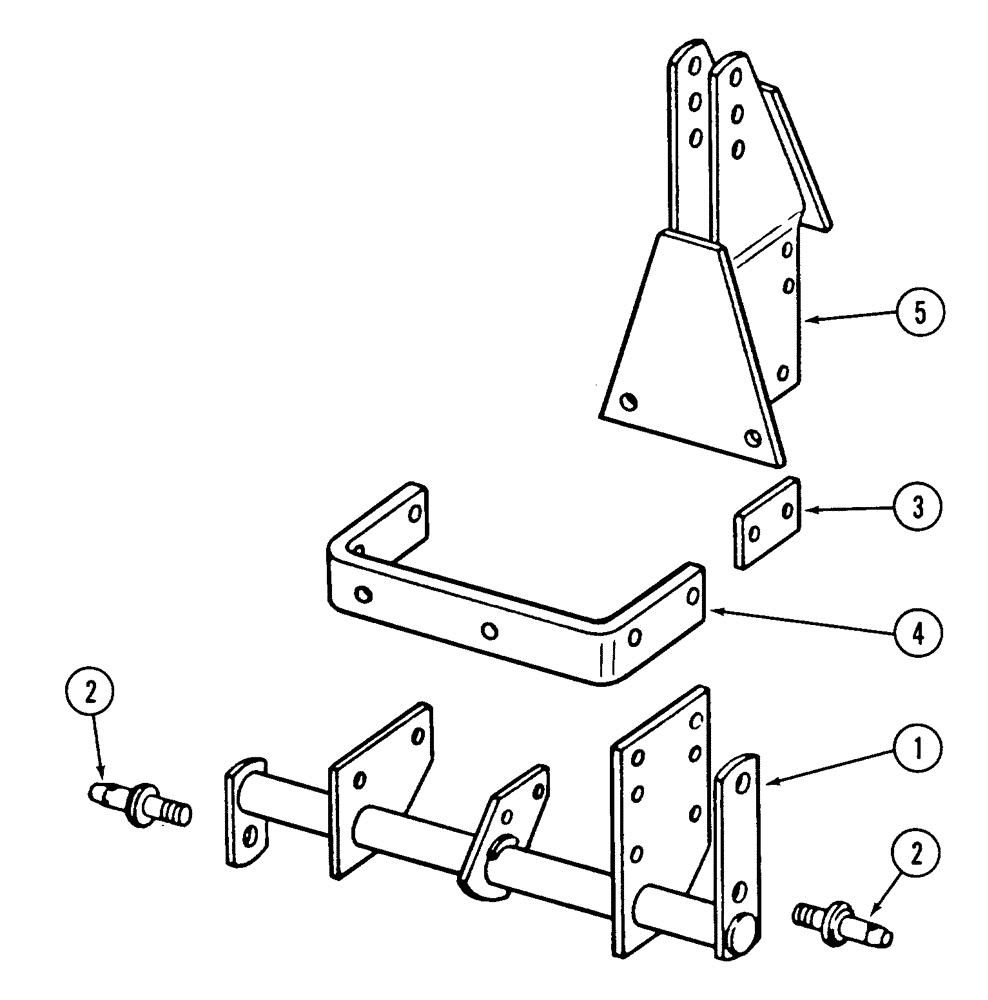

Запчасти Case IH 450 (9-08) - HITCH, 1967 THROUGH 1972

1

488300R1

cross

1шт.

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

6шт.

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

hex, 3/4 NC x 2-3/4 inch

4шт.

271778

SCREW,Hex, 3/4"-10 x 3 3/4", G5

BOLT hex, 3/4 NC x 3-3/4 inch

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

6шт.

2

472790R2

STUD

PIN hitch 3 and 4 furrow

2шт.

2

483659R2

STUD

5 furrow

2шт.

425-1118

NUT,1 1/8"-12, G5

hex, 1-1/8 inch NF

2шт.

492-11112

LOCK WASHER,1 1/8"

lock, 1-1/8 inch

2шт.

3

490001R1

SPACER hitch

2шт.

22047R1

LOCK NUT,5/8"-11

hex, self-locking, 5/8 inch NC

2шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

4

488337R1

spreader

1шт.

429-1112

NUT,3/4"-16, G5

hex, 3/4 inch NF, grade 8

2шт.

133090R1

hex, 3/4 NF x 2-1/2 inch, grade 8

2шт.

5

489998R1

MAST hitch

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

hex, 3/4 NC x 3-1/4 inch

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

4шт.
