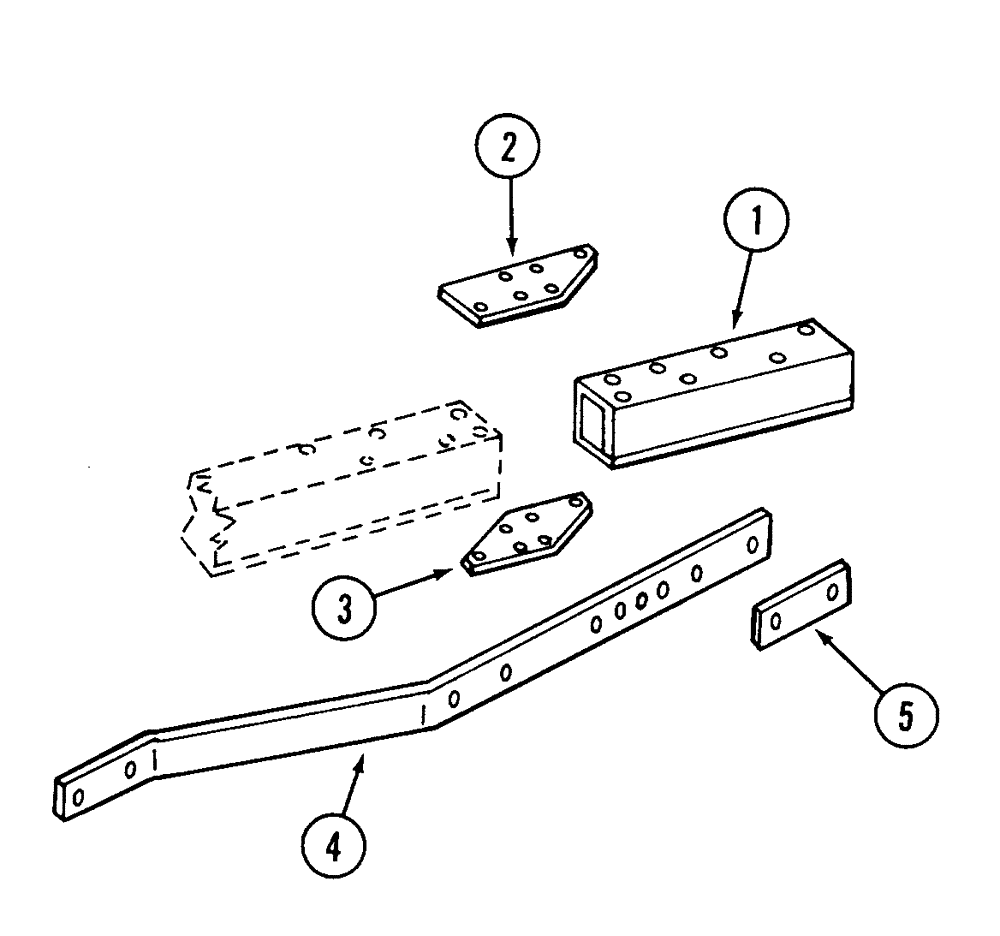

Запчасти Case IH 450 (9-06) - MAIN FRAME EXTENSION, 1967 THROUGH 1972

1

488405R1

extension, 14 inch

1шт.

1

488297R1

extension, 16 inch

1шт.

426-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 8

hex, 5/8 NC x 8 inch, grade 8

9шт.

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

6шт.

21703R1

hex, 3/4 NC x 7-3/4 inch

6шт.

492-11075

LOCK WASHER,3/4"

3/4"

6шт.

2

488334R1

frame splice, upper

1шт.

3

488333R1

frame splice, lower

1шт.

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

hex, 5/8 NC x 7 inch

1шт.

413-10124

BOLT,Hex, 5/8" - 11 x 7-3/4", Gr 5

hex, 5/8 NC x 7-3/4 inch

2шт.

20511R1

lock, 5/8 inch

3шт.

425-1010

NUT,5/8"-11, G5

3шт.

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

hex, 3/4 NC x 2-3/4 inch

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

2шт.

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

hex, 5/8 NC x 7 inch

4шт.

20511R1

lock, 5/8 inch

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

hex, 3/4 NC x 3-1/2 inch

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

2шт.

4

488404R1

extension, 14 inch

1шт.

4

488339R1

SUPPORT

extension, 16 inch

1шт.

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

2шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

5

482777R1

BAR

spacer, 1/4 inch

1шт.
