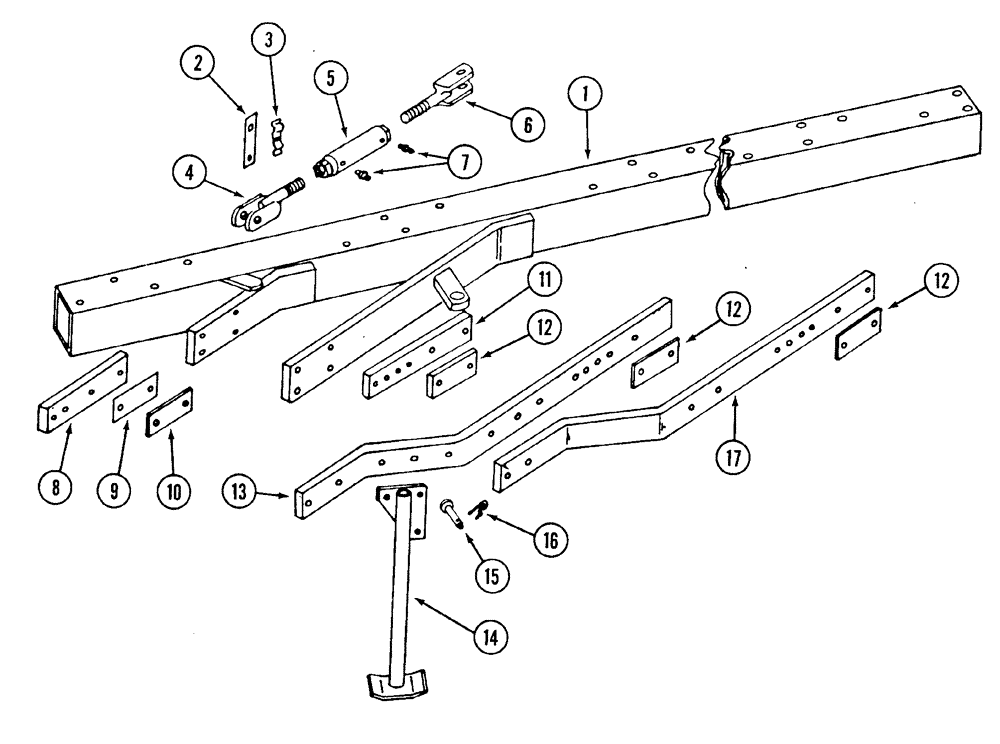

Запчасти Case IH 450 (9-04) - MAIN FRAME, 1967 THROUGH 1972

1

488494R1

main 3 furrow, 14 inch

1шт.

1

490002R1

main 3 furrow, 16 inch

1шт.

1

488495R1

main 4 furrow, 14 inch

1шт.

1

490003R1

main 4 furrow, 16 inch

1шт.

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

hex, NC x 7 inch

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

20511R1

lock, 5/8 inch

1шт.

271777

KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5

hex, 3/4 NC x 3-1/2 inch

1шт.

413-1284

BOLT,Hex, 3/4" - 10 x 5-1/4", Gr 5

hex, 3/4 NC x 5-1/4 inch

1шт.

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

413-10124

BOLT,Hex, 5/8" - 11 x 7-3/4", Gr 5

hex, 5/8 NC x 7-3/4 inch

1шт.

413-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

hex, 3/4 NC x 4-1/2 inch , Course threads

1шт.

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

hex, 3/4 NC x 2-3/4 inch

1шт.

2

483314R1

BAR

STRAP hose clamp

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

carriage 3/8 NC x 1-1/2 inch

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

3

515030R1

CLAMP

hose

1шт.

4

1344919C1

CLEVIS

YOKE turnbuckle, left-hand thread

1шт.

5

480249R1

TRUSS ROD

TURNBUCKLE landing yoke

1шт.

425-1416

JAM NUT,Jam, 1"-8, G5

hex, jam, 1 inch NC

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

480255R1

HEADED PIN,1" x 2 3/16"

clevis, 1 x 2-3/16 inch

2шт.

6

1344920C1

CLEVIS

YOKE turnbuckle, right-hand thread

1шт.

7

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

2шт.

8

488332R1

spacer first coulter

1шт.

9

482777R1

BAR

spacer, 1/4 inch, spring trip plows

1шт.

10

488312R1

SUPPORT

BAR spacer, second coulter

1шт.

11

488294R1

spacer, spring trip plows

2шт.

12

482778R1

BAR

spacer, 1/2 inch, 3 furrow, spring trip

2шт.

12

482778R1

BAR

spacer, 1/2 inch, 4 furrow, spring trip

3шт.

13

488403R1

third rail, 3 and 4 furrow, 14 inch

1шт.

13

488336R1

third rail, 3 and 4 furrow, 16 inch

1шт.

14

488292R1

support

1шт.

458188R1

NUT

hex, self-locking, 5/8 inch NC

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

hex, 5/8 NC x 2-1/4 inch

1шт.

15

540874R1

HEADED PIN,15.88mm OD x 53.57mm L

headed, 5/8 x 1-7/8 inch

1шт.

16

1970957C1

SPRING

PIN hair type, 3/16 inch diameter

1шт.

17

488404R1

third rail extension, 4 furrow, 14 inch

1шт.

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

hex, 3/4 NC x 3 inch

2шт.

25-1012

NUT,3/4"-10, G5

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

17

488339R1

SUPPORT

third rail extension, 4 furrow, 16 inch

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

5шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.
