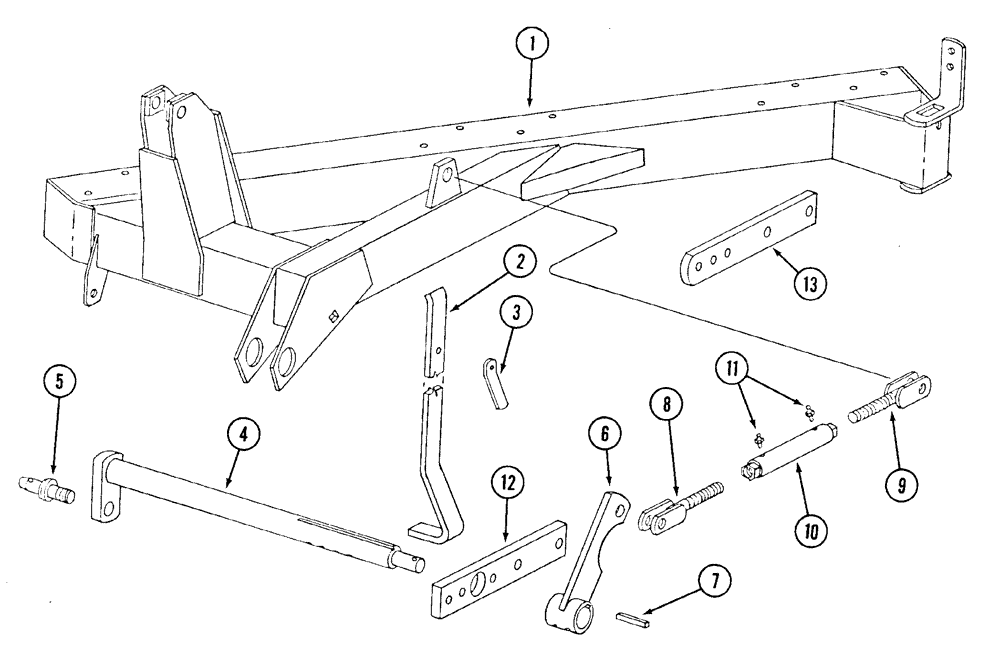

Запчасти Case IH 450 (9-02) - MAIN FRAME AND HITCH, 1972 AND AFTER

1

77881C91

FRAME

main, 3 furrow, 1979 and after

1шт.

1

56007C91

main, 3 furrow, 1972 through 1978

1шт.

1

77882C91

FRAME

main, 4 furrow, 1979 and after

1шт.

1

56008C91

main, 4 furrow, 1972 through 1978

1шт.

1

77883C91

FRAME

main 5 furrow, 1979 and after

1шт.

413-10132

BOLT,Hex, 5/8" - 11 x 8-1/4", Gr 5

hex, 5/8 NC x 8-1/4 inch, 3 furrow

5шт.

413-10132

BOLT,Hex, 5/8" - 11 x 8-1/4", Gr 5

hex, 5/8 NC x 8-1/4 inch, 4 furrow

7шт.

413-10132

BOLT,Hex, 5/8" - 11 x 8-1/4", Gr 5

hex, 5/8 NC x 8-1/4 inch, 5 furrow

9шт.

413-10124

BOLT,Hex, 5/8" - 11 x 7-3/4", Gr 5

hex, 5/8 NC x 7-3/4 inch 3 furrow

4шт.

413-10124

BOLT,Hex, 5/8" - 11 x 7-3/4", Gr 5

hex, 5/8 NC x 7-3/4 inch 4 furrow

5шт.

413-10124

BOLT,Hex, 5/8" - 11 x 7-3/4", Gr 5

hex, 5/8 NC x 7-3/4 inch 5 furrow

6шт.

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

hex, 5/8 NC x 8 inch, 3 furrow

3шт.

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

hex, 5/8 NC x 8 inch, 4 furrow

4шт.

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

hex, 5/8 NC x 8 inch, 5 furrow

5шт.

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self locking, 5/8 inch NC, use one per bolt

1шт.

2

55999C1

BAR

STAND support

1шт.

411-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 2

carriage, 5/8 NC x 2 inch, grade 2

1шт.

3

544098R1

SUPPORT

HANDLE stand

1шт.

4

56001C1

BAR

CROSS hitch, 3 and 4 furrow

1шт.

4

131891C1

BAR

CROSS hitch, 5 furrow

1шт.

5

472790R2

STUD

PIN hitch, 3 and 4 furrow

1шт.

5

483659R2

STUD

5 furrow

1шт.

425-1118

NUT,1 1/8"-12, G5

hex, 1-1/8 inch NF

1шт.

492-11112

LOCK WASHER,1 1/8"

1 1/8"

1шт.

6

56004C1

ARM

landing

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

485-15020

SET SCREW,Sq Hd, 1/2"-13 x 1 1/4"

set, square head, 1/2 NC x 1-1/4 inch, cup point

2шт.

7

R15092

KEY,3/8" Sq x 2 3/4", Par

square, 3/8 x 3/8 x 2-3/4 inch

1шт.

8

1344919C1

CLEVIS

YOKE turnbuckle, left-hand thread

1шт.

9

1344920C1

CLEVIS

YOKE turnbuckle, right-hand thread

1шт.

425-1416

JAM NUT,Jam, 1"-8, G5

hex, jam, 1 inch NC

1шт.

439-11639

HEADED PIN,1" x 2 7/16"

headed, 1 x 2-7/16 inch, grade 2

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

10

480249R1

TRUSS ROD

TURNBUCKLE landing yoke

1шт.

11

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

2шт.

12

56000C1

coulter first, 1972 through 1975

1шт.

12

122566C1

BAR

coulter first, 1976 and after

1шт.

426-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

hex, 3/4 NC x 2-1/4 inch, grade 8

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

hex, 3/4 NC x 3-1/4 inch

1шт.

230-42112

LOCK NUT,3/4"-10, GA

hex, self-locking, 3/4 inch NC

3шт.

13

488312R1

SUPPORT

BAR spacer second colter, 3 furrow

2шт.

13

488312R1

SUPPORT

BAR spacer, second colter, 4 furrow

3шт.

13

488312R1

SUPPORT

BAR spacer, second colter, 5 furrow

4шт.

112831C1

WASHER

SPACER flat, square, 2-1/2 x 5-16 inch main frame, 3 furrow

5шт.

112831C1

WASHER

SPACER flat, square, 2-1/2 x 5/16 inch main frame, 4 furrow

7шт.

112831C1

WASHER

SPACER flat, square, 2-1/2 x 5/16 inch main frame, 5 furrow

9шт.
