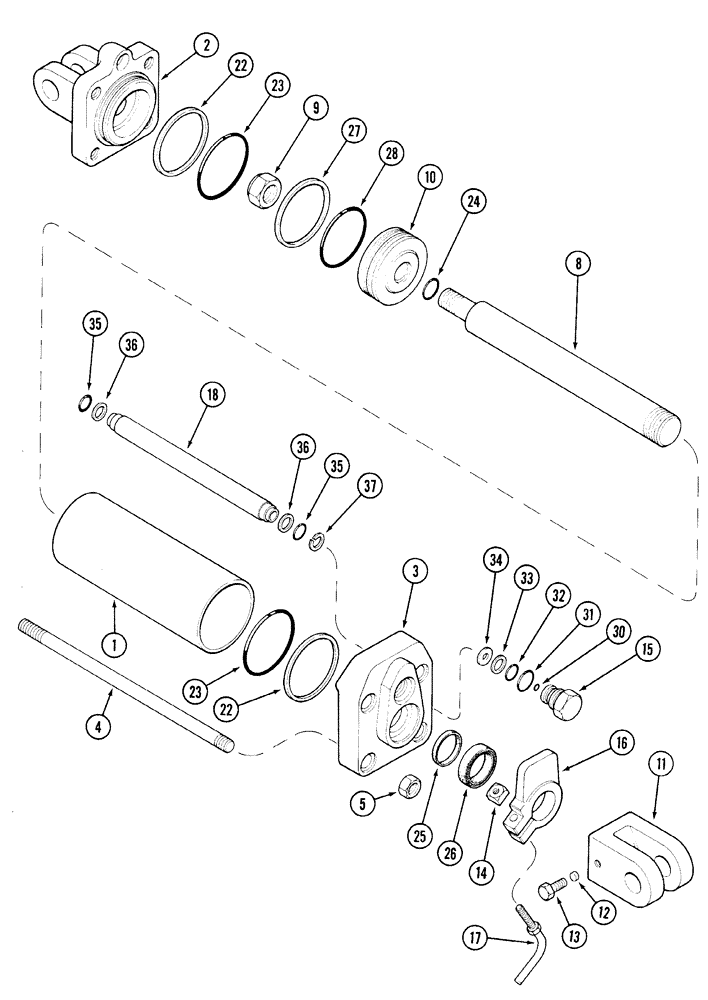

Запчасти Case IH 450 (8-4) - HYDRAULIC CYLINDER, ADJUSTABLE LANDING

1263474C91

CYLINDER ASSY.

3 - 1/2 (89) ID x 8 inch (203 mm) stroke, Replaces: 145352C91, 371292R95 and 403842R94, cylinder assemblies

1шт.

1

NSS

NOT SOLD SEPARAT

BODY cylinder, order 1263474C91 CYLINDER ASSY.

1шт.

2

145354C1

HEAD

cylinder

1шт.

3

1255096C1

END

GLAND cylinder

1шт.

4

145250C1

BOLT,5/8" - 11 x 345mm

cylinder tie

4шт.

5

425-1010

NUT,5/8"-11, G5

8шт.

8

1272813C1

ROD

piston

1шт.

9

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

10

145422C2

PISTON

cylinder

1шт.

11

1282366C1

RAM FORK

CLEVIS piston rod

1шт.

12

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad, insert

1шт.

13

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

14

1266705C1

SQUARE NUT

square, 5/16 inch NC

1шт.

15

1260968C91

VALVE

ASSY. stop limiting, Includes: items 30 through 34

1шт.

16

224581C3

ARM

STOP depth

1шт.

17

1263435C91

ADJUSTMENT SCREW

adjusting

1шт.

18

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

cylinder return

1шт.

79978C2

SEAL KIT

1шт.

22

NSS

NOT SOLD SEPARAT

RING backup

2шт.

23

NSS

NOT SOLD SEPARAT

O-RING cylinder head

2шт.

24

NSS

NOT SOLD SEPARAT

O-RING piston rod

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL rod

1шт.

26

NSS

NOT SOLD SEPARAT

WIPER rod

1шт.

27

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

1272597C91

KIT

seal replacement

1шт.

30

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

31

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

32

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

33

224301C1

BACK-UP RING

59/64 ID x 7/64 inch

1шт.

34

NSS

NOT SOLD SEPARAT

WASHER backup

1шт.

35

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

36

371218R2

BACK-UP RING,0.594" ID x 0.36" Width

RING backup, 9/16 ID x 3/32 inch

2шт.

37

492-11038

LOCK WASHER,3/8"

1шт.
