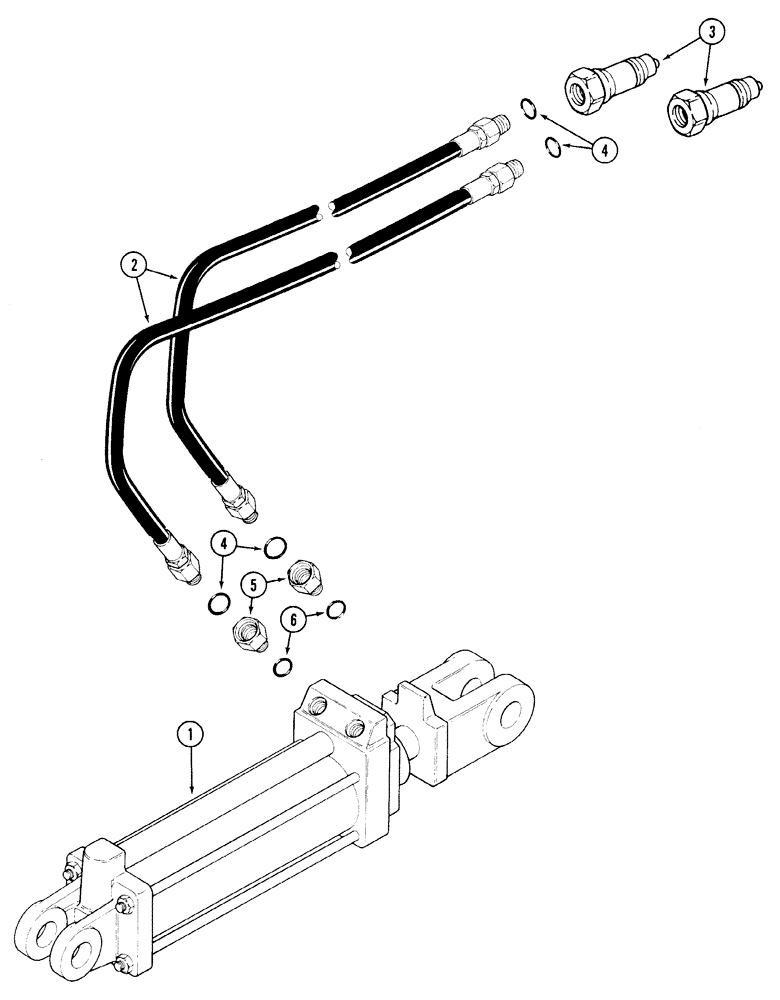

Запчасти Case IH 450 (8-2) - HYDRAULIC CIRCUIT, ADJUSTABLE LANDING

1

REF

INSTRUCTION

CYLINDER ASSEMBLY hydraulic, parts list page 8-5

1шт.

2

407091R91

HOSE

48 inch (1219 mm) long

2шт.

3

1272399C2

QUICK MALE COUPLING

self sealing, male 7/8 inch NF

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

5

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ADAPTER straight, 3/4 - 16 male x 7/8 - 14 inch female O-ring boss

2шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

O-RING, 8-1, 90 Duro, .644" ID x .087" Thk

2шт.
