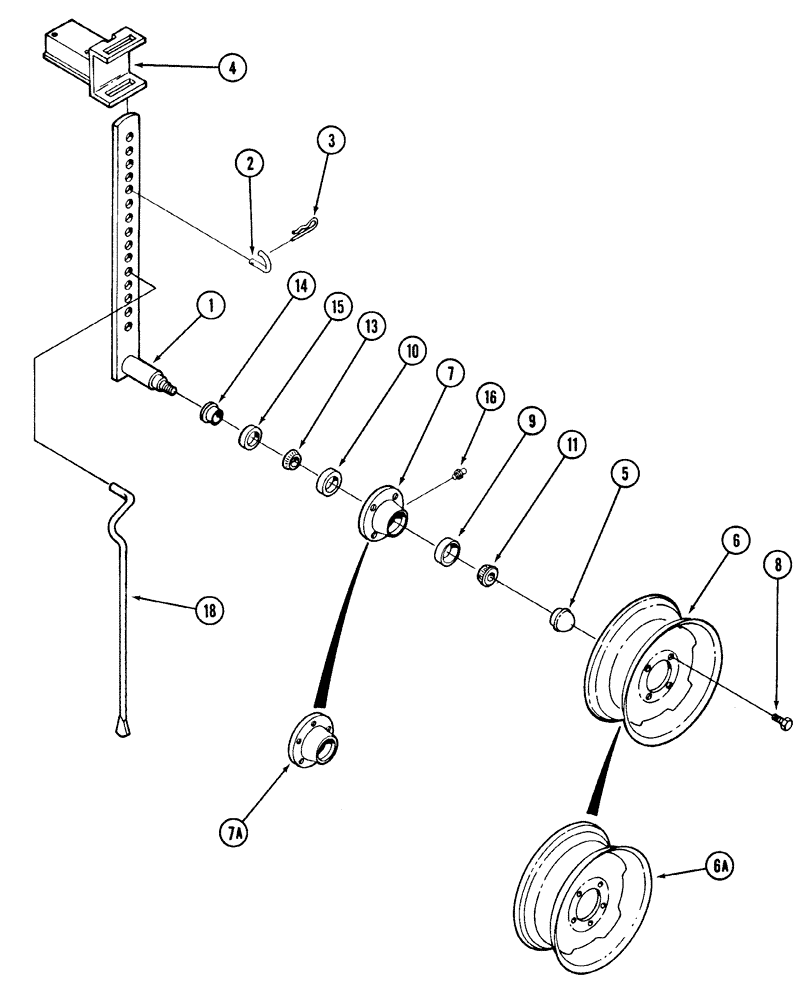

Запчасти Case IH 450 (9-32) - GAUGE WHEEL

1

467474R92

SUPPORT ASSY.

ARM gauge wheel, use with four-bolt hub

1шт.

69442D

NUT

hex, slotted, 3/4 inch NF

1шт.

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

472634R1

WASHER

flat, special, 25/32 x 1/4 x 1/8 inch

1шт.

1

96039C91

SUPPORT ASSY.

SPARE PART STANDARD gauge wheel, use with six-bolt hub

1шт.

425-1312

SLOTTED NUT,3/4"-16, G5

hex, 3/4 inch NF

1шт.

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

flat, special, 25/32 x 1/4 x 1/8 inch

1шт.

2

520620R1

AXLE PIN

retaining

1шт.

3

1978738C1

HAIR PIN COTTER

3/16"

1шт.

4

547221R1

BRACKET

mounting

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

19514R1

BOLT

hex, 5/8 NC x 10 inch

1шт.

492-11062

BEARING WASHER,5/8"

1шт.

95-81014

WASHER,21/32" x 1 1/2" x .120"

flat, 21/32 x 1-1/2 x 7/64 inch

1шт.

5

B13280

HUB CAP

wheel

1шт.

6

455169R92

WHEEL

15 x 4-1/2 inch, four-bolt mount, if used

1шт.

810769C1

VALVE

inflation

1шт.

6

T25852

RIM

WHEEL WHEEL, 14 x 5 inch, four-bolt mount, if used

1шт.

810768C1

VALVE

inflation

1шт.

6a

T25842

RIM

WHEEL WHEEL, 14 x 5 inch, six-bolt mount, if used

1шт.

810768C1

VALVE

inflation

1шт.

6a

T53527

WHEEL

15 x 5 inch, six-bolt mount, if used

1шт.

810768C1

VALVE

inflation

1шт.

7

472220R2

HUB

wheel, four-bolt mount

1шт.

7a

810087C2

HUB

wheel, six-bolt mount

1шт.

8

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

hex, conical, 1/2 NF x 15/16 inch, use with four-bolt hub

4шт.

8

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

hex, conical, 1/2 NF x 1-5/32 inch, use with six-bolt hub

6шт.

9

651814R1

BEARING CUP

tapered roller bearing, outer

1шт.

10

651817R1

BEARING CUP

CUP tapered roller bearing, inner

1шт.

11

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

tapered roller, outer

1шт.

11

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

13

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

tapered roller, inner

1шт.

14

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

oil

1шт.

15

472222R1

SLEEVE

oil seal

1шт.

16

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

Use with four-bolt hub

1шт.

16

219-87

LUBE NIPPLE,1/4" - 28 NPTF

Use with six-bolt hub

1шт.

18

490680R1

ROD

BAR gauge wheel

1шт.
