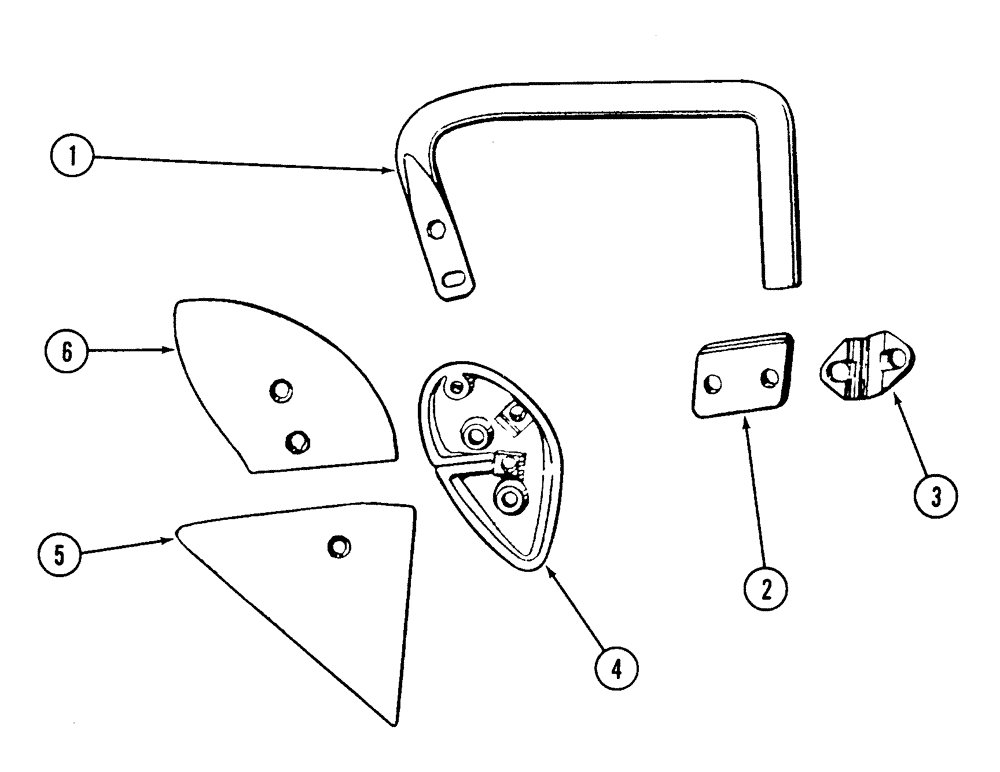

Запчасти Case IH 450 (9-30) - JOINTER, TWO PIECE BLADE

1

519344R1

SPARE PART jointer

1шт.

417-620

BOLT,Sq Hd, 3/8" - 16 x 1-1/4", Gr 2

square head, 3/8 x 1-1/4 inch, grade 2

1шт.

18908R1

SPARE PART SCREW machine, square head, 3/8 NC x 1-1/2 inch

1шт.

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

1шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

2

519343R1

SPARE PART BLOCK jointer

1шт.

3

519342R1

SPARE PART jointer block

1шт.

18709R1

BOLT,Short NK, 1/2"-13 x 2 3/4", G2

carriage, 1/2 NC x 2-3/4 inch

2шт.

425-108

NUT,1/2" - 13, Gr 5

2шт.

4

PO2426

SPARE PART plowshare

1шт.

5

PO2226

SPARE PART PLOW, right-hand, chilled, if used

1шт.

5

PO20092X

BLADE

PLOWSHARE, right-hand, steel

1шт.

21618R1

BOLT plow, 3/8 NC x 1-3/8 inch

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

6

PO1186

SPARE PART BOARD, right-hand, chilled

1шт.

6

S7408X

SPARE PART BOARD, right-hand, steel, if used

1шт.

21616R1

BOLT plow, 3/8 NC x 1-1/8 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.
