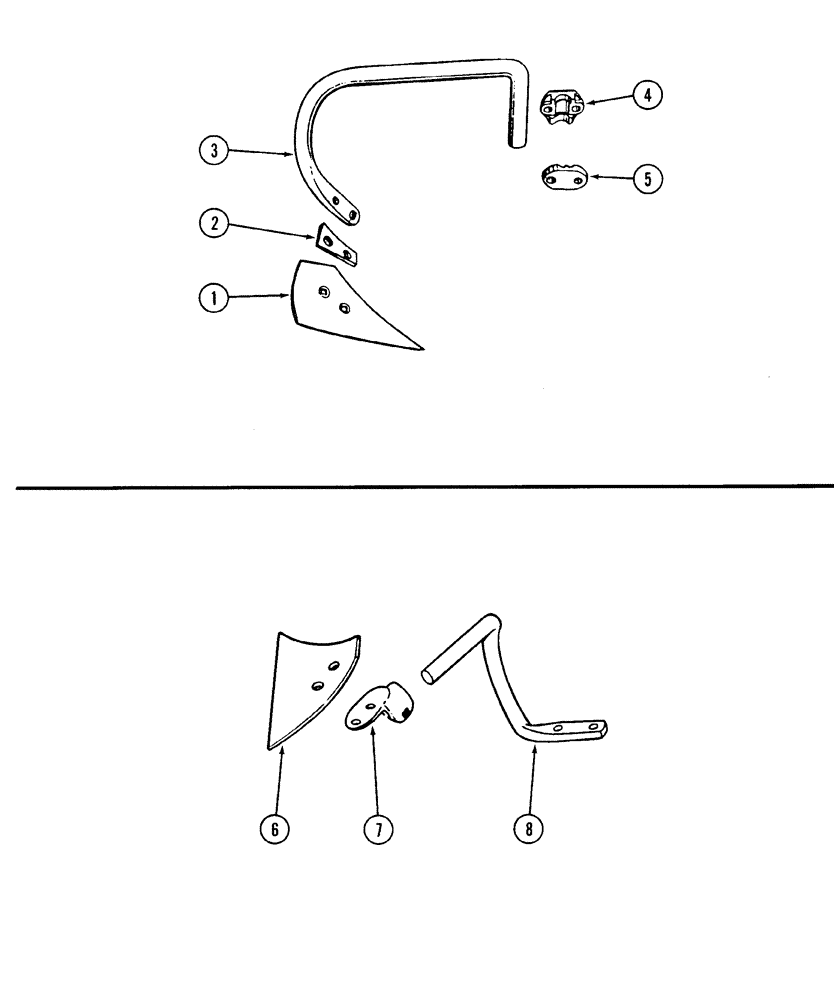

Запчасти Case IH 450 (9-28) - JOINTER, ONE PIECE BLADE, HEAVY DUTY

1

510576R11

SPARE PART jointer

1шт.

15585R1

BOLT

carriage, 3/8 NC x 1-1/2 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

2шт.

2

510572R1

SPARE PART adjusting

1шт.

3

520787R1

SPARE PART jointer

1шт.

4

519343R1

SPARE PART BLOCK jointer

1шт.

5

519342R1

SPARE PART jointer block

1шт.

15126R1

SPARE PART carriage, 1/2 NC x 2-3/4 inch

2шт.

425-108

NUT,1/2" - 13, Gr 5

2шт.

6

510576R11

SPARE PART jointer, heavy duty

1шт.

418-3624

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 2

BOLT plow, 3/8 NC x 1-1/2 inch, heavy duty

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

7

512326R1

SPARE PART CAP jointer blade, heavy duty

1шт.

20180R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 2

BOLT carriage, 1/2 NC x 2 inch, heavy duty

1шт.

425-108

NUT,1/2" - 13, Gr 5

1шт.

8

523028R1

SPARE PART SHANK jointer, heavy duty

1шт.
