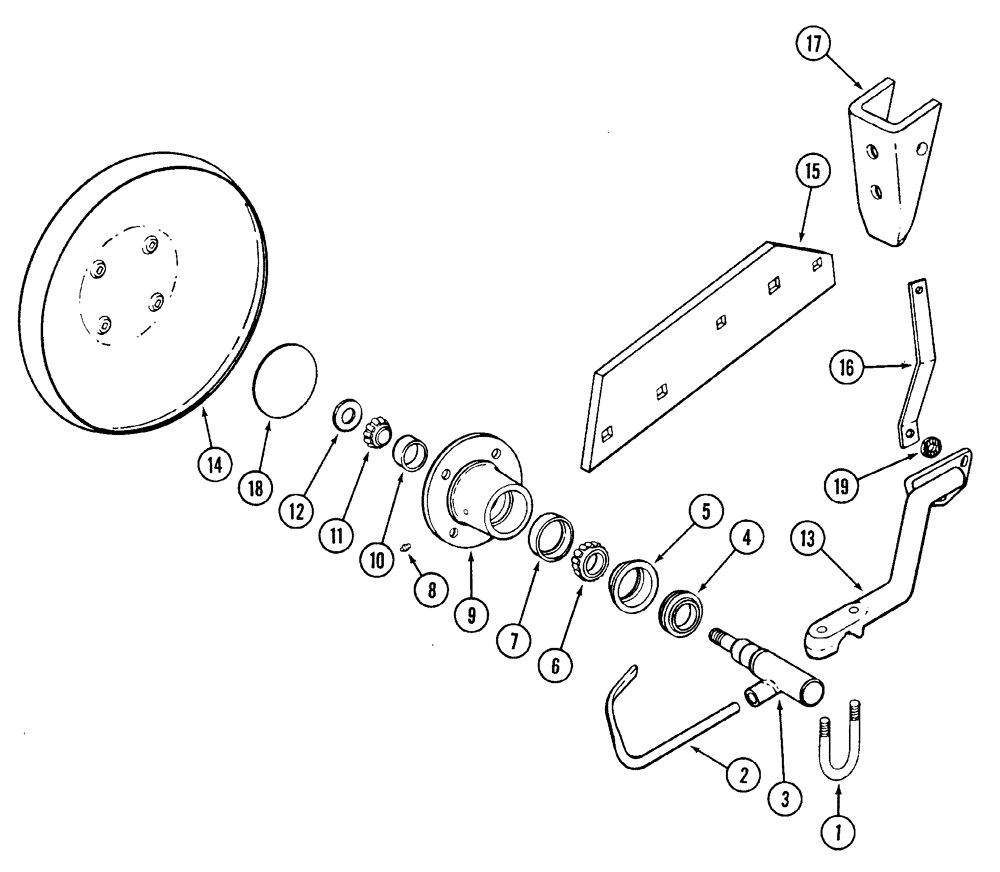

Запчасти Case IH 450 (9-26) - REAR FURROW WHEEL

1

478221R1

BOLT,Plow, 1/2" - 13 x 3.0"

U, 1/2 inch NC

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

425-108

NUT,1/2" - 13, Gr 5

2шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

flat, 21/32 x 1-1/2 x 7/64 inch

2шт.

2

478223R1

KNIFE

BLADE scraper

1шт.

3

478216R91

SPINDLE

rear furrow wheel

2шт.

69442D

NUT

hex, slotted, 3/4 inch NF

1шт.

432-1020

COTTER PIN,5/32" x 1 1/4"

1шт.

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

set, square head, 1/2 NC x 3/4 inch, cup point

1шт.

4

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

oil

1шт.

5

472222R1

SLEEVE

oil seal

1шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

tapered roller

1шт.

7

651817R1

BEARING CUP

CUP tapered roller bearing

1шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

9

122711C1

HUB

wheel furrow

1шт.

62177C1

PLOW BOLT

BOLT flat head, square neck, 7/16 NC x 1-1/4 inch

4шт.

492-11044

LOCK WASHER,7/16"

4шт.

429-107

NUT,7/16"-14, G8

4шт.

10

651814R1

BEARING CUP

tapered roller

1шт.

11

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

tapered roller

1шт.

11

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

11

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

12

495-81042

WASHER,25/32" x 1 1/2" x .120"

flat, 25/32 x 1-1/2 x 7/64 inch

1шт.

13

488423R1

SUPPORT

axle

1шт.

14

542488R1

WHEEL

furrow, rear

2шт.

15

478227R1

LANDSIDE

right

1шт.

62179C1

PLOW BOLT

BOLT flat head, square neck, 7/16 NC x 2-1/8 inch

2шт.

633661R1

CARRIAGE BOLT,#3, 5/8" - 11 x 3"

flat head, square neck, 5/8 NC x 3 inch

2шт.

118-423

PLOW BOLT,5/8"-11 x 2 1/2", G5

plow, 5/8 NC x 2-1/2 inch

1шт.

231-1447

NUT,7/16"-14, GB

2шт.

492-11062

BEARING WASHER,5/8"

3шт.

425-1010

NUT,5/8"-11, G5

3шт.

16

488338R1

SUPPORT

reinforcing strap

1шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

flat, 21/32 x 1-1/2 x 7/64 inch

2шт.

17

542495R1

SUPPORT

STOP beam

1шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

492-11062

BEARING WASHER,5/8"

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

18

41-3044

PLUG,Exp, 2 3/4"

1шт.

19

523011R1

WASHER

serrated support adjusting

2шт.
