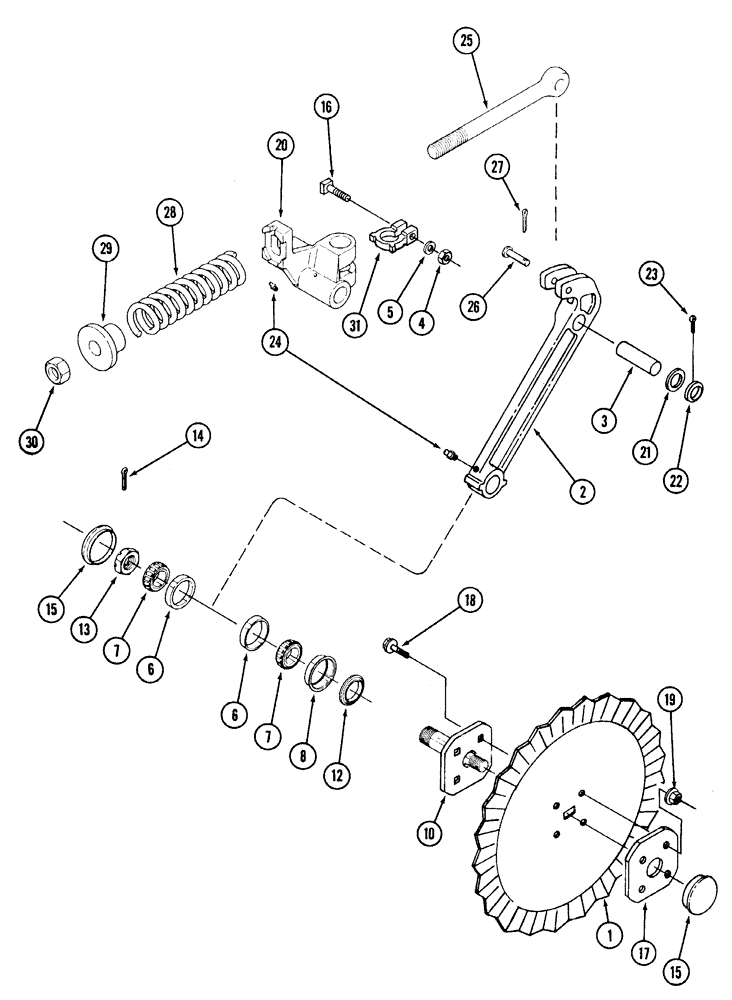

Запчасти Case IH 450 (9-21C) - ROLLING COULTER, HIGH LIFT SPRING CUSHION TYPE (CAST)

1

28341R1

PLOW DISC

coulter, rippled edge, 20 inch

1шт.

1

31399R1

NOTCHED DISK

coulter, rippled edge, 17 inch

1шт.

2

224275C1

ARM coulter

1шт.

3

224080C1

PIN pivot

1шт.

4

425-107

NUT,7/16"-14, G5

4шт.

5

492-11044

LOCK WASHER,7/16"

1шт.

6

651817R1

BEARING CUP

CUP tapered roller bearing

2шт.

7

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

tapered roller

2шт.

8

472633R1

BUSHING

SLEEVE wear

1шт.

10

224063C1

HUB

SPINDLE coulter

1шт.

12

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

oil

1шт.

13

519250R1

SLOTTED NUT

hex, slotted 1-1/4 inch NF

1шт.

14

432-828

COTTER PIN,1/8" x 1 3/4"

1шт.

15

224066C1

HUB CAP

1шт.

16

18929R1

BOLT,7/16" - 14 x 2 1/2", Gr 2

BOLT square head, 7/16 NC x 2-1/2 inch

1шт.

17

224067C1

LARGE PLATE

PLATE, LARGE SUPPORT disk, outer

1шт.

18

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT carriage, 1/2 NC x 1-1/4 inch

4шт.

19

231-5348

FLANGE NUT,Flg, 1/2"-13

4шт.

20

224068C1

SUPPORT

coulter

1шт.

21

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

flat, 1-9/32 x 1-3/4 x 1/16 inch

1шт.

22

61570C1

FERRULE

COLLAR coulter arm

1шт.

23

438-32032

PIN,5/16" x 2", Coiled

5/16" x 2", Coiled

1шт.

24

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

25

480344R1

EYEBOLT,Spring, 5/8" - 11 x 299.70mm

BOLT, EYE 5/8 inch NC

1шт.

26

439-1834

HEADED PIN,1/2" x 2 1/8"

headed, 1/2 x 2-1/8 inch, grade 2

1шт.

27

432-1216

COTTER PIN,3/16" x 1"

1шт.

28

487698R1

SPRING

cushion

1шт.

29

487697R1

CENTERING RING

RETAINER spring

1шт.

30

231-14010

LOCK NUT,5/8"-11, GB

hex, self-locking, 5/8 inch NC

1шт.

31

112844C1

COLLAR CLAMP

stop

1шт.
