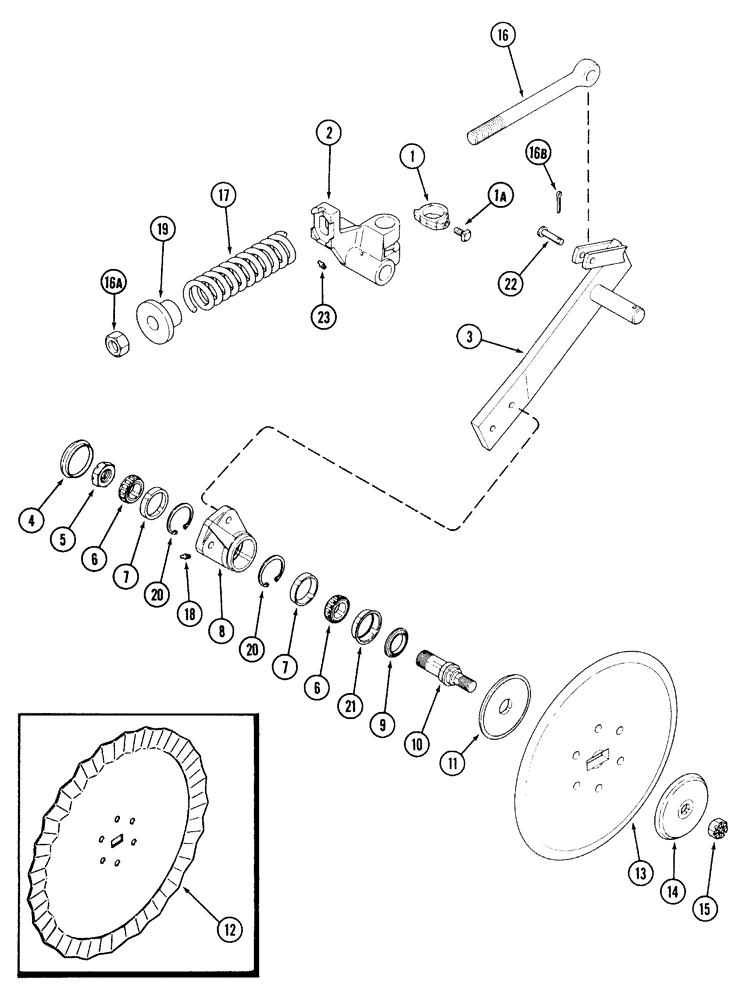

Запчасти Case IH 450 (9-20) - ROLLING COULTER, HIGH LIFT SPRING CUSHION TYPE (PLATE)

1

523345R21

COLLAR CLAMP

stop

1шт.

1a

485-15020

SET SCREW,Sq Hd, 1/2"-13 x 1 1/4"

set, square head, 1/2 NC x 1-1/4 inch, cup point

1шт.

2

492815R3

BUSHING

coulter

1шт.

3

492812R1

ARM

coulter

1шт.

4

518842R1

CAP

hub

1шт.

Part of P/N 549827R92

1шт.

5

519250R1

SLOTTED NUT

hex, slotted, 1-1/4 inch NF

1шт.

Part of P/N 549827R92

1шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

tapered roller

2шт.

Part of P/N 549827R92

1шт.

7

651817R1

BEARING CUP

CUP tapered roller bearing

2шт.

Part of P/N 549827R92

1шт.

8

523019R1

HOUSING

beraing, Serial Range: prior-1969

1шт.

8

541482R1

BEARING HOUSING,2.3275" ID x 3" OD x 2.44"

HOUSING bearing, 1969 and after

1шт.

Part of P/N 549827R92

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex, 1/2 NC x 2-1/2 inch

2шт.

425-108

NUT,1/2" - 13, Gr 5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

9

523027R91

OIL SEAL

oil, Serial Range: prior-1969

1шт.

9

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

oil, 1969 and after

1шт.

Part of P/N 549827R92

1шт.

10

523023R1

SPINDLE

coulter, Serial Range: prior-1969

1шт.

10

541480R1

SPINDLE

coulter, 1969 and after

1шт.

Part of P/N 549827R92

1шт.

432-828

COTTER PIN,1/8" x 1 3/4"

1шт.

Part of P/N 549827R92

1шт.

11

59158C1

SUPPORT ASSY.

disk, for 20 inch disk

1шт.

11

523020R3

SUPPORT ASSY.

disk, for 17 inch disk

1шт.

12

469191R3

BLADE

DISK coulter, rippled edge, 17 inch

1шт.

12

474252R2

COULTER

COULTER RIPPLED 20"

1шт.

13

523025R2

HALF BLADE

DISK coulter, plain edge, 17 inch

1шт.

13

474251R1

DISC

coulter, plain edge, 20 inch

1шт.

14

59159C1

SUPPORT ASSY.

disk, outer, for 20 inch disk

1шт.

14

523021R2

SUPPORT ASSY.

disk, outer, for 17 inch disk

1шт.

15

21626R1

LOCK NUT,3/4"-16

hex, self-locking, 3/4 inch NF, prior to 1969

1шт.

15

429-1314

NUT,7/8"-14, G8

hex, 7/8 inch NF, grade 8, 1969 and after

1шт.

Part of P/N 549827R92

1шт.

432-1224

COTTER PIN,3/16" x 1-1/2"

1шт.

Part of P/N 549827R92

1шт.

16

480344R1

EYEBOLT,Spring, 5/8" - 11 x 299.70mm

BOLT, EYE 5/8 inch NC

1шт.

16a

231-14110

LOCK NUT,5/8"-11, GB

hex, self lockiing, NC

1шт.

16b

432-1628

COTTER PIN,1/4" x 1 3/4"

1шт.

495-81203

WASHER,1 9/32" x 2" x .120"

flat, 1-9/32 x 2 x 1/8 inch

1шт.

487698R1

SPRING

cushion

1шт.

18

17328R1

SPARE PART FITTING grease, 65°, 1/4 inch NF

1шт.

Part of P/N 549827R92

1шт.

19

487697R1

CENTERING RING

RETAINER spring

1шт.

20

100-21231

SNAP RING,2.312", Int, #231

Prior to 1969

2шт.

21

472222R1

SLEEVE

oil seal, 1969 and after

1шт.

Part of P/N 549827R92

1шт.

22

439-1828

HEADED PIN,1/2" x 1 3/4"

headed, 1/2 x 1-3/4 inch, grade 2

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

1шт.

23

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.

549827R92

HUB CAP

SPINDLE ASSY. coulter, Includes: Ref. 4 - 7, 8 (P/N 541482R1), 9 (P/N 472221R91), 10 (P/N 541480R1), P/N 432-828, 15 (P/N 429-1314), P/N 432-1224, 18 and 21

1шт.
