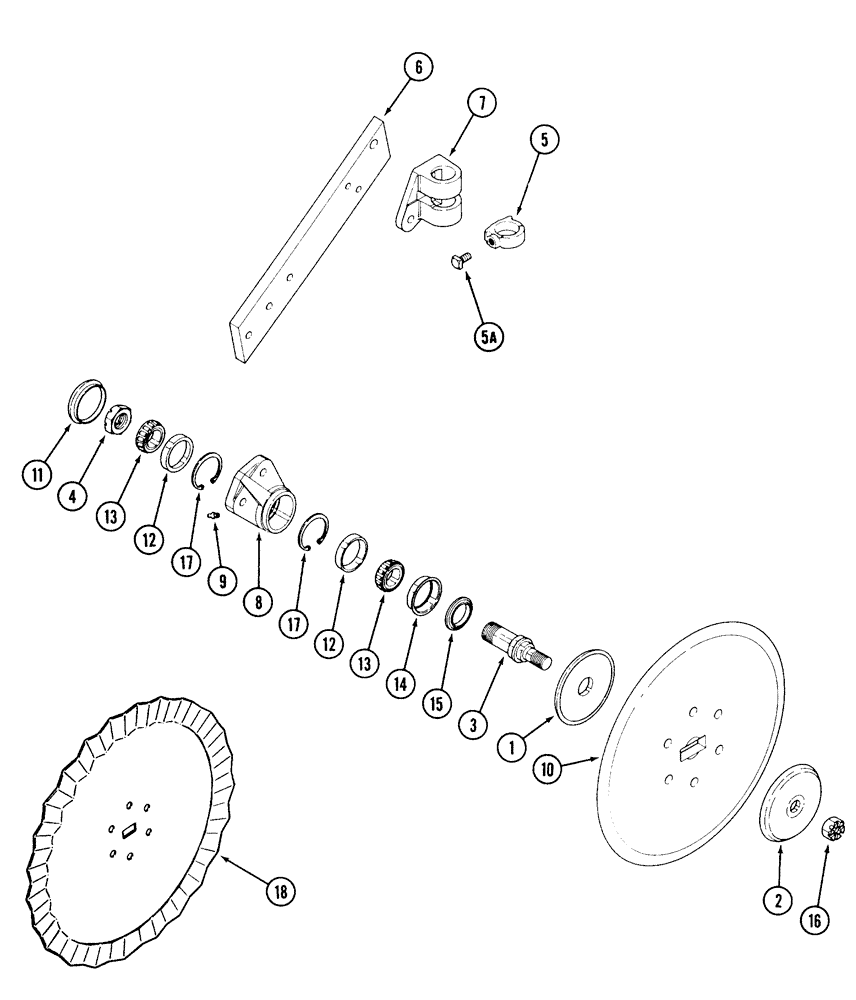

Запчасти Case IH 450 (9-16) - ROLLING COULTER, SHEAR BOLT TYPE

1

523020R3

SUPPORT ASSY.

disk inner, for 17 inch disk

1шт.

1

59158C1

SUPPORT ASSY.

disk inner, for 20 inch disk

1шт.

2

523021R2

SUPPORT ASSY.

disk outer, for 17 inch disk

1шт.

2

59159C1

SUPPORT ASSY.

disk outer, for 20 inch disk

1шт.

3

541480R1

SPINDLE

coulter, 1969 and after

1шт.

3

523023R1

SPINDLE

coulter, Serial Range: prior-1969

1шт.

4

519250R1

SLOTTED NUT

hex, slotted 1-1/4 inch NF

1шт.

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

1шт.

5

523345R21

COLLAR CLAMP

stop

1шт.

5a

485-15020

SET SCREW,Sq Hd, 1/2"-13 x 1 1/4"

set, square head, 1/2 NC x 1-1/4 inch, cup point

1шт.

6

131517C92

LEVER

ARM ASSY. coulter

1шт.

M906

HEADED PIN,7/16" x 1 1/8"

clevis, 7/16 x 1-1/8 inch

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

7

462273R3

SUPPORT ASSY.

BEARING coulter arm, right-hand

1шт.

414-728

BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5

hex, 7/16 NF x 1-3/4 inch

1шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 inch

1шт.

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

425-117

NUT,7/16"-20, G5

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

8

541482R1

BEARING HOUSING,2.3275" ID x 3" OD x 2.44"

HOUSING bearing, right-hand, 1969 and after

1шт.

8

523019R1

HOUSING

bearing, right-hand, Serial Range: prior-1969

1шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

9

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

grease, 45° 1/4-28 special taper x 13/16 inch

1шт.

10

523025R2

HALF BLADE

DISK coulter, plain edge 17 inch

1шт.

10

474251R1

DISC

coulter, plain edge 20 inch

1шт.

11

T23707

CAP

wheel hub, Serial Range: prior-1969

1шт.

11

518842R1

CAP

hub, 1969 and after

1шт.

12

651817R1

BEARING CUP

CUP tapered, roller bearing

2шт.

13

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

tapered roller

2шт.

14

472222R1

SLEEVE

oil seal

1шт.

15

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

oil, 1969 and after

1шт.

15

564403R91

SEAL

oil, Serial Range: prior-1969

1шт.

16

429-1314

NUT,7/8"-14, G8

hex, slotted, 7/8 inch NF, grade 8, 1969 and after

1шт.

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

16

21626R1

LOCK NUT,3/4"-16

hex, self-locking 3/4 inch NF prior to 1969

1шт.

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

17

100-21231

SNAP RING,2.312", Int, #231

Ring, Snap, , Prior to 1969 2.312", Int, #231

1шт.

18

469191R3

BLADE

DISK coulter, rippled edge 17 inch

1шт.

18

474252R2

COULTER

RIPPLED 20"

1шт.
