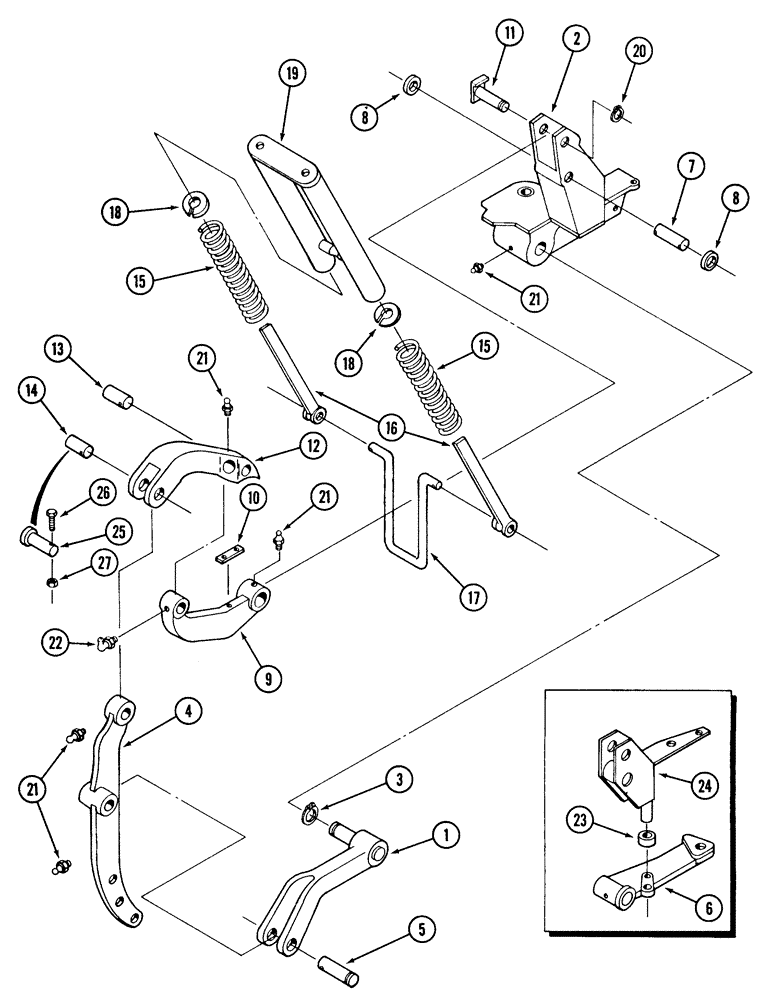

Запчасти Case IH 450 (9-14) - AUTOMATIC TRIP BEAM

1

55366C3

BEAM

lower link

1шт.

2

112752C3

BRACKET

pivot casting auto trip, 1976 and after

1шт.

3

103-16200

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

1шт.

4

60099C3

BEAM

recovery trip

1шт.

5

485526R1

SHAFT

pivot link

1шт.

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

flat, 1-9/32 x 2 x 3/64

2шт.

471323R1

LINCH PIN

locking 3/8 inch diameter

1шт.

519250R1

SLOTTED NUT

hex, slotted 1-1/4 inch NF

1шт.

432-836

COTTER PIN,1/8" x 2 1/4"

1/8" x 2 1/4"

1шт.

6

485527R1

SUPPORT

upper mounting, 1967 through 1975

1шт.

7

485534R2

PIN,25.4mm OD x 132mm L

retaining, upper mounting bracket

1шт.

8

491934R1

SPACER

stop roller

2шт.

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

flat, 1-1/32 x 1-3/4 x 1/16 inch

2шт.

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

2шт.

9

485537R4

SUPPORT

LINK upper, front

1шт.

10

489152R2

BAND

STRAP load adjusting

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

426-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 8

hex, 5/16 NC x 1-1/4 inch, grade 8

1шт.

11

485539R1

PIN

upper, front link

1шт.

12

485542R5

LEVER

LINK rear, upper left

1шт.

13

485543R1

PIN

upper, link center

1шт.

438-11440

LOCK PIN,7/32" x 2 1/2", Slotted

Pin, 7/32" x 2 1/2", Slotted

1шт.

14

485524R1

PIN

plow beam, if used

1шт.

438-12040

LOCK PIN,5/16" x 2 1/2", Slotted

Pin, 5/16" x 2 1/2", Slotted

1шт.

438-11240

LOCK PIN,3/16" x 2 1/2", Slotted

Pin, , if used 3/16" x 2 1/2", Slotted

1шт.

15

118674A1

SPRING

extension

2шт.

16

485545R1

BAR

spring, insert mounting hook

1шт.

17

485544R1

HOLDER

spring, mounting hook

1шт.

486365R1

WASHER

flat, hardened, 29/32 x 1-1/2 x 1/16 inch, mounting hook

2шт.

460309R1

COTTER PIN

hair

2шт.

18

485548R2

WASHER

ADJUSTER spring

2шт.

485555R1

BOLT,Hex, 1/2" - 13 x 4 1/4"

hex, full thread, 1/2 NC x 4-1/4 inch

1шт.

495-81169

WASHER,17/32" x 2 1/2" x .120"

- flat, 17/32 x 2-1/2 x 3/64 inch

1шт.

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

19

485551R3

TUBE

spring

1шт.

20

100-1698

SNAP RING,#98, Ext

Ring, Snap, #98, Ext

1шт.

21

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

22

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING grease, 90° 1/4-28 taper x 3/4 inch

1шт.

23

485535R1

WASHER

SPACER upper, pivot bracket, 1967 through 1975

2шт.

24

485556R1

BRACKET

pivot auto trip, 1967 through 1975

1шт.

25

121225A1

PIN,31.75mm OD x 76mm L

pivot rear link, if used

1шт.

26

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

hex, 5/16 NC x 36 inch, use with 121225A1 pin, if used

1шт.

27

231-4115

NUT,5/16"-18, GB

NUT, hex, self locking 5/16 inch NC, Use with 121225A1 pin, if used

1шт.
