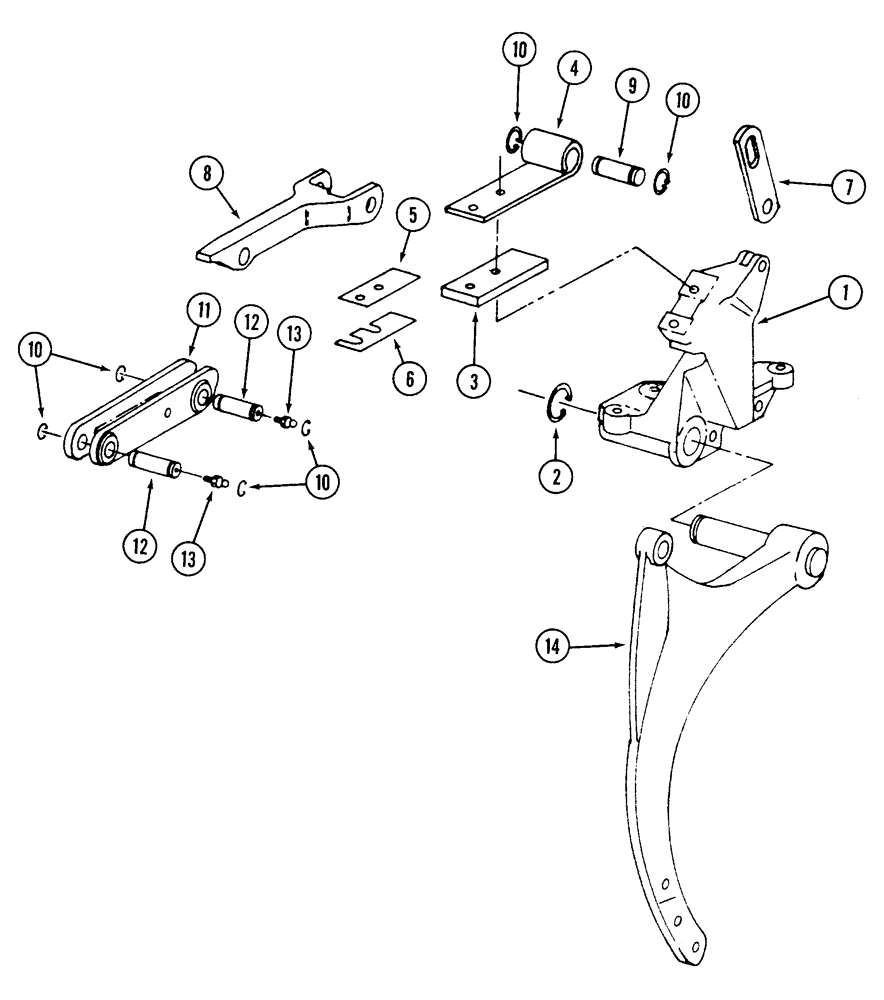

Запчасти Case IH 450 (9-10) - TOGGLE TRIP BEAM

1

123000C1

BRACKET

mounting

1шт.

2

103-16200

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

1шт.

3

62431C1

LARGE PLATE

BAR spring

1шт.

4

62432C1

SPRING

toggle

1шт.

5

112460C1

SPACER

flat

1шт.

6

112459C2

SHIM

shank

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

493-41078

LOCK WASHER,Ext Tooth, 3/4"

external tooth lock 3/4 inch

1шт.

7

122999C1

BAR

restrictor

1шт.

439-51232

HEADED PIN,3/4" x 2"

headed, 3/4 x 2 inch

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

8

61911C4

LINK

front toggle

1шт.

9

62430C1

PIN

front toggle link

1шт.

10

100-1698

SNAP RING,#98, Ext

Ring, Snap, #98, Ext

6шт.

11

131918C1

LINK

rear toggle

1шт.

12

131948C2

PIN

toggle pivot

2шт.

13

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

14

131635C2

BEAM

toggle trip

1шт.
