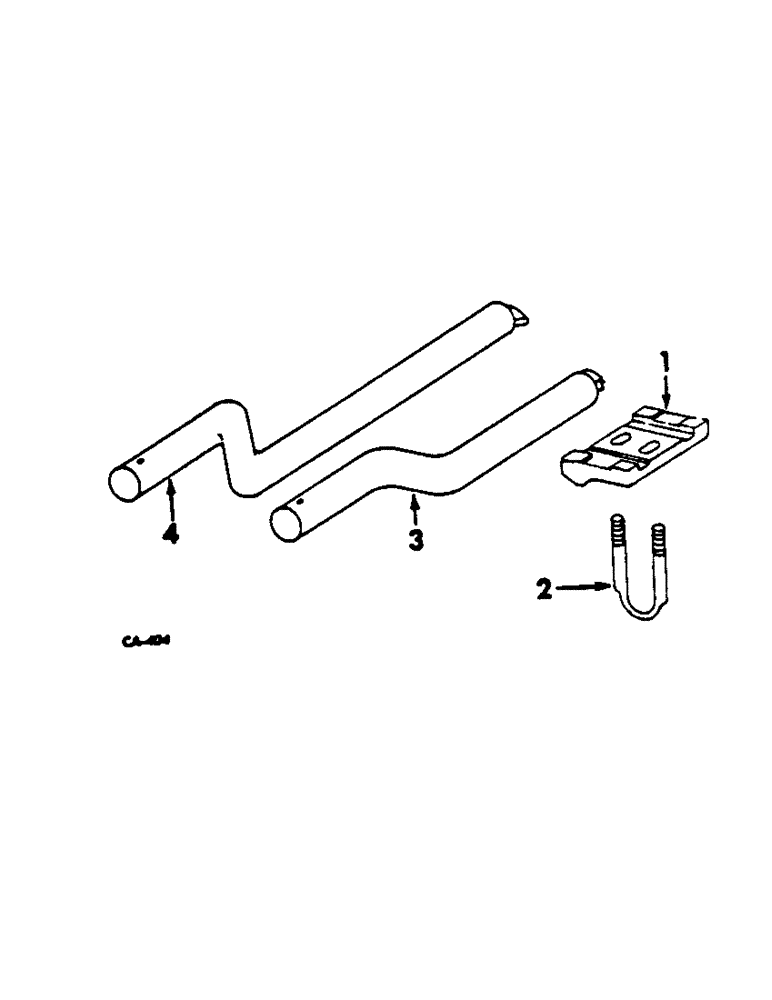

Запчасти Case IH 440 (AT-5[A]) - COLTER ATTACHING PARTS

1

524456R3

CLAMP

colter

1шт.

2

524459R1

BOLT,U, 5/8" - 11

colter clamp U

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex.

4шт.

3

541265R1

SHANK

colter 1st bottom only

1шт.

4

522434R1

STEM

SHANK, colter, 2nd, 3rd, 4th & 5th bottoms only

1шт.

21641R1

COTTER PIN,5/16" x 2 1/4"

Pin, Split (Cotter), , self-opening 5/16" x 2 1/4"

1шт.
