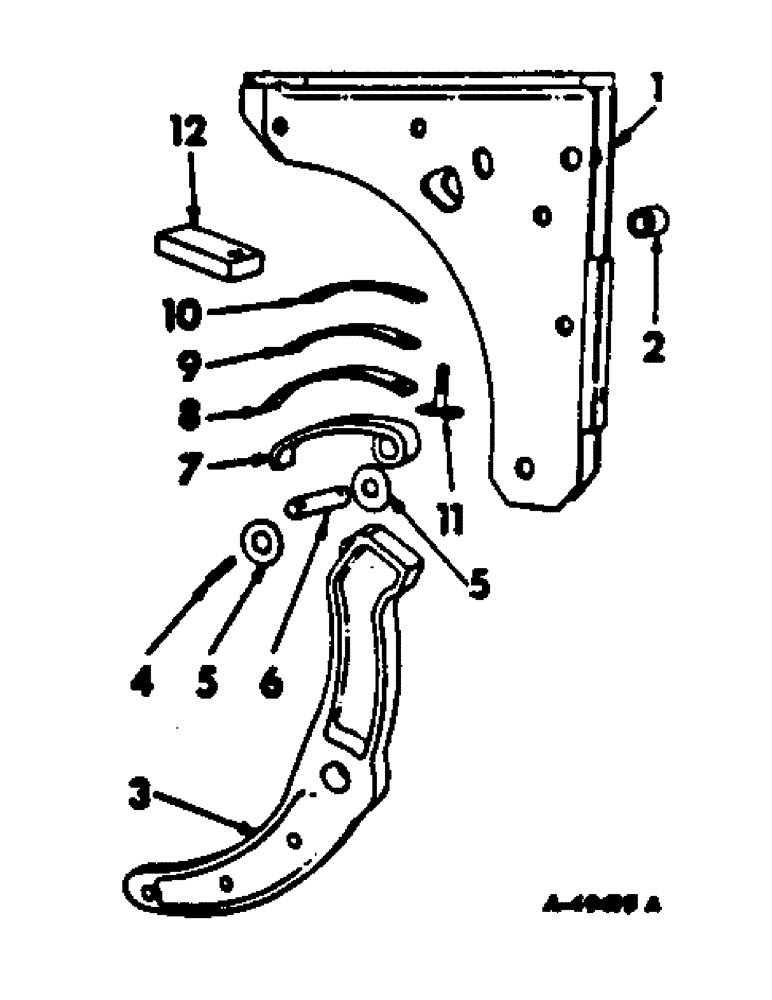

Запчасти Case IH 440 (AT-3) - TRIP BEAM, SPRING

1

56182C1

SIDE ASSY.

PLATE ASSY, side

1шт.

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1.062 x 2 x .108

1шт.

465799R1

BOLT (SPREADER),Hex, 1" x 3 1/2", Drilled

BOLT, 1 x 3-1/2 hex-hd drld pivot mach

1шт.

427652

SLOTTED NUT,1"-14, G5

NUT, 1-14 C-Z slt-hex.

1шт.

137258

COTTER PIN

3/16" x 1 3/4"

1шт.

2

522432R2

SPACER

STOP AND SPACER, beam

1шт.

19544R1

BOLT,Hex, 5/8"-11 x 3 1/4", G2

5/8 x 3-1/4 C-Z hex-hd mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

20511R1

WASHER, 5/8 zn-pltd med lock

1шт.

3

524368R1

BEAM

RH trip

1шт.

4

21649R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

2шт.

5

522473R1

WASHER

49/64 x 1-3/4 x 11 ga

2шт.

6

465801R1

ROLLER

trip spring

1шт.

7

465868R1

SPRING

trip

1шт.

21669R1

HEADED PIN,3/4" x 2 13/16"

PIN, 3/4 x 2-13/16 znp std-hd

1шт.

21636R1

PIN, 1/4 x 1-1/2 C-Z self-opening cot.

1шт.

8

524454R1

VALVE SPRING

SPRING, lower helper

1шт.

9

524453R1

VALVE SPRING

SPRING, middle helper

1шт.

10

524452R1

VALVE SPRING

SPRING, upper helper

1шт.

11

524357R11

BOLT (MACHINE),2 1/2" L

SCREW ASSY, adjusting

1шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

1/2-20 C-Z hex. jam

1шт.

120371

NUT,1/2"-20, G5

1шт.

12

524884R1

BAR

SPACER, 1/2 helper spring

1шт.

526242R1

SHIM

frame rail (as required)

1шт.
