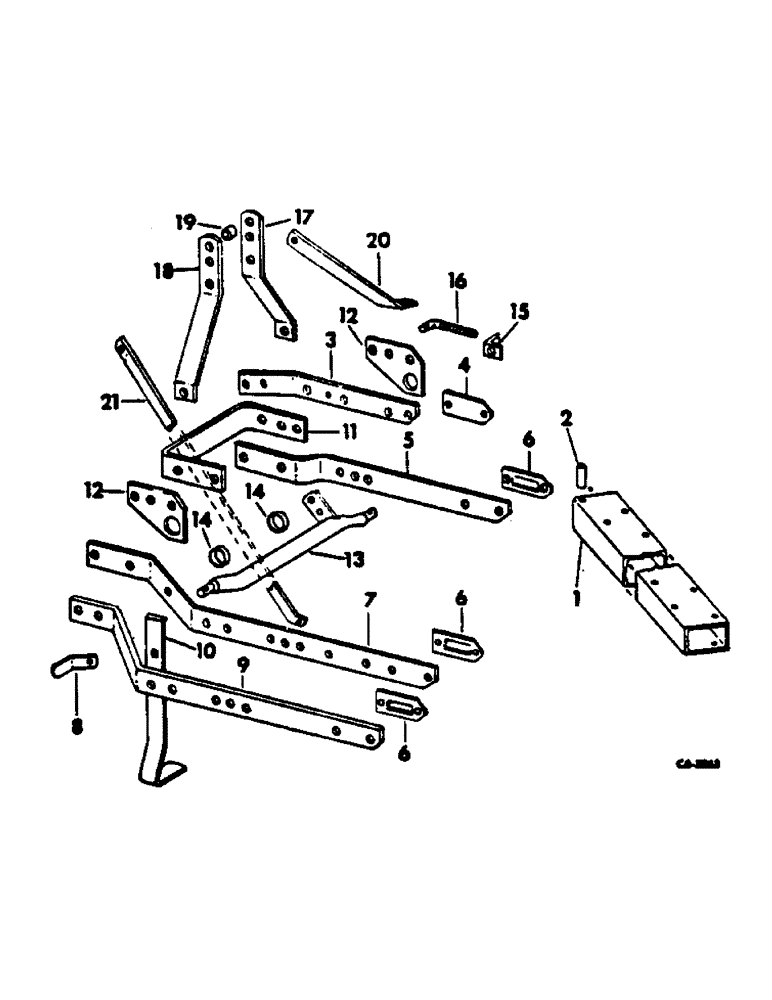

Запчасти Case IH 440 (AT-2) - FRAME AND HITCH

1

56160C1

TUBE, frame, for three furrow

1шт.

1

56161C1

TUBE, frame, for four furrow

1шт.

1

56162C1

TUBE, frame, for five furrow

1шт.

21722R1

BOLT,Hex, 5/8" - 11 x 5 1/4", Gr 5

SCREW, 5/8-11 x 5-1/4 znd hex-hd cap, 11 used for 3 furrow, 15 used for 4 furrow, 17 used for 5 furrow

1шт.

21695R1

BOLT,Hex, 5/8" - 11 x 5 3/4", Gr 5

SCREW, 5/8-11 x 5-3/4 znd hex-hd cap, 1 used for 3 & 4 furrow, 3 used for 5 furrow

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex. lock, 12 used for 3 furrow, 16 used for 4 furrow, 20 used for 5 furrow

1шт.

2

21369R1

SPACER,3/4" Pipe x 3 1/4"

3/4 x 3-1/4 std pipe

2шт.

3

541228R1

RAIL

first

1шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 znd hex-hd cap

1шт.

22297R1

BOLT

SCREW, 5/8-11 x 3-3/4 znd type 8 hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.

4

524597R1

BAR

SPACER, rail

1шт.

5

56164C1

RAIL, second, 16 in.

1шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 znd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.

6

524465R1

SUPPORT

SPACER, rail, 2 used for 3 furrow, 3 used for 4 furrow, 4 used for 5 furrow

1шт.

7

56165C1

RAIL, third, 16 in.

1шт.

271728

SHAFT,Hex, 5/8" - 11 x 3 1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 znd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

SCREW, 3/4-10 x 5 znd hex-hd cap, for five furrow , Course threads

1шт.

271781

BOLT (SPREADER),Hex, 3/4" - 10 x 4 1/2", Gr 5

SCREW, 3/4-10 x 4-1/2 znd hex-hd cap, for three and four furrow

1шт.

23701R1

SCREW, 3/4-10 x 5-3/4 znd type 8 hex-hd cap, for five furrow

1шт.

22376R1

SCREW, 3/4-10 x 5 znd type 8 hex-hd cap, for three and four furrow

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

8

544098R1

SUPPORT

HANDLE, stand, for four and five furrow

1шт.

9

56171C1

RAIL, offset, 16 in., 1 used for 4 furrow, 2 used for 5 furrow

1шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 znd hex-hd cap, 2 used for 4 furrow, 4 used for 5 furrow

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 2 used for 4 furrow, 4 used for 5 furrow 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex., 2 used for 4 furrow, 4 used for 5 furrow

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2 used for 4 furrow, 4 used for 5 furrow Hex, 3/4"-10 x 3", G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 2 used for 4 furrow; 4 used for 5 furrow

1шт.

280954

NUT,3/4"-10, G5

2 used for 4 furrow, 4 used for 5 furrow 3/4"-10, G5

1шт.

10

544099R1

BAR

stand, for four and five furrow

1шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8-11 x 2-1/2 znd sq-nk crg

1шт.

11

541248R1

SPACER

SPREADER, hitch

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 znd hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

12

541247R1

PLATE

crossbar, 2 used for 3 & 4 furrow, 3 used for 5 furrow

1шт.

13

541262R1

BAR

CROSSBAR ASSY, replaces 56176C1

1шт.

14

56172C1

COLLAR ASSY

1шт.

REF ITEM 14-P/N 56172C1 COLLAR ASSY; THIS PART WAS A NON-SERVICE PART OF 61620C91 COLLAR. THIS PART IS NO LONGER AVAILABLE, THIS MACHINE WAS LAST MADE IN 1980. NO PARTS IN DEALER LOCATOR. DLR MUST TRY TO PROCURE LOCALLY, PER CASE# 430614 TO A. JANSSEN. JBEDFORD 6/24/97.

1шт.

20080R1

SET SCREW

1/2-13 x 1-1/4 znp sq-hd cup pt-set

2шт.

15

56163C1

ANCHOR

landing bolt

1шт.

23061R1

BOLT,Hex, 5/8" - 11 x 4", Gr 8

SCREW, 5/8-11 x 4 znd type 8 hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

1шт.

16

56173C1

BOLT,1" - 8 x 5.5"

landing

1шт.

426899

NUT,Jam, 1"-8, G5

1-8 znd hex. jam

2шт.

21635R1

PIN, 1/4 x 1-1/4 self opening C-Z cot.

1шт.

21753R1

WASHER

25/32 x 1-1/2 x 16 ga

1шт.

17

56175C1

BAR, RH mast, for five furrow

1шт.

17

541250R1

BAR

RH mast, for three and four furrow

1шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 4-1/2 znd hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

18

56174C1

BAR, LH mast, for five furrow

1шт.

18

541253R1

BAR

LH mast, for three and four furrow

1шт.

19

56178C1

SPACER, mast, for five furrow

1шт.

19

462425R1

SPACER

mast, for three and four furrow

1шт.

20

56179C1

BRACE, frt mast, for five furrow

1шт.

20

56166C1

BRACE, frt mast, for three and four furrow

1шт.

21

56168C1

BRACE ASSY

1шт.

21229R1

SCREW, 7/8-9 x 5-3/4 znd hex-hd cap

1шт.

131047

WASHER,7/8"

7/8"

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

21

56167C1

BRACE, mast, for three and four furrow

1шт.

21706R1

BOLT,Hex, 3/4" - 10 x 5 3/4", Gr 5

SCREW, 3/4-10 x 5-3/4 znd hex-hd cap

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 znd hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.
