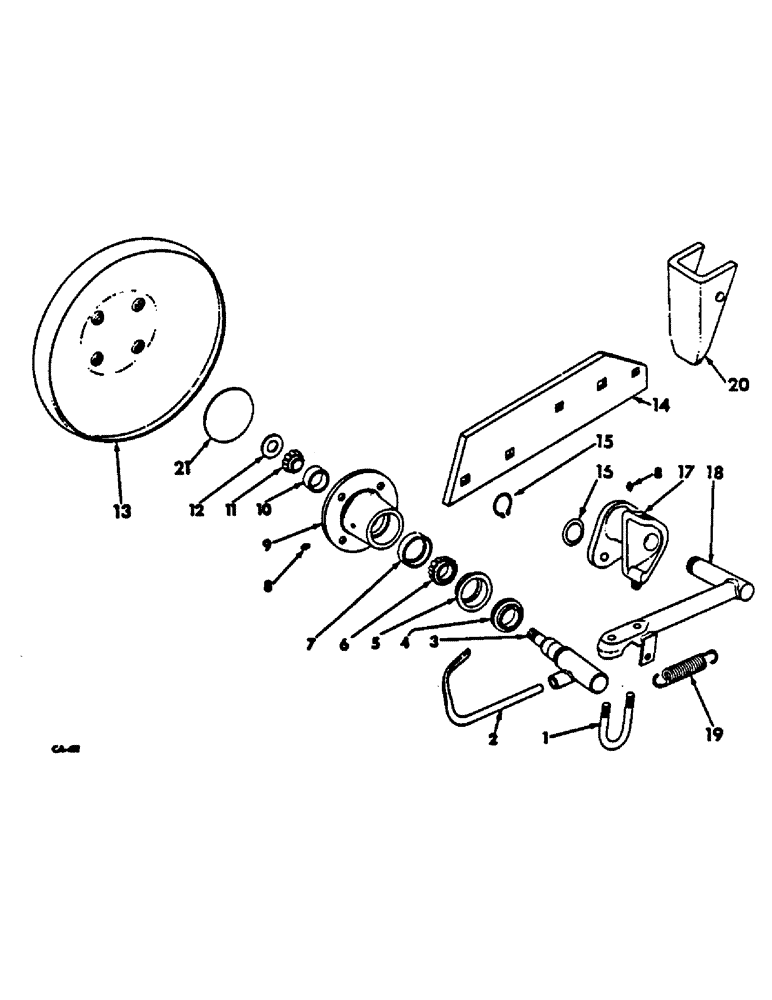

Запчасти Case IH 440 (AT-7) - REAR FURROW WHEEL, SPRING LOADED, PRODUCT GRAPHICS

1

478221R1

BOLT,Plow, 1/2" - 13 x 3.0"

axle support U

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

2

478223R1

KNIFE

BLADE, RH scraper

1шт.

3

478216R91

SPINDLE

ASSY

1шт.

21689R1

SCREW

1/2-13 x 3/4 C-Z sq-hd cup-pt set

1шт.

69442D

NUT

3/4-16 slt hex. jam

1шт.

137218

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

1шт.

4

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

oil

1шт.

5

472222R1

SLEEVE

oil seal

1шт.

6

651818R1

BEARING, inner cone

1шт.

7

651817R1

BEARING CUP

BEARING, inner cup

1шт.

8

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF str lub, in wheel hub and pivot bracket

2шт.

9

478218R2

HUB

furrow wheel

1шт.

19041R1

BOLT,7/16"-14 x 1 1/4", G2, Full Thd

7/16 x 1-1/4 C-Z no. 3 plow

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex.

4шт.

10

651814R1

BEARING CUP

BEARING, outer cup

1шт.

11

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, outer cone

1шт.

11

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

12

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

1шт.

13

478725R1

WHEEL

rear furrow

1шт.

14

478227R1

LANDSIDE

1шт.

478232R1

CARRIAGE BOLT,#3, 7/16" - 14 x 2 1/8", Gr 8

BOLT, 7/16 x 2 no. 3 plow

2шт.

CP15226

PLOW BOLT,5/8" - 11 x 3", Gr 5

BOLT, 5/8 x 3 no. 3 plow

1шт.

19082R1

BOLT,5/8"-11 x 2 1/4", G2

5/8 x 2-1/4 C-Z no. 3 plow

2шт.

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

20511R1

WASHER, 5/8 zn-pltd med lock

2шт.

15

21193R1

SNAP RING,#137. Ext

Ring, Snap, #137, Ext

1шт.

16

566666R1

WASHER

WASHER, 1-13/32 x 2-1/8 x 3/16

1шт.

17

478214R2

PIVOT

rear axle RH

1шт.

478215R1

SCREW, 5/8-11 x 2-1/4 hex-hd cap

1шт.

124847

COLLAR

5/8-11 C-Z hex. jam

1шт.

18

541526R1

AXLE

ASSY, spring loaded furrow wheel RH

1шт.

19

478219R1

SPRING

rear furrow wheel

1шт.

20

542495R1

SUPPORT

STOP, beam

1шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

SCREW, 5/8-11 x 4-1/2 C-Z hex-hd cap

1шт.

20511R1

WASHER, 5/8 zn-pltd med lock

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex.

1шт.

21

41-3044

PLUG,Exp, 2 3/4"

wheel hub expansion

1шт.

547497R91

PACKAGE

model designation, consist of

1шт.

56186C1

PRODUCT GRAPHIC, model designation (NSS)

1шт.

275201R1

PRODUCT GRAPHIC, IH (NSS)

1шт.

547494R91

DECAL

PACKAGE, IH trademark, consist of

1шт.

25571R1

PRODUCT GRAPHIC, International (NSS)

1шт.

547495R91

DECAL

PACKAGE, International, consist of

1шт.

2753186R1

PRODUCT GRAPHIC

bottom instruction (NSS)

1шт.

2754181R1

PRODUCT GRAPHIC, identification no. (NSS)

1шт.
