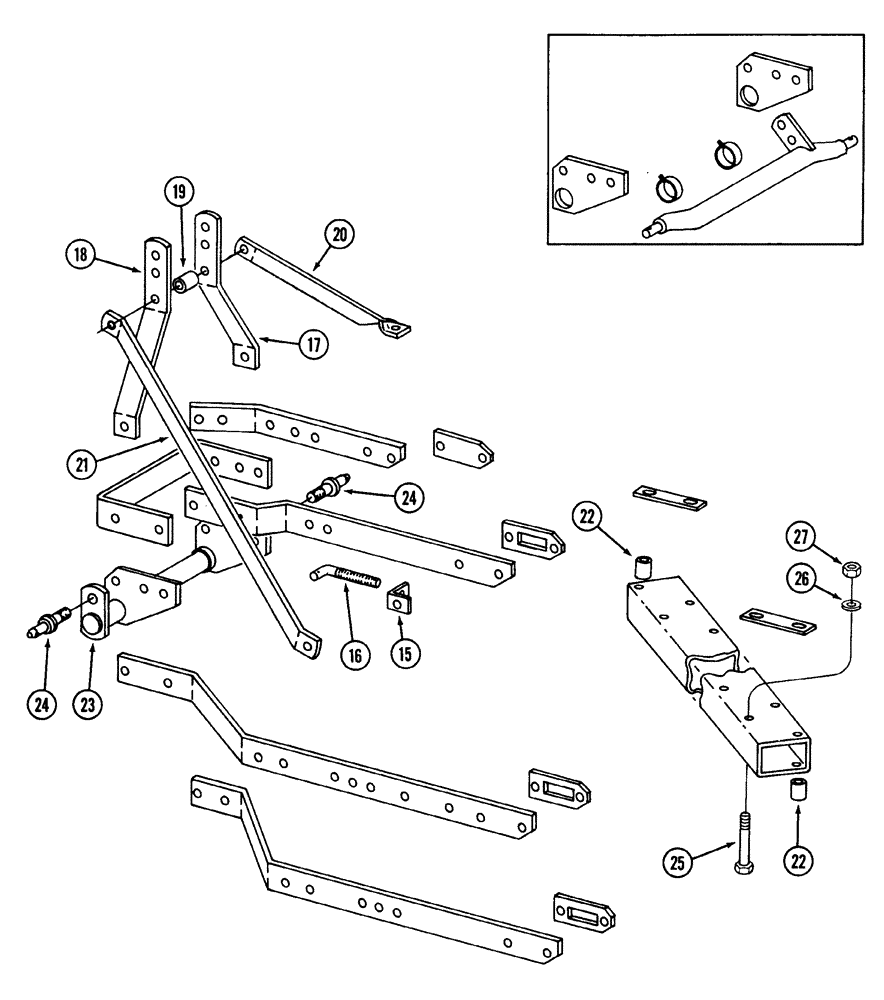

Запчасти Case IH 420 (9-08) - FRAME AND HITCH, CATEGORY II, CONTINUED
№
Артикул
Название
Примечание
Количество
15
541249R1
ANCHOR
landing bolt
1шт.
413-1064
BOLT,Hex, 5/8" - 11 x 4", Gr 5
hex, 5/8 NC x 4 inch
1шт.
492-11062
BEARING WASHER,5/8"
1шт.
425-1010
NUT,5/8"-11, G5
1шт.
16
466939R1
ROD,3/4" - 10 x 7", Steel
BOLT adjusting landing
1шт.
425-1412
JAM NUT,Jam, 3/4"-10, G5
hex, jam 3/4 inch NC
2шт.
432-1620
COTTER PIN,1/4" x 1 1/4"
1шт.
17
541250R1
BAR
mast, right
1шт.
413-1272
BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5
hex, 3/4 NC x 4-1/2 inch
1шт.
492-11075
LOCK WASHER,3/4"
3/4"
1шт.
425-1012
NUT,3/4"-10, G5
1шт.
18
541253R1
BAR
mast, left
1шт.
19
462425R2
SPACER
tubular, upper link
1шт.
20
1284087C1
BRACE
front mast
1шт.
413-1096
BOLT,Hex, 5/8" - 11 x 6", Gr 5
hex, 5/8 NC x 6 inch
1шт.
21
541257R1
BRACE
mast, 3 and 4 furrow, 14 inch frame
1шт.
21
541258R1
BRACE
mast, 3 and 4 furrow, 16 inch frame
1шт.
21
541259R1
BRACE
mast, 5 furrow, 16 inch
1шт.
413-1292
BOLT,Hex, 3/4" -10 x 5-3/4", Gr 5
BOLT hex, 3/4 NC x 5-3/4 inch
1шт.
492-11075
LOCK WASHER,3/4"
3/4"
1шт.
425-1012
NUT,3/4"-10, G5
1шт.
413-1096
BOLT,Hex, 5/8" - 11 x 6", Gr 5
hex, 5/8 NC x 6 inch
1шт.
231-42110
LOCK NUT,Hex, 5/8"-11, GB
1шт.
413-1244
BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5
hex, 3/4 NC x 2-3/4 inch
1шт.
22
1284088C1
SPACER
frame, used with welded main frames, 3 and 4 furrow, 16 inch frames
2шт.
22
21369R1
SPACER,3/4" Pipe x 3 1/4"
tubular, 3/4 x 3-1/4 inch, used with welded main frames, 4 and 5 furrow, 16 inch frames
2шт.
23
1284092C1
CROSSMEMBER
Category II
1шт.
485-15016
SET SCREW,Sq Hd, 1/2"-13 x 1"
set, square head, 1/2 NC x 1 inch, cup point
2шт.
24
472790R2
STUD
PIN hitch, Category II
2шт.
425-1118
NUT,1 1/8"-12, G5
hex, 1-1/8 inch NF
2шт.
492-11112
LOCK WASHER,1 1/8"
1 1/8"
2шт.
25
413-1088
BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5
hex, 5/8 NC x 5-1/2 inch
1шт.
26
524443R1
WASHER,0.66" ID x 1.25" OD x 0.19" Thk
flat, 21/32 x 1-1/4 x 3/16 inch
1шт.
27
231-42110
LOCK NUT,Hex, 5/8"-11, GB
1шт.
Выбрано товаров: 34
