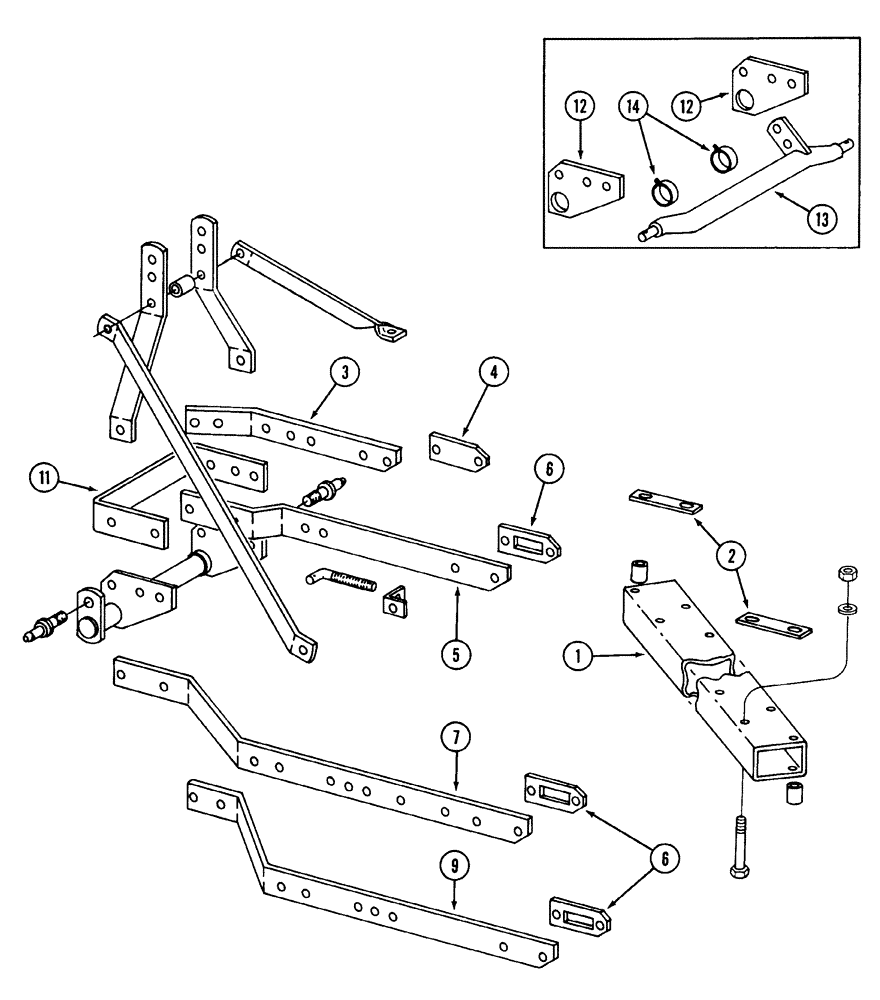

Запчасти Case IH 420 (9-06) - FRAME AND HITCH, CATEGORY II

1

1284074C1

TUBE,1668 mm Length

FRAME main, 3 furrow, 14 inch

1шт.

1

1284075C1

TUBE,1693 mm Length

FRAME main, 3 furrow, 16 inch

1шт.

1

525387R91

SPARE PART main, 4 furrow, 14 inch

1шт.

1

1284076C1

TUBE,236 mm Length

FRAME main, 4 furrow, 16 inch

1шт.

1

1284077C1

FRAME

main, 5 furrow, 16 inch

1шт.

2

524469R1

SPARE PART frame reinforcement, used with welded main frames on 3 furrow models only

2шт.

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

hex, 5/8 NC x 5-1/2 inch

1шт.

558203R1

SPARE PART carriage, 5/8 NC x 5-1/2 inch

3шт.

492-11062

BEARING WASHER,5/8"

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

3

541228R1

RAIL

first

1шт.

4

524597R1

BAR

SPACER rail

1шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

hex, 5/8 NC x 3-1/4 inch

2шт.

492-11062

BEARING WASHER,5/8"

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

5

541251R1

RAIL

second, 14 inch, used with 3 and 4 furrow

1шт.

5

541252R1

RAIL

second, 16 inch, used with 3, 4 and 5 furrow

1шт.

6

524465R1

SUPPORT

SPACER rail

1шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

hex, 5/8 NC x 3-1/4 inch

1шт.

492-11062

BEARING WASHER,5/8"

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

hex, 3/4 NC x 4-1/2 inch

1шт.

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

hex, 3/4 NC x 3 inch

1шт.

326-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 8

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

1шт.

7

541254R1

RAIL

SPARE PART third, 14 inch, used with 3 and 4 furrow

1шт.

7

541255R1

RAIL

third, 16 inch, used with 3, 4 and 5 furrow

1шт.

9

541240R1

SPARE PART extension, 16 in,ch used with 5 furrow

1шт.

9

541241R1

RAIL

extension, 14 and 16 inch, used with 4 furrow

1шт.

11

541248R1

SPACER

SPREADER hitch

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

1шт.

12

58660C1

PLATE

crossbar, used with welded main frames

2шт.

13

NSS

NOT SOLD SEPARAT

CROSSBAR, Category II, used with welded main frames, order 1284092C1, see Figure 9-08, Ref. 23

1шт.

14

PO1887X

COLLAR

ASSY., set used with welded main frames

2шт.

485-15016

SET SCREW,Sq Hd, 1/2"-13 x 1"

set, square head, 1/2 NC x 1 inch, cup point

2шт.
