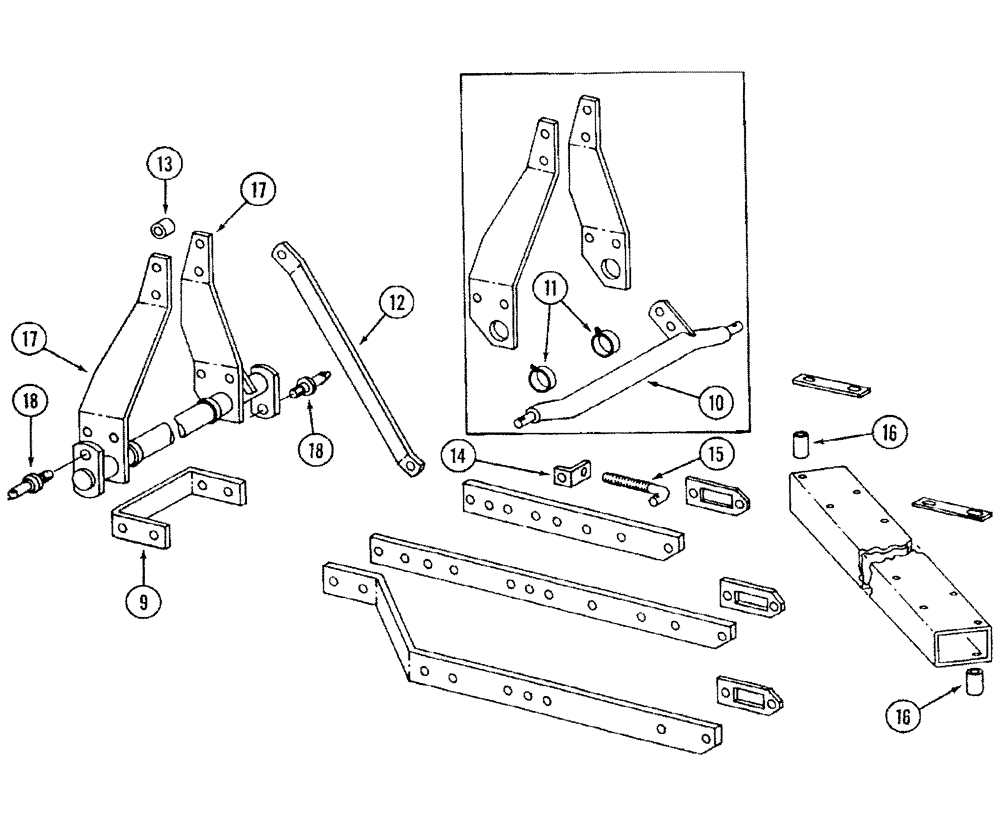

Запчасти Case IH 420 (9-04) - FRAME AND HITCH, CATEGORY I, CONTINUED

9

541236R1

SPACER

SPREADER frame, 14 inch

1шт.

9

541237R1

SPACER

SPREADER frame, 16 inch

1шт.

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

hex, 3/4 NC x 3 inch

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

425-1012

NUT,3/4"-10, G5

2шт.

10

NSS

NOT SOLD SEPARAT

CROSSBAR, Category I, used with welded main frames, order 1284094C1 crossbar, Ref. 17

1шт.

11

PO1887X

COLLAR

ASSY., set used with welded main frames

2шт.

485-15016

SET SCREW,Sq Hd, 1/2"-13 x 1"

set, square head, 1/2 NC x 1 inch, cup point

2шт.

12

541242R1

BRACE

mast

2шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

hex, 3/4 NC x 4 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

425-1012

NUT,3/4"-10, G5

2шт.

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

hex, 3/4 NC x 2-3/4 inch

1шт.

13

526150R1

SPACER

tubular, mast plate

1шт.

14

541243R1

ANCHOR

landing bolt

1шт.

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

hex, 3/4 NC x 2-3/4 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

1шт.

15

466939R1

ROD,3/4" - 10 x 7", Steel

BOLT adjusting landing

1шт.

425-1412

JAM NUT,Jam, 3/4"-10, G5

hex, jam 3/4 inch NC

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

16

1284088C1

SPACER

frame

2шт.

17

1284094C1

CROSSMEMBER

Category I

1шт.

485-15016

SET SCREW,Sq Hd, 1/2"-13 x 1"

set, square head, 1/2 NC x 1 inch, cup point

2шт.

18

470511R1

STUD

PIN hitch, lower, Category I

2шт.

425-1114

NUT,7/8"-14, G5

hex, 7/8 inch NF

2шт.

492-11088

LOCK WASHER,7/8"

7/8"

2шт.
