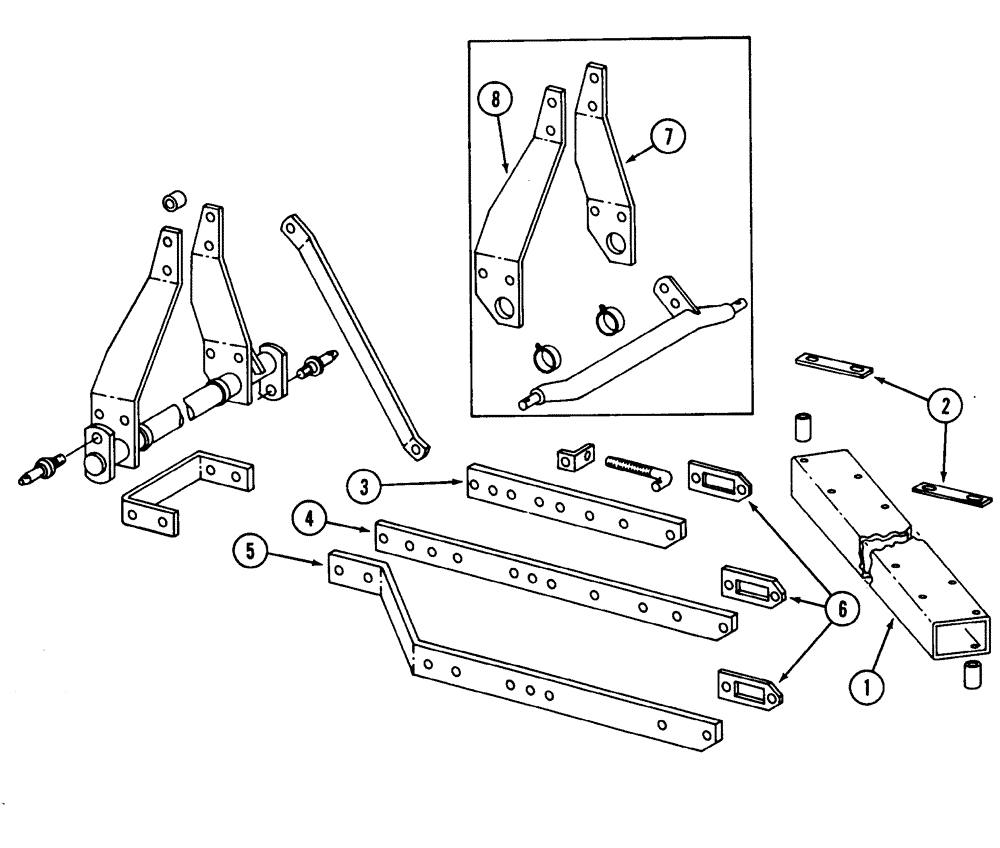

Запчасти Case IH 420 (9-02) - FRAME AND HITCH, CATEGORY I
№
Артикул
Название
Примечание
Количество
1
1284072C1
TUBE,1022 mm Length
FRAME main, 2 furrow, 14 inch
1шт.
1
1284073C1
TUBE
FRAME main, 2 furrow, 16 inch
1шт.
1
1284074C1
TUBE,1668 mm Length
FRAME main, 3 furrow, 14 inch
1шт.
1
1284075C1
TUBE,1693 mm Length
FRAME main, 3 furrow, 16 inch
1шт.
524443R1
WASHER,0.66" ID x 1.25" OD x 0.19" Thk
flat, 21/32 x 1-1/4 x 3/16 inch, 2 furrow
8шт.
524443R1
WASHER,0.66" ID x 1.25" OD x 0.19" Thk
flat, 21/32 x 1-1/4 x 3/16 inch, 3 furrow
12шт.
413-1088
BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5
hex, 5/8 NC x 5-1/2 inch, 2 furrow
8шт.
413-1088
BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5
hex, 5/8 NC x 5-1/2 inch, 3 furrow
12шт.
231-42110
LOCK NUT,Hex, 5/8"-11, GB
2 furrow
8шт.
231-42110
LOCK NUT,Hex, 5/8"-11, GB
3 furrow
12шт.
2
524469R1
SPARE PART frame reinforcement, used with welded main frames
2шт.
558203R1
SPARE PART carriage, 5/8 NC x 5-1/2 inch
4шт.
492-11062
BEARING WASHER,5/8"
4шт.
425-1010
NUT,5/8"-11, G5
4шт.
3
541234R1
RAIL
first
1шт.
413-1052
BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5
hex, 5/8 NC x 3-1/4 inch
2шт.
492-11062
BEARING WASHER,5/8"
2шт.
425-1010
NUT,5/8"-11, G5
2шт.
4
541238R1
RAIL
second
1шт.
413-1052
BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5
hex, 5/8 NC x 3-1/4 inch
2шт.
492-11062
BEARING WASHER,5/8"
2шт.
425-1010
NUT,5/8"-11, G5
2шт.
5
541240R1
SPARE PART extension, 3 furrow, 14 inch
1шт.
5
541241R1
RAIL
extension, 3 furrow, 16 inch
1шт.
413-1052
BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5
hex, 5/8 NC x 3-1/4 inch
2шт.
492-11062
BEARING WASHER,5/8"
2шт.
425-1010
NUT,5/8"-11, G5
2шт.
413-1264
BOLT,Hex, 3/4" - 10 x 4", Gr 5
hex, 3/4 NC x 4 inch, 3 furrow
2шт.
492-11075
LOCK WASHER,3/4"
3/4"
2шт.
425-1012
NUT,3/4"-10, G5
2шт.
413-1248
BOLT,Hex, 3/4" - 10 x 3", Gr 5
hex, 3/4 NC x 3 inch
2шт.
6
524465R1
SUPPORT
SPACER rail
3шт.
7
541235R1
PLATE
mast, RH, used with welded main frames
1шт.
8
541239R1
PLATE
mast, LH, used with welded main frames
1шт.
Выбрано товаров: 34
