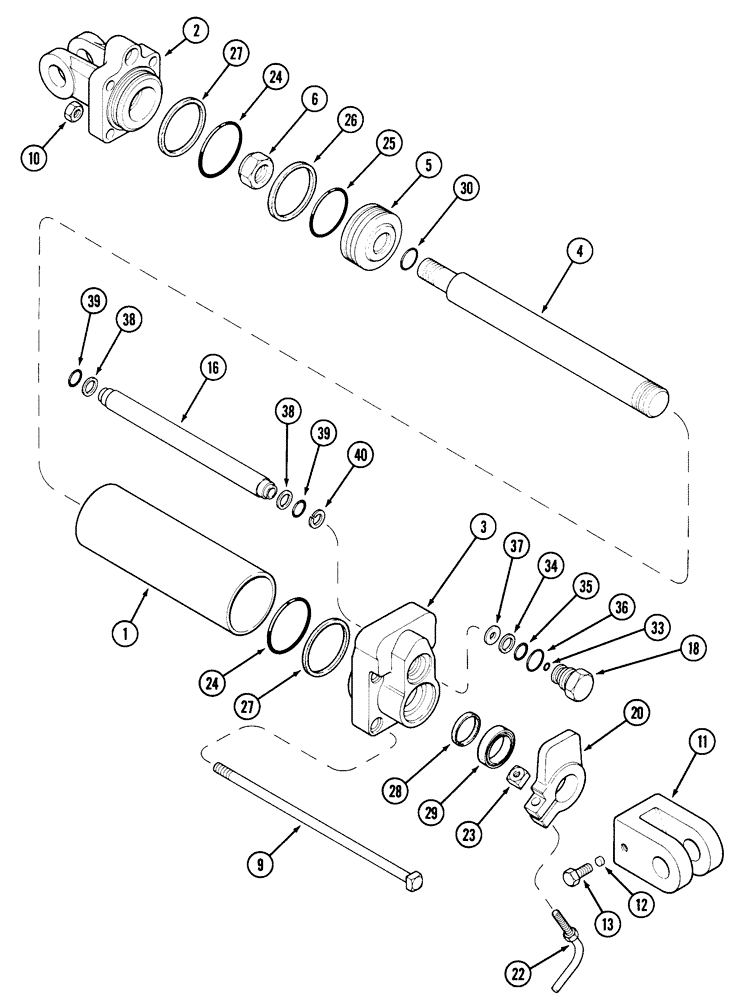

Запчасти Case IH 420 (8-04) - HYDRAULIC CYLINDER, ADJUSTABLE LANDING

145353C91

HYDRAULIC CYLINDER

2-1/2 (64) ID x 8 inch (203 mm) stroke

1шт.

1

NSS

NOT SOLD SEPARAT

BODY cylinder, order 145353C91 cylinder assy.

1шт.

2

145363C1

HEAD

cylinder

1шт.

3

145365C1

END

GLAND cylinder

1шт.

4

145500C1

PISTON ROD

cylinder

1шт.

5

145221C3

PISTON

cylinder

1шт.

6

232-46314

LOCK NUT,7/8"-14, GC

1шт.

9

1260889C1

SQUARE BOLT,7/16" - 14 x 322.94mm

tie, 7/16 inch NC

4шт.

10

425-107

NUT,7/16"-14, G5

4шт.

11

145233C1

CLEVIS,1/4" - 12

rod

1шт.

12

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD insert

1шт.

13

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

16

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

cylinder return

1шт.

18

1260968C91

VALVE

ASSY., stop limiting, Includes: Ref. 33 - 37

1шт.

20

224579C3

ARM

cylinder, depth stop

1шт.

22

1263435C91

ADJUSTMENT SCREW

adjusting L-type

1шт.

23

1266705C1

SQUARE NUT

square, 5/16 inch NC

1шт.

79975C2

SEAL KIT

KIT replacement, Includes: Ref. 24 - 30

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING, 2-1/4 ID x 1/8 inch

2шт.

25

NSS

NOT SOLD SEPARAT

O-RING, 2-1/16 ID x 3/32 inch

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

27

NSS

NOT SOLD SEPARAT

RING backup

2шт.

28

NSS

NOT SOLD SEPARAT

SEAL rod

1шт.

29

NSS

NOT SOLD SEPARAT

WIPER rod

1шт.

30

NSS

NOT SOLD SEPARAT

O-RING piston rod

1шт.

1272597C91

KIT

seal replacement, valve and return tube, Includes: Ref. 33 - 40

1шт.

33

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

34

224301C1

BACK-UP RING

1шт.

35

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

36

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

37

NSS

NOT SOLD SEPARAT

WASHER backup

1шт.

38

371218R2

BACK-UP RING,0.594" ID x 0.36" Width

RING backup

2шт.

39

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

40

492-11038

LOCK WASHER,3/8"

1шт.
