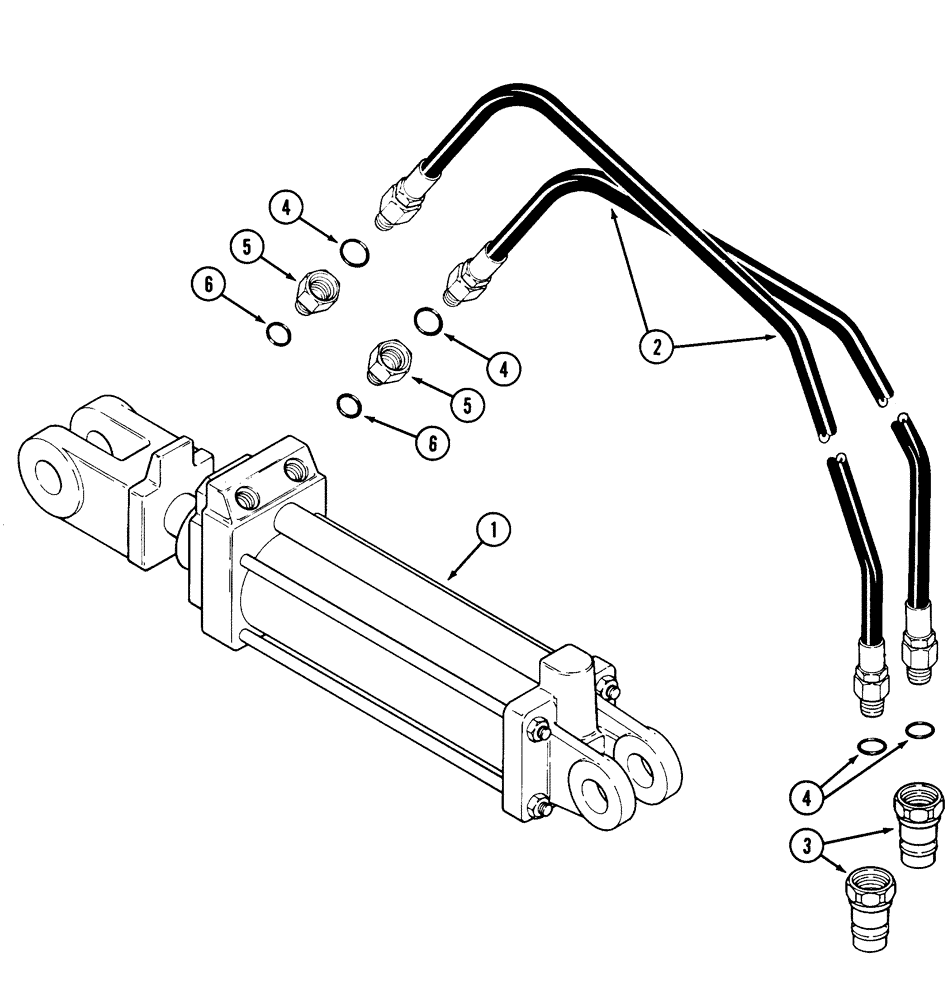

Запчасти Case IH 420 (8-02) - HYDRAULIC CIRCUIT, ADJUSTABLE LANDING

1

145353C91

HYDRAULIC CYLINDER

2-1/2 (64) ID x 8 in (203 mm) stroke hydraulic, see Figure 8-04

1шт.

2

407091R91

HOSE

48 inch (1219 mm) long

2шт.

3

1272399C2

QUICK MALE COUPLING

self-sealing, male 7/8 inch NF

2шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

5

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ADAPTER, straight 3/4-16 male x 7/8-14 inch female O-ring boss

2шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.
