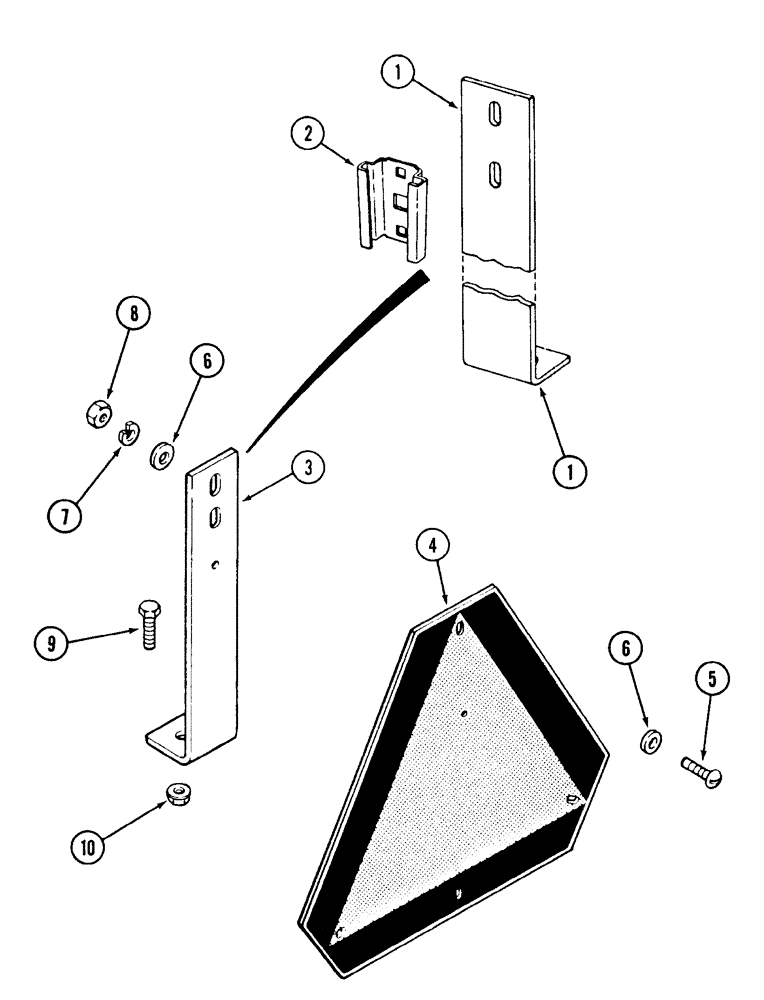

Запчасти Case IH 420 (9-26) - SLOW MOVING VEHICLE EMBLEM

1

131946C1

SUPPORT

BRACKET mounting

1шт.

Used on machines built prior to June 1983

1шт.

2

A59457

BRACKET

mounting, SMV emblem

1шт.

Used on machines built prior to June 1983

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

Used on machines built prior to June 1983

1шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

flat, 11/32 x 3/4 x 3/64 inch

1шт.

Used on machines built prior to June 1983

1шт.

492-11031

LOCK WASHER,5/16"

1шт.

Used on machines built prior to June 1983

1шт.

425-105

NUT,5/16"-18, G5

1шт.

Used on machines built prior to June 1983

1шт.

3

131946C1

SUPPORT

BRACKET mounting

1шт.

4

202013C2

TRAFFIC SIGN

EMBLEM slow moving vehicle

1шт.

5

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

2шт.

6

495-31022

WASHER,#10

4шт.

7

492-11010

LOCK WASHER,#10

2шт.

8

225-14210

NUT,#10-32

2шт.

9

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

1шт.

10

231-42110

LOCK NUT,Hex, 5/8"-11, GB

1шт.
