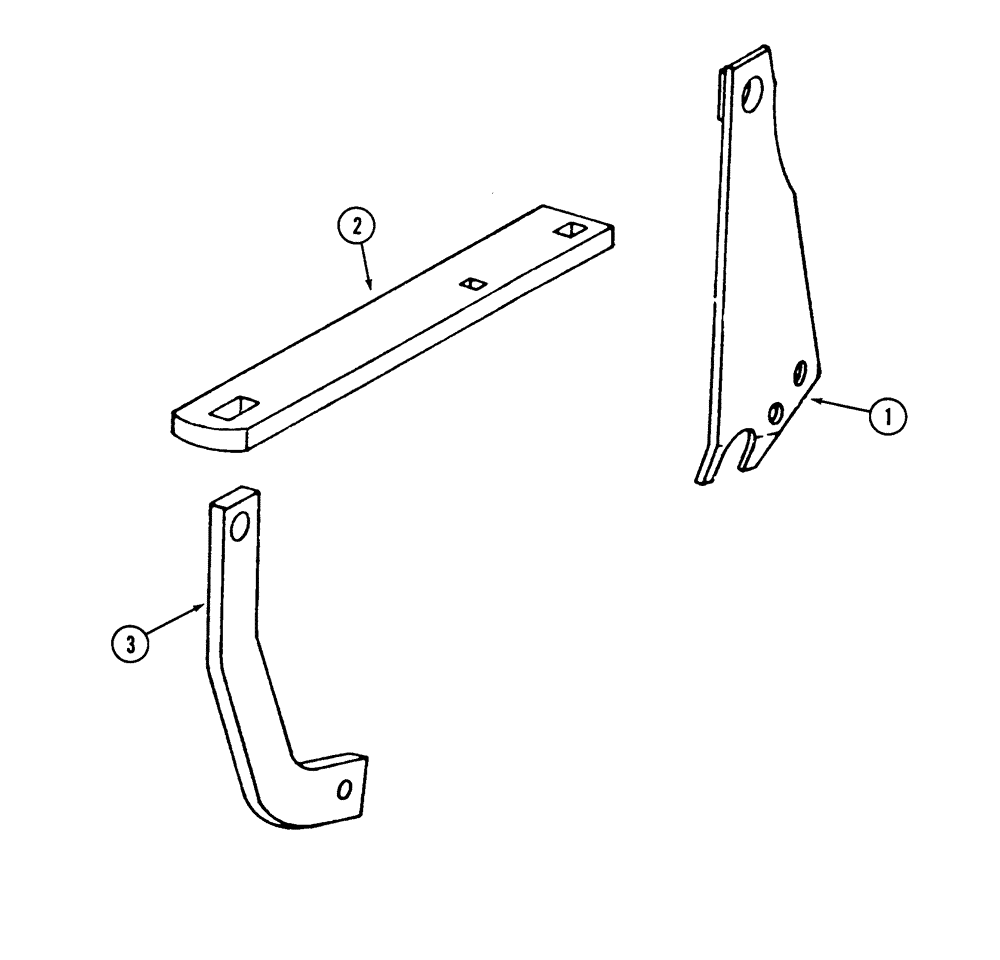

Запчасти Case IH 420 (9-24) - HYDRAULIC LANDING ATTACHMENT

1

541266R1

SPARE PART ASSY., hydraulic landing

1шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

425-1012

NUT,3/4"-10, G5

2шт.

2

541268R1

SPARE PART hydraulic landing

1шт.

521530R1

BOLT carriage, 5/8 NC x 5-3/4 inch

2шт.

492-11062

BEARING WASHER,5/8"

2шт.

425-1010

NUT,5/8"-11, G5

hex, 3/8 inch NC

2шт.

3

541267R1

SPARE PART hydraulic landing

1шт.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

hex, 5/8 NC x 4-1/4 inch

1шт.

492-11062

BEARING WASHER,5/8"

1шт.

425-1010

NUT,5/8"-11, G5

1шт.
