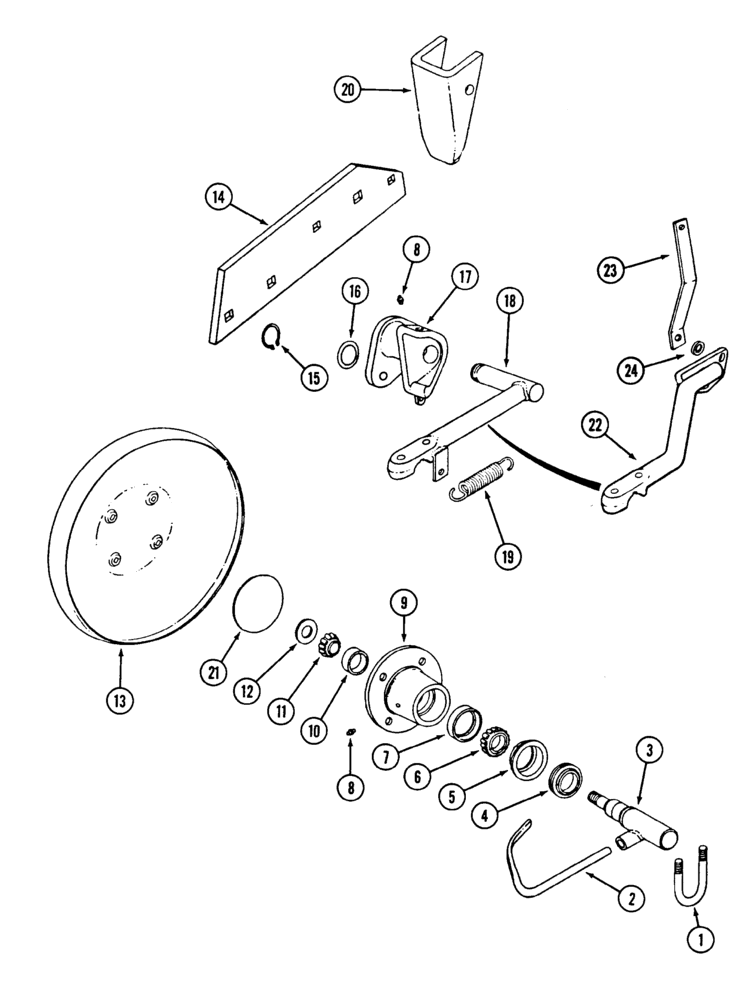

Запчасти Case IH 420 (9-22) - REAR FURROW WHEEL

1

478221R1

BOLT,Plow, 1/2" - 13 x 3.0"

U, 1/2 inch NC

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

425-108

NUT,1/2" - 13, Gr 5

2шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

flat, 21/32 x 1-1/2 x 7/64 inch

2шт.

2

478223R1

KNIFE

BLADE scraper

1шт.

3

478216R91

SPINDLE

rear furrow wheel

1шт.

69442D

NUT

hex, slotted, 3/4 inch NF

1шт.

432-1020

COTTER PIN,5/32" x 1 1/4"

1шт.

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

set, square head, 1/2 NC x 3/4 inch, cup point

1шт.

4

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

oil

1шт.

5

472222R1

SLEEVE

oil seal

1шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

tapered roller

1шт.

7

651817R1

BEARING CUP

CUP tapered roller

1шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

9

122711C1

HUB

wheel

1шт.

62177C1

PLOW BOLT

BOLT flat head, square neck, 7/16 NC x 1-1/4 inch

4шт.

492-11044

LOCK WASHER,7/16"

4шт.

429-107

NUT,7/16"-14, G8

4шт.

10

651814R1

BEARING CUP

tapered roller

1шт.

11

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

tapered roller

1шт.

11

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

12

495-81042

WASHER,25/32" x 1 1/2" x .120"

flat, 25/32 x 1-1/2 x 7/64 inch

1шт.

13

542488R1

WHEEL

furrow, rear

1шт.

14

478227R1

LANDSIDE

RH

1шт.

62179C1

PLOW BOLT

BOLT flat head, square neck, 7/16 NC x 2-1/8 inch

2шт.

633661R1

CARRIAGE BOLT,#3, 5/8" - 11 x 3"

flat head, square neck, 5/8 NC x 3 inch

2шт.

118-423

PLOW BOLT,5/8"-11 x 2 1/2", G5

plow, 5/8 NC x 2-1/2 inch

1шт.

231-1447

NUT,7/16"-14, GB

2шт.

492-11062

BEARING WASHER,5/8"

3шт.

425-1010

NUT,5/8"-11, G5

3шт.

15

103-16137

SNAP RING,#137. Ext

1шт.

16

566666R1

WASHER

WASHER flat, 1-13/32 x 2-1/8 x 3/16 inch

1шт.

17

542330R1

PIVOT

rear axle

1шт.

478215R1

SPARE PART hex, 5/8 NC x 2-1/4 inch

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

hex, jam, 5/8 inch, NC

1шт.

18

541526R1

AXLE

furrow wheel, replaced by Ref. 22

1шт.

19

478219R1

SPRING

rear furrow wheel

1шт.

20

542495R1

SUPPORT

STOP beam

1шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

492-11062

BEARING WASHER,5/8"

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

21

41-3044

PLUG,Exp, 2 3/4"

1шт.

22

488423R1

SUPPORT

axle, replaces Ref. 18, use with Ref. 23 and 24

1шт.

23

488338R1

SUPPORT

reinforcing strap, use with Ref. 22 and 24

1шт.

24

523011R1

WASHER

serrated, use with Ref. 22 and 23

2шт.
