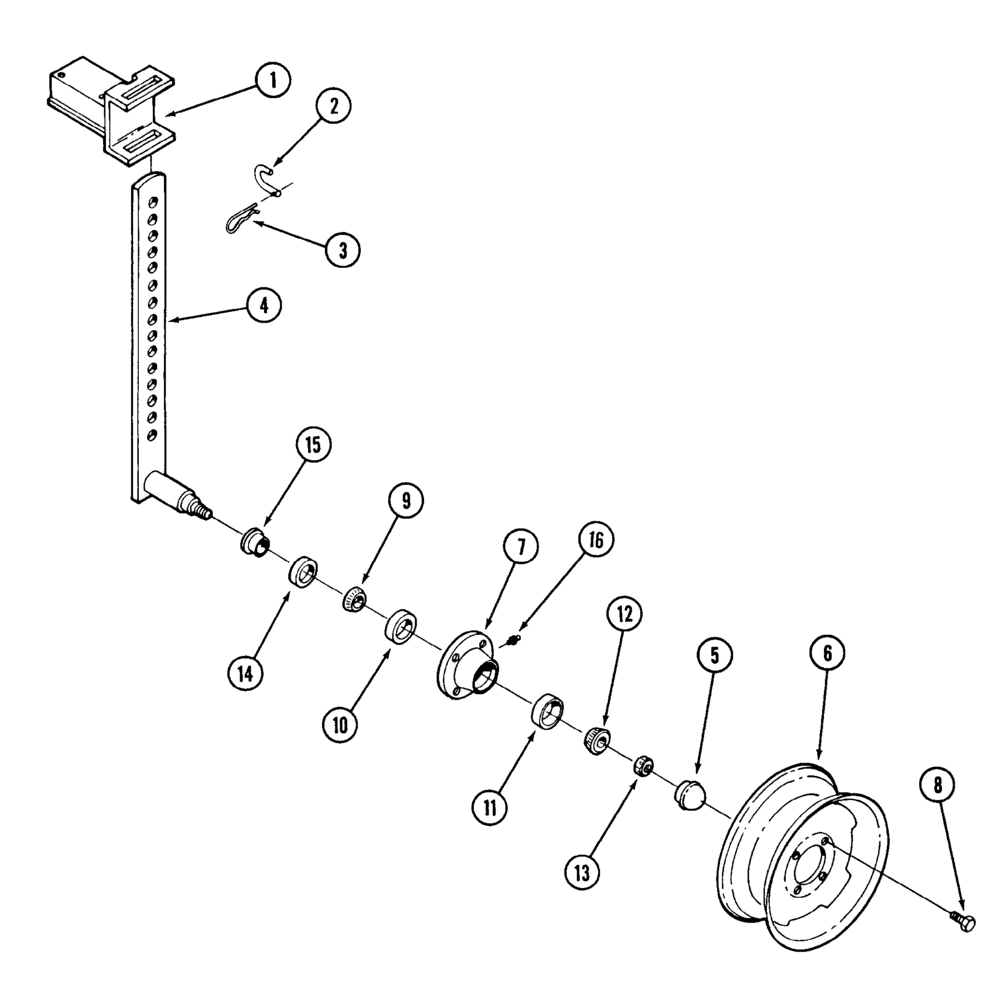

Запчасти Case IH 420 (9-20) - GAUGE WHEEL ASSEMBLY

1

56183C1

BRACKET

gauge wheel

1шт.

413-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 5

BOLT hex, 5/8 NC x 7-1/2 inch

1шт.

413-1092

SCREW,Hex, 5/8" - 11 x 5 3/4", Gr 5

BOLT hex, 5/8 NC x 5-3/4 inch

1шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

flat, 21/32 x 1-1/2 x 7/64 inch

1шт.

231-42110

LOCK NUT,Hex, 5/8"-11, GB

1шт.

2

520620R1

AXLE PIN

retaining

1шт.

3

1978738C1

HAIR PIN COTTER

1шт.

4

467474R92

SUPPORT ASSY.

ARM gauge wheel

1шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

flat, special, 25/32 x 1/4 x 1/8 inch

1шт.

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

5

651194R1

CAP

wheel hub

1шт.

6

455169R92

WHEEL

15 x 4-1/2 inch

1шт.

810769C1

VALVE

inflation tubeless tire, steel

1шт.

6

463036R1

WHEEL (STEERING)

14 x 5 inch

1шт.

7

472220R2

HUB

wheel

1шт.

8

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

hex, conical, 1/2 NF x 15/16 inch

4шт.

9

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

tapered roller, inner

1шт.

10

651817R1

BEARING CUP

CUP tapered roller, inner

1шт.

11

651814R1

BEARING CUP

tapered roller, outer

1шт.

12

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

tapered roller, outer

1шт.

12

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

13

69442D

NUT

hex, slotted, 3/4 inch NF

1шт.

14

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

oil

1шт.

15

472222R1

SLEEVE

oil seal

1шт.

16

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.
