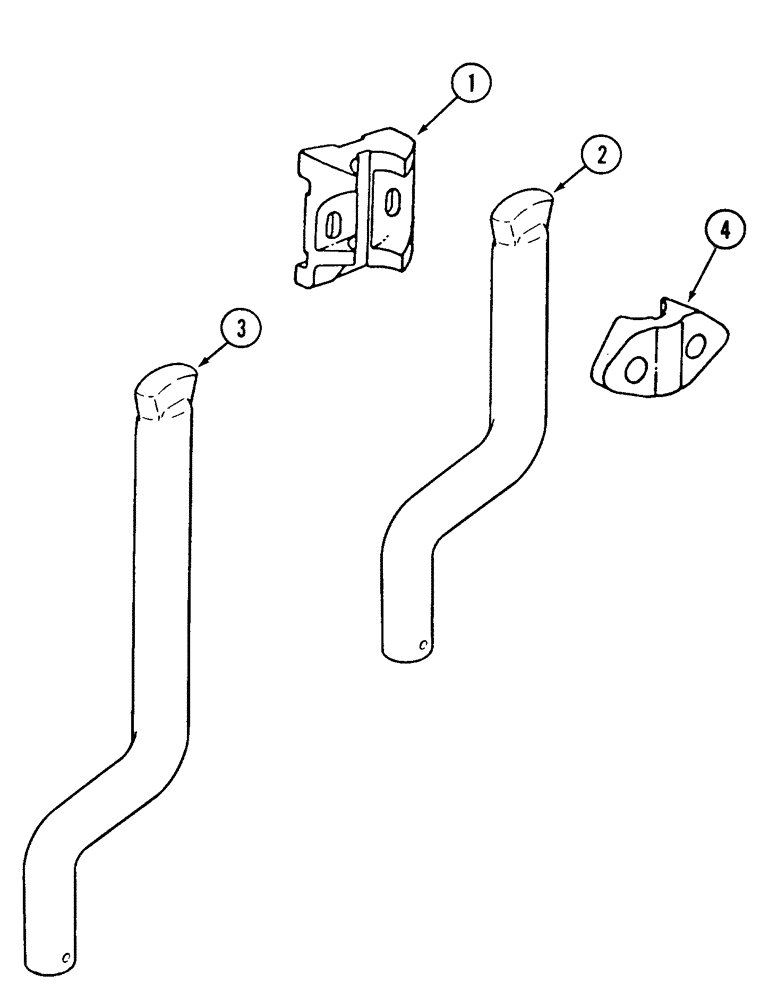

Запчасти Case IH 420 (9-18) - COULTER SHANKS AND CLAMPS

1

524456R3

CLAMP

coulter

1шт.

2

541265R1

SHANK

coulter mounting, used on the first coulter only

1шт.

3

522434R1

STEM

SHANK coulter mounting, used on other than first coulter

1шт.

432-2036

COTTER PIN,5/16" x 2 1/4"

5/16" x 2 1/4"

1шт.

4

524492R1

CLAMP

CAP front coulter, replaces U-bolt

1шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

Replaces U-bolt

2шт.

425-1010

NUT,5/8"-11, G5

2шт.
