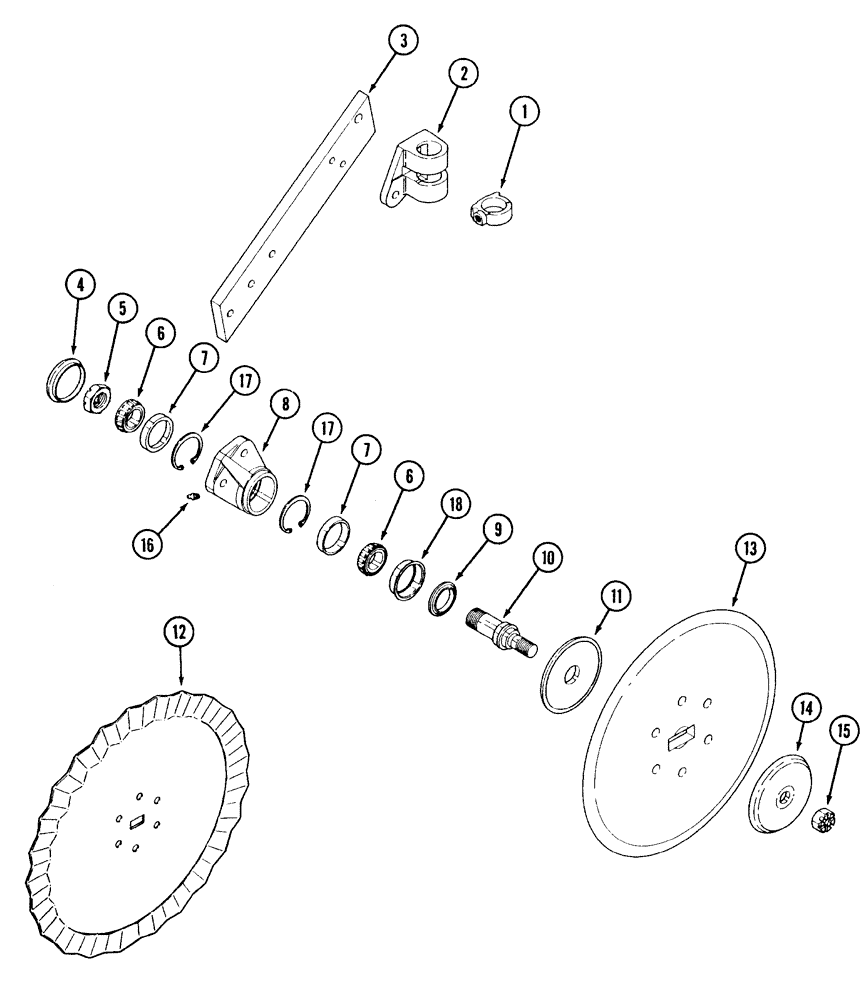

Запчасти Case IH 420 (9-16) - ROLLING COULTER, SHEAR BOLT TYPE

1

523345R21

COLLAR CLAMP

stop

1шт.

485-15020

SET SCREW,Sq Hd, 1/2"-13 x 1 1/4"

set, square head, 1/2 NC x 1-1/4 inch, cup point

1шт.

2

462273R3

SUPPORT ASSY.

BEARING coulter arm

1шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 inch

1шт.

231-14110

LOCK NUT,5/8"-11, GB

hex, self lockiing, NC

1шт.

414-728

BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5

BOLT hex, 7/16 NF x 1-3/4 inch

1шт.

492-11044

LOCK WASHER,7/16"

1шт.

425-117

NUT,7/16"-20, G5

1шт.

3

131517C92

LEVER

ARM ASSY., coulter

1шт.

M906

HEADED PIN,7/16" x 1 1/8"

clevis, 7/16 x 1-1/8 inch

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

4

518842R1

CAP

hub

1шт.

5

519250R1

SLOTTED NUT

hex, slotted, 1-1/4 inch NF

1шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

tapered roller

2шт.

7

651817R1

BEARING CUP

CUP tapered roller

2шт.

8

541482R1

BEARING HOUSING,2.3275" ID x 3" OD x 2.44"

HOUSING bearing

1шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

425-108

NUT,1/2" - 13, Gr 5

2шт.

9

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

oil

1шт.

10

541480R1

SPINDLE

coulter

1шт.

432-1224

COTTER PIN,3/16" x 1-1/2"

1шт.

432-828

COTTER PIN,1/8" x 1 3/4"

1шт.

11

523020R3

SUPPORT ASSY.

disk, inside

1шт.

12

469191R3

BLADE

DISK coulter, rippled edge, 17 inch

1шт.

13

523025R2

HALF BLADE

DISK coulter, plain edge, 17 inch

1шт.

14

523021R2

SUPPORT ASSY.

disk, outside

1шт.

15

429-1314

NUT,7/8"-14, G8

hex, 7/8 inch NF, grade 8

1шт.

16

219-43

LUBE NIPPLE,65 Degree Elbow, 1/4" - 28 NPTF

grease, 65°, 1/4-28 taper x 3/4 inch

1шт.

17

100-21231

SNAP RING,2.312", Int, #231

2шт.

18

472222R1

SLEEVE

oil seal

1шт.

549827R92

HUB CAP

SPINDLE ASSY., coulter, Includes: Ref. 4 through 432-828, Ref. 16 and 18

1шт.
