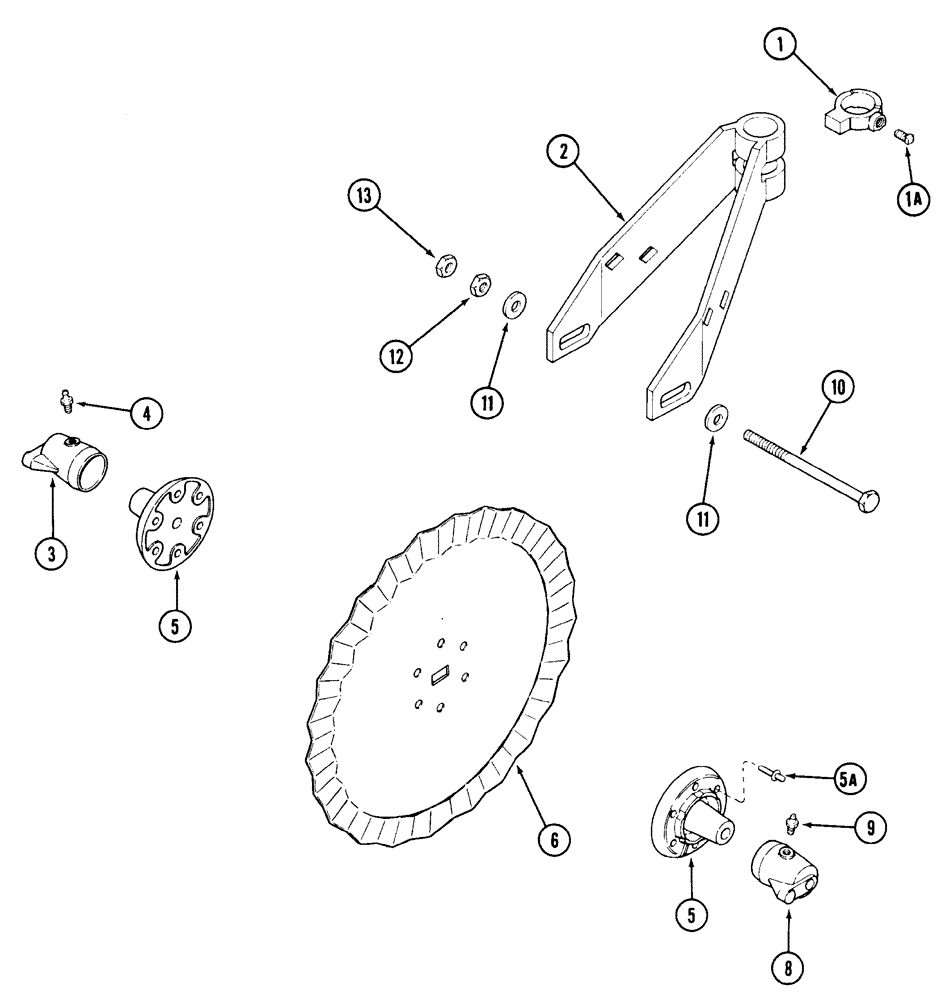

Запчасти Case IH 420 (9-14) - ROLLING COULTER, YOKE TYPE

1

519345R31

COLLAR

stop, Includes: Ref. 1A

1шт.

1a

485-15016

SET SCREW,Sq Hd, 1/2"-13 x 1"

set, square head, 1/2 NC x 1 inch, cup point

1шт.

2

522252R93

YOKE

UNIVERSAL JOINT YOKE coulter

1шт.

3

521157R11

BUSHING

LH, Includes: Ref. 4

1шт.

4

219-15

LUBE NIPPLE,5/16" NPTF

grease, straight 5/16 drive type x 5/16 inch

1шт.

5

468727R1

HUB

disk

2шт.

5a

45-528

RIVET,But Hd, 5/16" x 1 3/4"

round head 5/16 x 1-3/4 inch

6шт.

6

469191R3

BLADE

DISK coulter, rippled edge, 17 inch

1шт.

6

523025R2

HALF BLADE

DISK coulter, plain edge, 17 inch, not illustrated

1шт.

8

521158R11

BUSHING

RH, Includes: Ref. 9

1шт.

9

219-15

LUBE NIPPLE,5/16" NPTF

grease, straight 5/16 drive type x 5/16 inch

1шт.

10

13-8124

BOLT,Hex, 1/2" - 13 x 7-3/4", Gr 5

BOLT hex, 1/2 NC x 7-3/4 inch

1шт.

11

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

12

425-108

NUT,1/2" - 13, Gr 5

1шт.

13

425-148

JAM NUT,Jam, 1/2"-13, G5

1шт.
