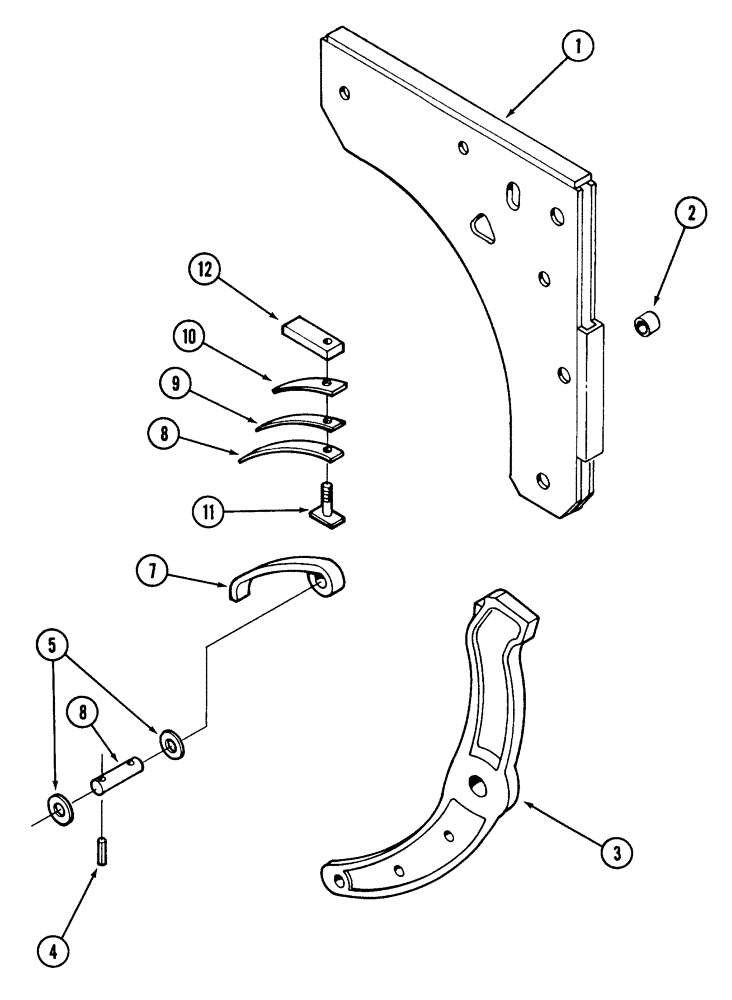

Запчасти Case IH 420 (9-12) - SPRING TRIP BEAM

1

524450R92

PLATE

mounting

1шт.

465799R2

BOLT

BOLT hex, special

1шт.

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1шт.

25-1316

NUT,1"-14, G5

1шт.

432-1228

COTTER PIN,3/16" x 1 3/4"

1шт.

2

522432R2

SPACER

tubular beam

1шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

hex, 5/8 NC x 3-1/4 inch

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

492-11062

BEARING WASHER,5/8"

1шт.

3

465800R2

BEAM

trip, RH

1шт.

3

468843R1

SPARE PART trip, RH, shear pin style

1шт.

468868R2

PIN,14.28mm OD x 83.31mm L

shear

2шт.

4

438-11624

ROLL PIN,6.35mm OD x 38.1mm L

1/4" x 1 1/2", Slotted

2шт.

5

522473R1

WASHER

flat, 49/64 x 1-3/4 x 1/8 inch

2шт.

6

465801R1

ROLLER

trip spring

1шт.

7

465868R1

SPRING

trip

1шт.

21669R1

HEADED PIN,3/4" x 2 13/16"

clevis, 3/4 x 2-13/16 inch

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

8

524454R1

VALVE SPRING

helper, lower

1шт.

9

524453R1

VALVE SPRING

helper, middle

1шт.

10

524452R1

VALVE SPRING

helper, upper

1шт.

11

524357R11

BOLT (MACHINE),2 1/2" L

SCREW adjusting

1шт.

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

425-118

NUT,1/2"-20, G5

1шт.

12

524884R1

BAR

SPACER, 1/2 inch thick helper spring

1шт.

12

524594R1

BAR

SPACER, 1/4 inch thick helper spring

1шт.
