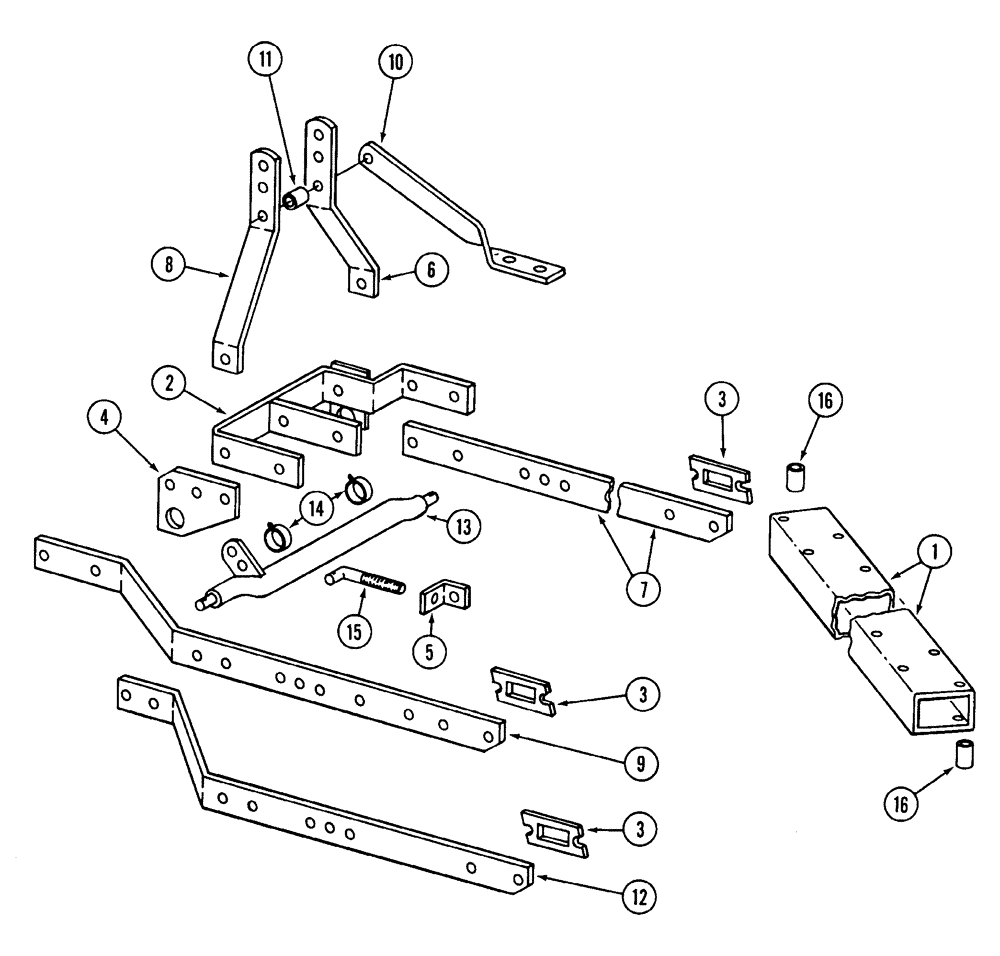

Запчасти Case IH 420 (9-10) - FRAME AND HITCH, CATEGORY II, WIDE TREAD

1

1284076C1

TUBE,236 mm Length

FRAME main, 4 furrow, 16 inch

1шт.

1

1284077C1

FRAME

main, 5 furrow, 16 inch

1шт.

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

hex, 5/8 NC x 5-1/2 inch

1шт.

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

flat, 21/32 x 1-1/4 x 3/16 inch

1шт.

231-42110

LOCK NUT,Hex, 5/8"-11, GB

1шт.

2

100603C1

SLINGER

SPREADER hitch

1шт.

3

524465R1

SUPPORT

SPACER rail

1шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

hex, 5/8 NC x 3-1/4 inch

1шт.

492-11062

BEARING WASHER,5/8"

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

4

58660C1

PLATE

crossbar

2шт.

5

56163C1

ANCHOR

landing bolt

1шт.

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

1шт.

492-11062

BEARING WASHER,5/8"

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

6

100609C1

BAR

mast, RH

1шт.

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

BOLT hex, 3/4 NC x 3-1/4 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

1шт.

100607C1

BAR

second frame rail

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

425-1012

NUT,3/4"-10, G5

2шт.

8

100608C1

BAR

mast, LH

1шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

hex, 3/4 NC x 4 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

1шт.

9

100602C1

RAIL

third

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

1шт.

10

100610C1

BRACE

mast

1шт.

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

hex, 5/8 NC x 6 inch

2шт.

231-42110

LOCK NUT,Hex, 5/8"-11, GB

2шт.

11

100611C1

SPACER

mast

1шт.

25911R1

BOLT,Hex, 7/8" - 9 x 4 1/2", Gr 8

hex, 7/8 NC x 4-1/2 inch, grade 8

1шт.

19749R1

LOCK NUT,7/8"-9, GB

hex, self-locking, 7/8 inch NC

1шт.

12

541241R1

RAIL

extension

1шт.

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

hex, 3/4 NC x 3 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

1шт.

13

100600C1

BAR

CROSS, Category II

1шт.

14

PO1887X

COLLAR

ASSY., set

2шт.

PO1887

COLLAR set

1шт.

485-15016

SET SCREW,Sq Hd, 1/2"-13 x 1"

set, square head, 1/2 NC x 1 inch, cup point

1шт.

15

56173C1

BOLT,1" - 8 x 5.5"

adjusting landing

1шт.

425-1414

JAM NUT,Jam, 7/8"-9, G5

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

16

21369R1

SPACER,3/4" Pipe x 3 1/4"

tubular, 3/4 x 3-1/4 inch, used with welded main frames

2шт.
