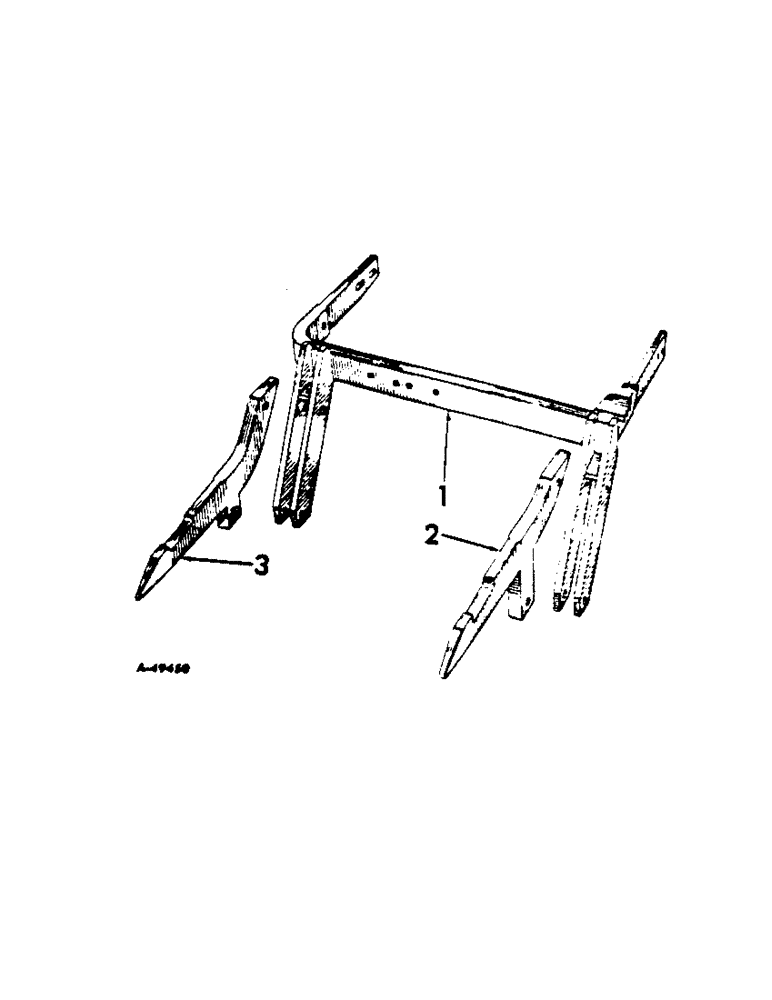

Запчасти Case IH 411 (V-03[A]) - COUPLING BEAMS AND FRAMES, 1961 TO 1966

1

525454R91

FRAME, coupling beam attaching, 14 in.

1шт.

1

523886R91

FRAME, coupling beam attaching, 16 in.

1шт.

2

522973R11

BEAM, left coupling

1шт.

524532R1

7/8 x 3-1/16 HD PIN

2шт.

1/4 x 1-1/2 SELF-OPENING COT PIN

2шт.

29/32 x 1-1/2 x 16 GA WASHER

1шт.

3

522972R11

BEAM, right coupling

1шт.

524532R1

7/8 x 3-1/6 HD PIN

2шт.

1/4 x 1-1/2 SELF-OPENING COT PIN

2шт.

29/32 x 1-1/2 x 16 GA WASHER

1шт.
