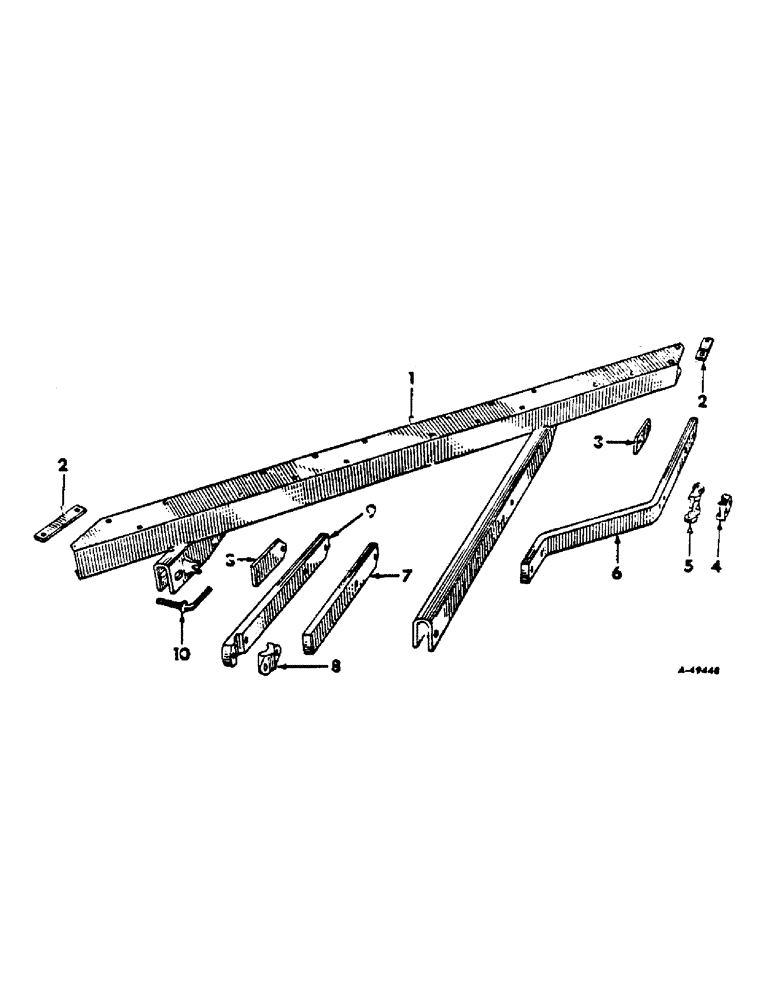

Запчасти Case IH 411 (V-02) - FRAME

1

525996R91

FRAME, main, 12 in., Serial Range: 1961-1962

1шт.

1

525450R91

FRAME, main, 14 in.

1шт.

1

525453R91

FRAME, main, 16 in.

1шт.

525184R1

5/8 x 5-1/4 CRG BOLT

12шт.

5/8 LOCK WASHER

12шт.

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

BEAM UNIT WASHER

12шт.

2

524469R1

STRAP, main frame reinforcing

2шт.

521530R1

5/8 x 5-3/4 CRG BOLT

4шт.

5/8 LOCK WASHER

4шт.

3

524465R1

SUPPORT

SPACER, frame rail

4шт.

5/8 x 3-1/4 CAP SCREW

8шт.

5/8 NUT

8шт.

5/8 LOCK WASHER

8шт.

4

524492R1

CLAMP

CAP, colter clamp

1шт.

5

524457R3

STAPLE

CLAMP, offset frame rail colter

1шт.

6

525445R1

RAIL, frame offset, 14 in.6

1шт.

6

525444R1

RAIL, frame offset, 16 in.

1шт.

5/8 x 2-1/4 MACH BOLT

4шт.

5/8 NUT

4шт.

5/8 LOCK WASHER

4шт.

7

525435R1

BAR, support, combination colter and jointer or stationary jointers

1шт.

8

519155R1

CLAMP

CAP, colter support bar

1шт.

5/8 NUT

2шт.

5/8 x 3-1/4 CAP SCREW

2шт.

9

525443R1

BAR, colter and jointer support

1шт.

5/8 NUT

2шт.

5/8 x 3-1/4 CAP SCREW

2шт.

5/8 LOCK WASHER

2шт.

10

522433R11

LINK, landing adjusting

1шт.

3/4 NUT

1шт.

218443

NUT

3/4 JAM NUT

2шт.

3/4 LOCK WASHER

1шт.

25/32 x 1-1/2 x 11 GA WASHER

1шт.
